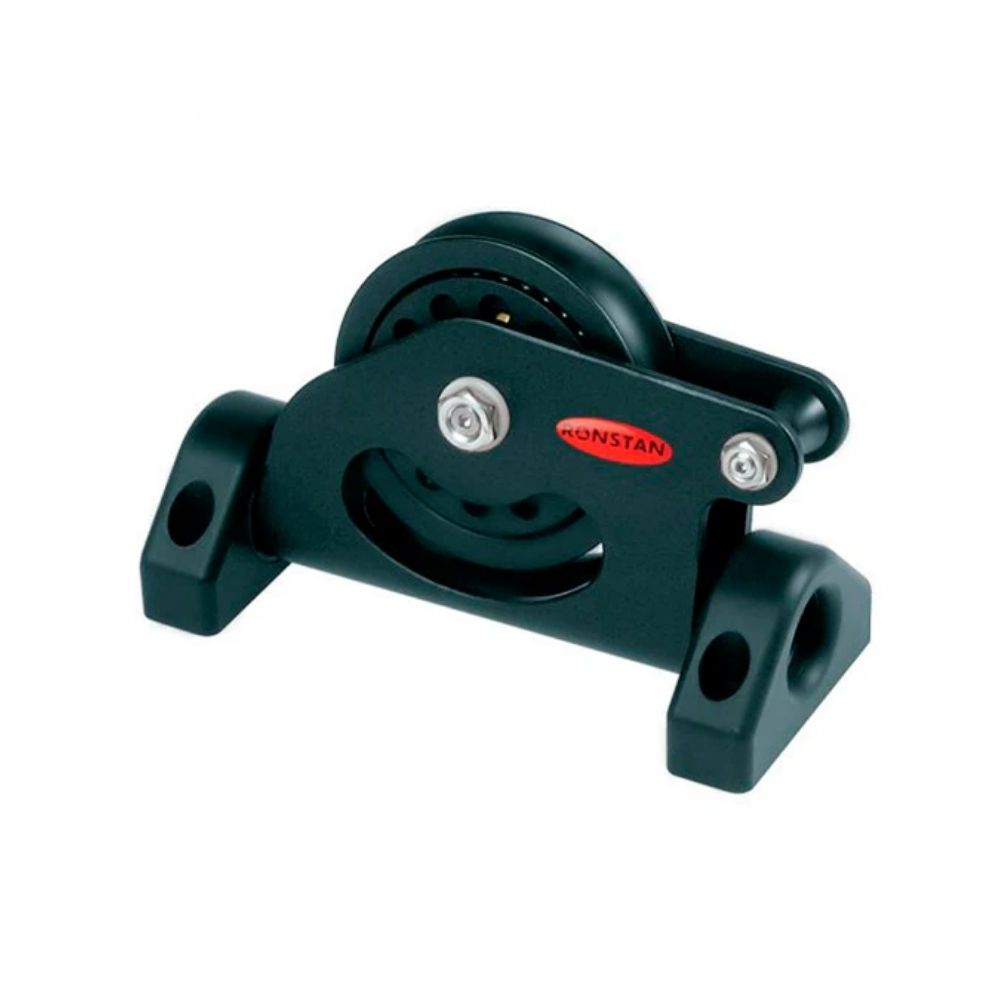

Ronstan Series 75 RB Block, Pivoting Low Lead (RF78174)

Name: Ronstan Series 75 RB Block, Pivoting Low Lead (RF78174)
Brand: Ronstan
SKU: RONRF78174
Price: 650.1 USD
Availability: InStock

SKU: RONRF78174 | Manuf. Code: RF78174

~~List Price: 764.00 USD~~

$650.10 USD

Worldwide Shipping Avalailable

SIMPLE returns & exchanges

PRICE MATCH guarantee

Knowledgeable STAFF

Description

Ball Bearing models have Torlon ® needle rollers for axial loads, and acetal ball bearings for side thrust loads.The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon ® roller needle bearings, while side thrust loads are taken up by Acetal ball bearings.

Our Part # RONRF78174 | Mfr. Part # RF78174

Features

High static and dynamic load capacity
Keeps lines close to the deck
Cheek cut-outs for easy bearing cleaning and maintenance
Blocks can be disassembled for servicing

Technical Information

Description	Imperial	Metric
Sheave Ø	3.00 in.	75.00 mm.
Maximum Rope	5/9 in.	14.00 mm.
Maximum Working Load	3858.75 lb.	1750.00 kg.
Breaking Load	7715.50 lb.	3500.00 kg.
Weight	16.58 oz.	470.00 gr.
