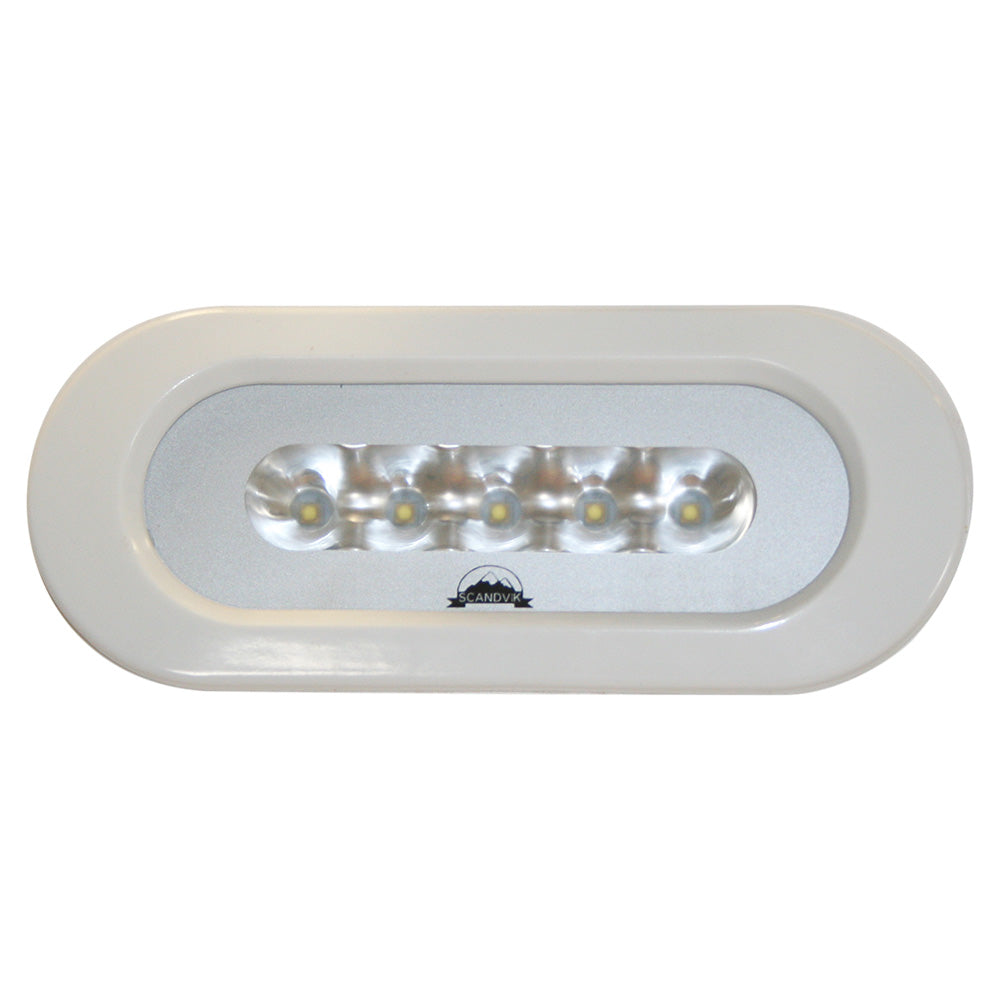

Flush Mount Spreader Light - 10-30V - White
This is a flush-mount spreader light with white trim.
Features:
- 12/24 V, 12W
- High-Quality Composition Frame
- Polycarbonate Lens
- UV Resistant
- Hidden Mounting Screws
- Cool white LED color (5,500 - 6,300K)
- Five 3 Watt Samsung 3535 LEDs
- 1,000 Lumens
- Equivalent to 120-watt halogen bulbs
- 0.8 Amp draw at 12 volts
- IP68
Specifications:
- Dimensions (W x H x D): 6 x 2-1/2 H x 1-3/4 in.
- Cutout (W x H): 4-1/2 x 1-1/2 in.
- LED Lifetime: 50,000 Hours
- LED Beam Angle: 110°
- The temperature of the LED: Less than 158° with a 77° ambient temperature
*The "P" within the part number indicates retail packaging
Our Part # SCA41343P | Mfr. Part # 41343P
FEATURES
FEATURES
- 12/24 V, 12W
- High-Quality Composition Frame
- Polycarbonate Lens
- UV Resistant
- Hidden Mounting Screws
- Cool white LED color (5,500 - 6,300K)
- Five 3 Watt Samsung 3535 LEDs
- 1,000 Lumens
- Equivalent to 120-watt halogen bulbs
- 0.8 Amp draw at 12 volts
- IP68
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Scandvik |
| Manufacturer part number | 41343P |
| Bulb Watts | 3 |
| LED | Yes |
| Dimensions (W x H x D) | 6 x 2-1/2 H x 1-3/4 in. |
| Cutout (W x H) | 4-1/2 x 1-1/2 in. |
| LED Lifetime | 50,000 Hours |
| LED Beam Angle | 110° |
| The temperature of the LED | Less than 158° with a 77° ambient temperature |
| Supplier technical detail | Flush Mount Spreader Light - 10-30V - White |
| Product-name configuration | 10-30V |
| Product-name configuration | White |
