Scout 9" Stubby White VHF Antenna w/Quick Mount Includes 5M RG...
DESCRIPTION
DESCRIPTION

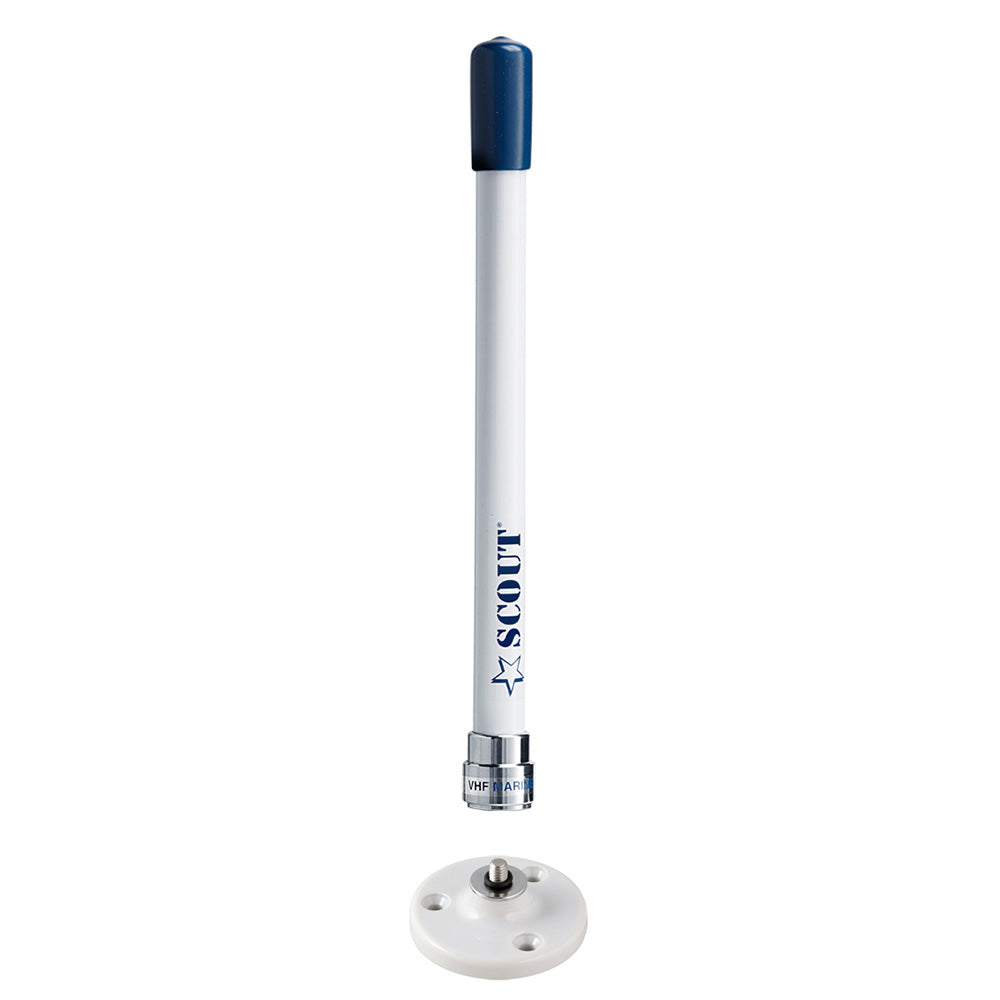

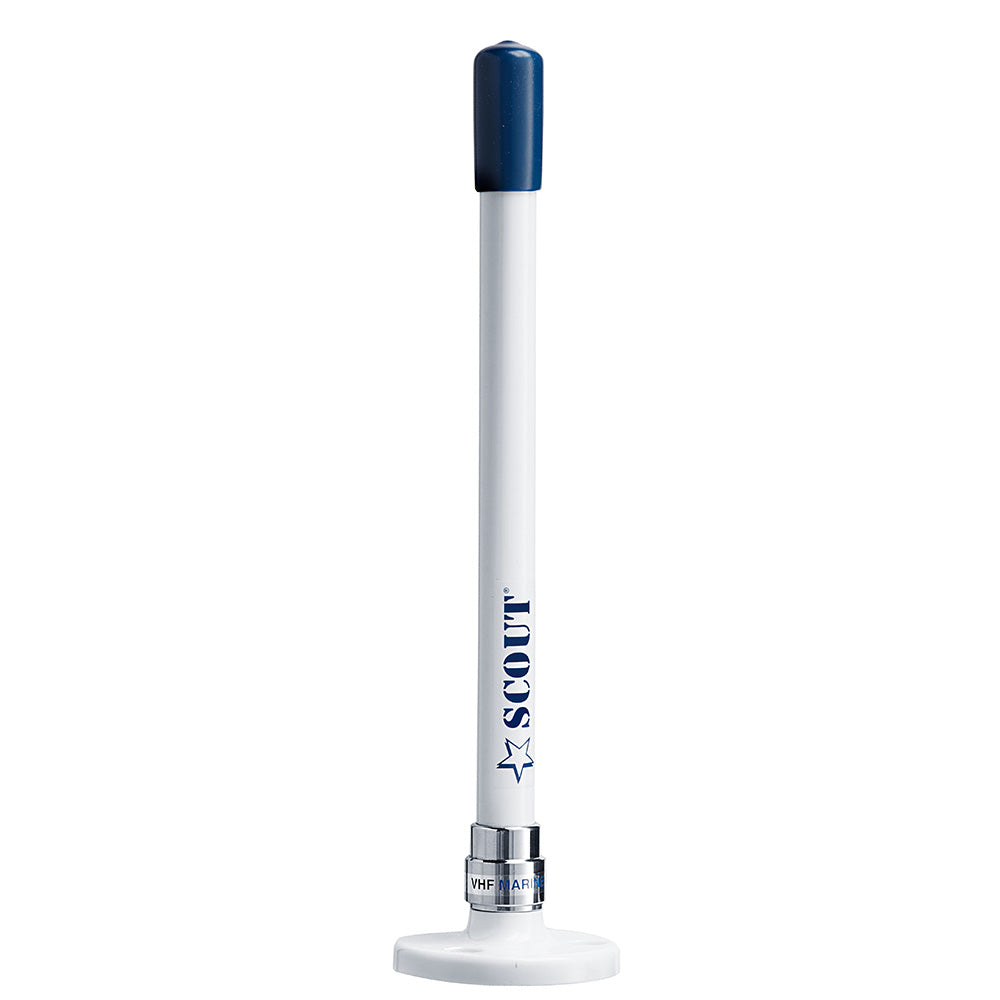

9" Stubby White VHF Antenna with Quick Mount Includes 5M RG-58, Mount & Integrated Connector KS-10
Fine technical construction, great design, and convenient size all in one: this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. The anti-UV filter avoids the deterioration of the coloring and keeps the antenna bright white.
The mount of the KS-10 (6 cm diameter) has been designed to allow an easy and quick installation on any type of flat surface, and the inner rubber gasket prevents leakage.
The antenna is supplied together with a 5 m (16’) RG-58 coax cable and PL-259 male connector.
Features:
- 100% waterproof antenna
- The fiberglass whip is easy to remove
- Waterproof mount included
- Fiberglass whip with anti-UV filter
- 22 cm length
- 5 m (16′) RG-58 CU MIL coaxial cable
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: Unity Gain
- Max power input: 50W
- DC ground: Yes
- Whip material: Fiberglass
- Cable: 5 m (16′) RG-58 CU MIL
- Mounting: Waterproof mount included
- Length: 22 cm (9″)
- Weight: 0,10 kg
Our Part # SCU-PF-AN-NVHF00025 | Mfr. Part # PF AN NVHF00025
FEATURES
FEATURES
- 100% waterproof antenna
- The fiberglass whip is easy to remove
- Waterproof mount included
- Fiberglass whip with anti-UV filter
- 22 cm length
- 5 m (16′) RG-58 CU MIL coaxial cable
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Scout |
| Manufacturer part number | PF AN NVHF00025 |
| Fine technical construction, great design, and convenient size all in one | this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. The anti-UV filter avoids the deterioration of the coloring and keeps the antenna bright white. |
| Frequency | 156-162 MHz |
| Impedance | 50 ohms |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | Unity Gain |
| Max power input | 50W |
| DC ground | Yes |
| Whip material | Fiberglass |
| Cable | 5 m (16′) RG-58 CU MIL |
| Mounting | Waterproof mount included |
| Length | 22 cm (9″) |
| Weight | 0,10 kg |
| Supplier application or construction detail | 9" Stubby White VHF Antenna with Quick Mount Includes 5M RG-58, Mount & Integrated Connector KS-10 |
| Supplier technical detail | Fine technical construction, great design, and convenient size all in one: this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. |
| Supplier technical detail | With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. |
| Supplier application or construction detail | The mount of the KS-10 (6 cm diameter) has been designed to allow an easy and quick installation on any type of flat surface, and the inner rubber gasket prevents leakage. |
| Size or rating stated in product name | 9" |
