DESCRIPTION
DESCRIPTION

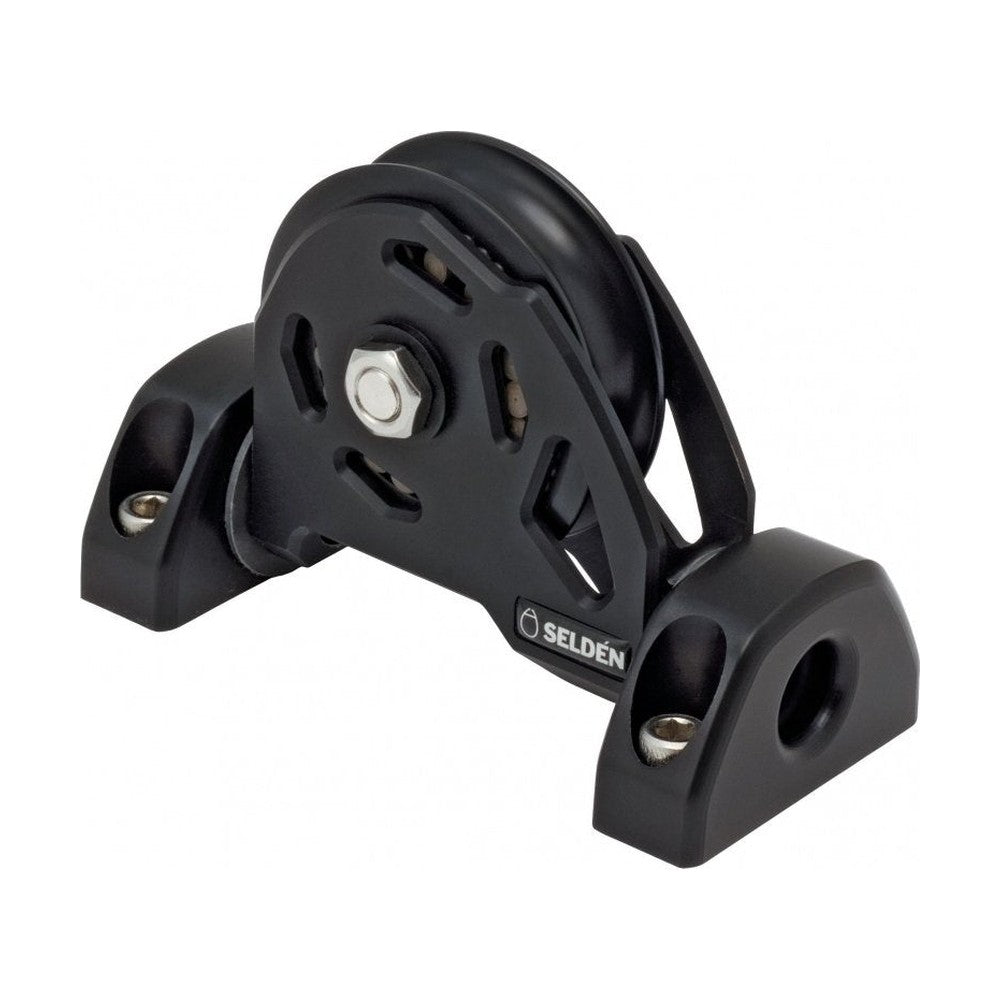

The RBB60 Flip-Flop Block is a compact, versatile 60 mm roller bearing block designed to lead lines from a vertical direction, over deck and back to the cockpit as with German sheeting.
The machined black anodized aluminium construction and Torlon® roller bearings ensure durability under high loads. The block includes polymer thrust bearings for side load resistance and a polymer washer to prevent corrosion between stainless and aluminium parts.
BlockType: flipflop,single
SubType: flipflop single
Breaking Load: 2700 kg
Safe working Load: 1350 kg
System: RBB60
Max line size: 12 mm
Mounting: 4xM6
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 10.97 oz. | 311.00 g. |
| Safe Working Load | 2976.24 lb. | 1350.00 kg. |
| Breaking Load | 5952.47 lb. | 2700.00 kg. |
| Max Line Size | 0.47 in. | 12.00 mm. |
