DESCRIPTION
DESCRIPTION

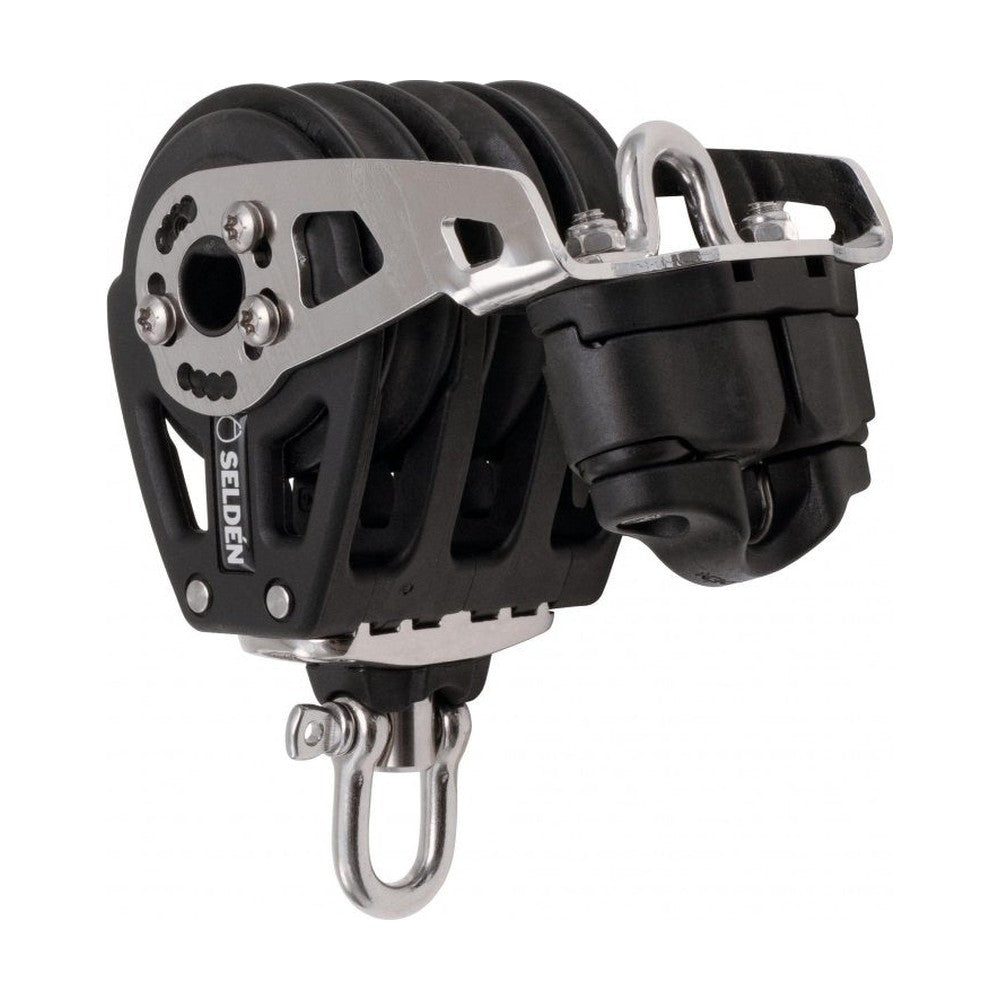

The BBB60 Triple Swivel Cam Block is a 60 mm ball bearing block with an integrated 38 mm composite cam cleat for quick adjustments and control. The cam cleat arm can be set to a variety of angles. The eye at the top of the cam cleat arm can be used as "dead-end" for a cascade.
The block is designed with a plastic washer acting as a swivel lock, enabling the shackle to be fixed in either 0° or 90°.
Delrin ball bearings and glass fiber reinforced cheeks ensure durability and low friction, making this block ideal for dynamic tackle applications.
Safe working Load: 600 kg
Breaking Load: 1200 kg
Max line size: 10 mm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 1.04 lb. | 473.00 g. |
| Safe Working Load | 1322.77 lb. | 600.00 kg. |
| Breaking Load | 2645.54 lb. | 1200.00 kg. |
| Max Line Size | 0.39 in. | 10.00 mm. |
