DESCRIPTION

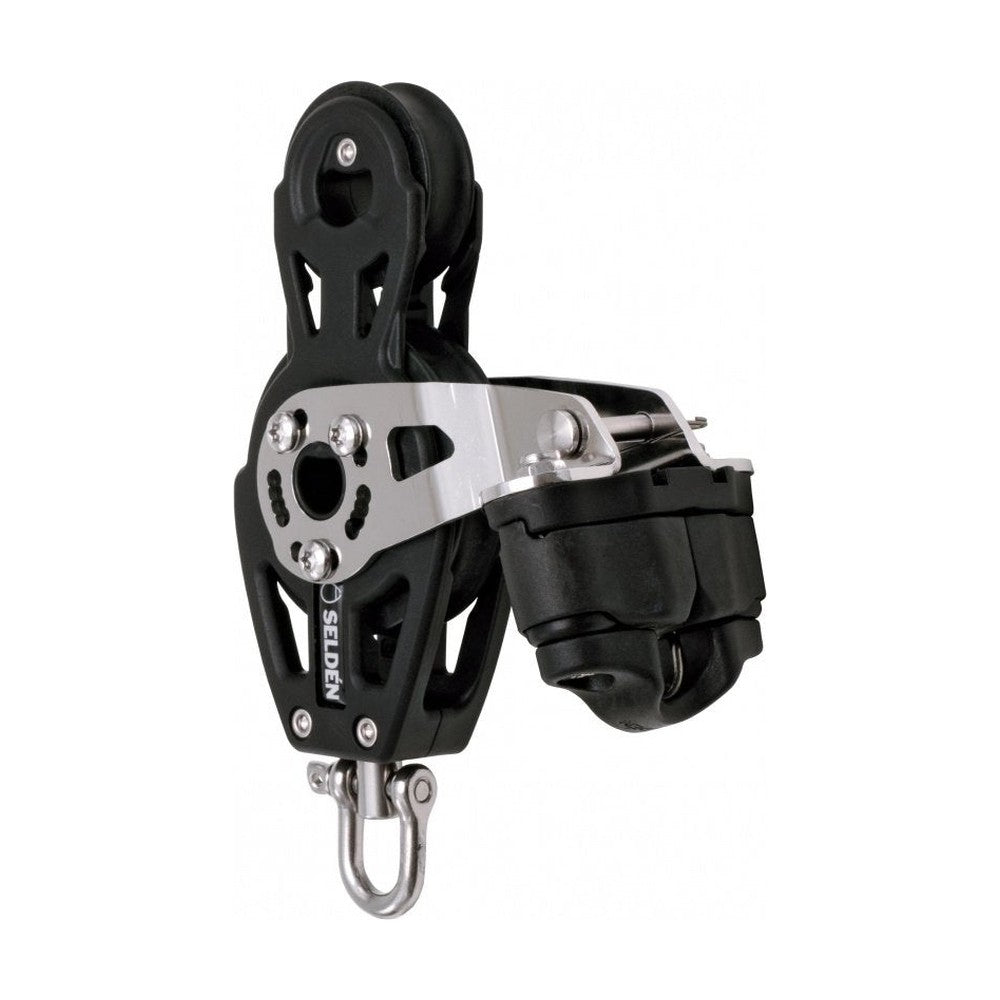

The BBB60 Fiddle Cam Block features a large 60 mm primary sheave, a smaller secondary sheave and an integrated 38 mm composite cam cleat for efficient line handling. The cam cleat arm can be set to a variety of angles.

A plastic washer acts as a swivel lock, allowing the shackle to be locked at 0° or 90°.

This block is constructed with glass fiber reinforced cheeks for strength and Delrin ball bearings for reduced friction. It is ideal for tackles where ease of adjustment and smooth operation are critical.

Safe working Load: 360 kg
Breaking Load: 720 kg
Max line size: 10 mm

TECHNICAL INFORMATION


DescriptionImperialMetric
Weight14.57 oz.413.00 g.
Safe Working Load793.66 lb.360.00 kg.
Breaking Load1587.33 lb.720.00 kg.
Max Line Size0.39 in.10.00 mm.
