DESCRIPTION
DESCRIPTION

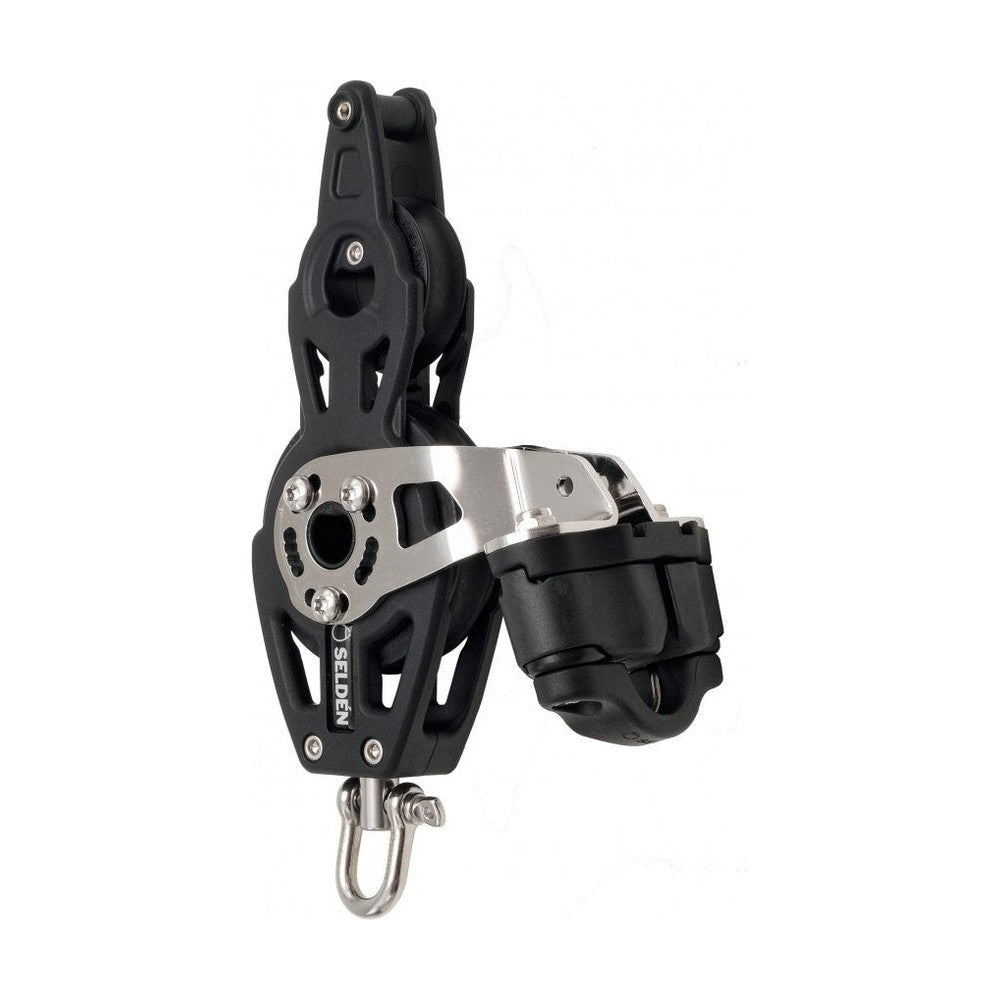

The BBB60 Fiddle Becket Cam Block is designed for versatile rigging solutions. It features a large 60 mm primary sheave, a smaller secondary sheave, a becket and an integrated 38 mm composite cam cleat. The cam cleat arm can be set to a variety of angles.
A plastic washer acts as a swivel lock, securing the shackle at either 0° or 90°.
The block's glass fiber reinforced cheeks provide high strength, while the Delrin ball bearings ensure smooth, low-friction performance under dynamic loads.
Safe working Load: 480 kg
Breaking Load: 960 kg
Max line size: 10 mm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 14.64 oz. | 415.00 g. |
| Safe Working Load | 1058.22 lb. | 480.00 kg. |
| Breaking Load | 2116.44 lb. | 960.00 kg. |
| Max Line Size | 0.39 in. | 10.00 mm. |
