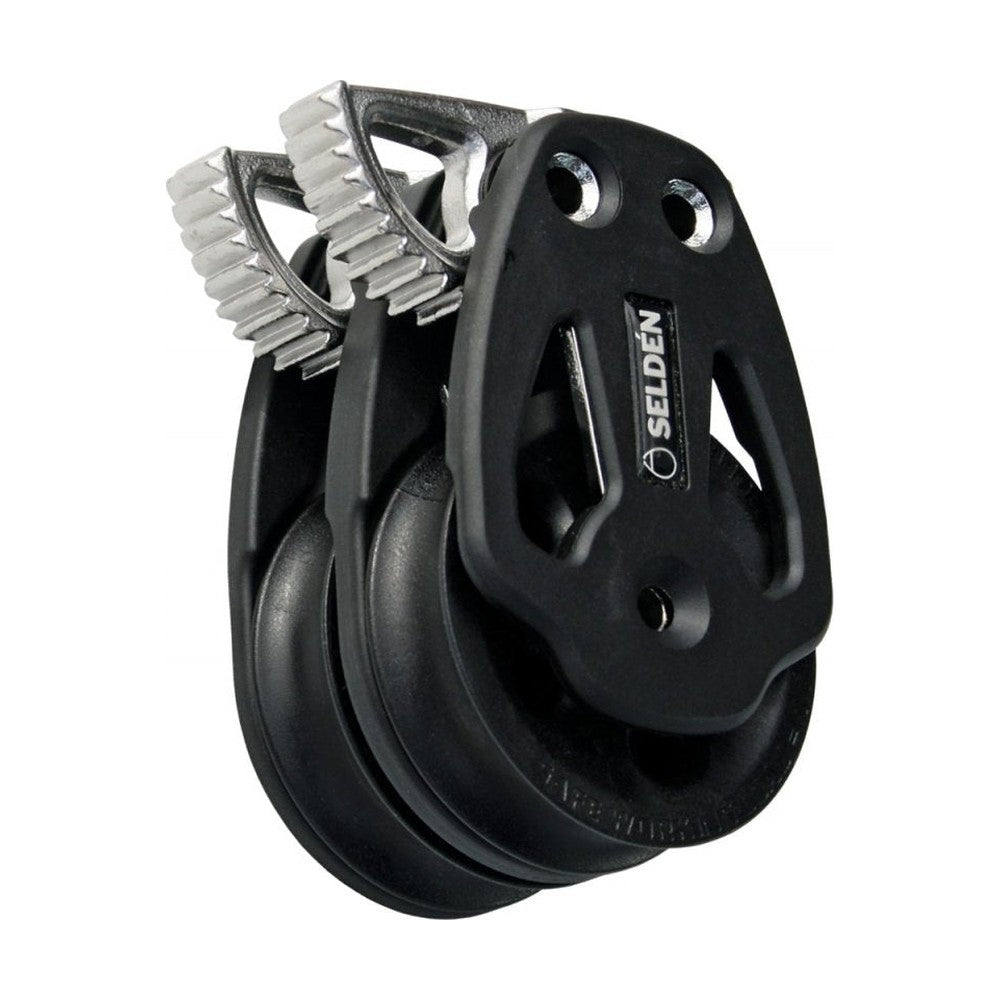

Selden 80 Plain Bearing Block - Double Cheek Quick Lock Counter Clockwise

SKU: sel-408-001-19r  |  Manuf. Code: 408-001-19R
List Price:  $348.00 USD
$295.80 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

The 80 mm Double Cheek Plain Bearing Block with Quick-Lock is designed to lead lines to winches and allow for them to be temporarily locked with spring-loaded locking arms. This way, the winch can be used for other purposes. Another typical application is to secure inactive spinnaker sheets / guys to prevent them to become unreeved.

The locking arms are spring-loaded to prevent accidential locking.

408-001-19R rotates anti-clockwise when tensioning the line.

It features glass fibre reinforced sheaves with polymer bushings, stainless steel strap for durability and glass fiber reinforced composite cheeks to prevent jamming.

BlockType: cheek,double,quicklock
SubType: cheek double quicklock
Breaking Load: 4000 kg
Safe working Load: 2000 kg
System: PBB80
Max line size: 16 mm
Upper breaking load: 10.00 kN
Upper safe working load: 20.00 kN
Mounting: 3xM8

TECHNICAL INFORMATION

DescriptionImperialMetric
Weight1.74 lb.787.00 g.
Safe Working Load4409.24 lb.2000.00 kg.
Breaking Load8818.48 lb.4000.00 kg.
Max Line Size0.63 in.16.00 mm.
