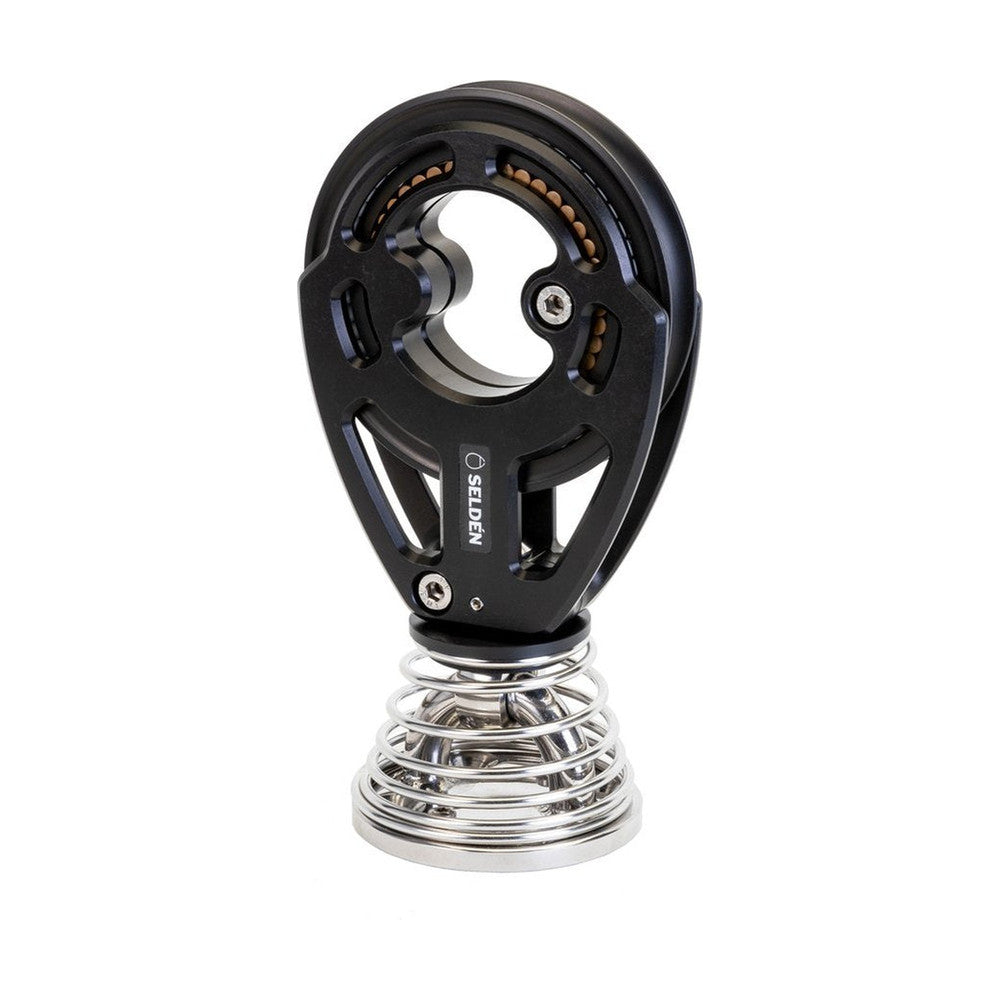

The RBB130 Single Stand-Up Block is designed for heavy-duty, high-load applications. Featuring a 130 mm sheave, the block is made from machined black anodized aluminium with Torlon® roller bearings for maximum performance under load.
The stainless stand-up base and spring ensures optimal positioning and polymer thrust bearings provide resistance to side loads. A polymer washer insulates stainless steel from aluminium to prevent corrosion.
Ideal for spinnaker sheets, halyards and backstay control in applications where stability and quick adjustments are key.
Breaking Load: 10000 kg
Safe working Load: 5000 kg
System: RBB130
Max line size: 18 mm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 3.66 lb. | 1.66 kg. |
| Safe Working Load | 11023.10 lb. | 5000.00 kg. |
| Breaking Load | 22046.20 lb. | 10000.00 kg. |
| Max Line Size | 0.71 in. | 18.00 mm. |
