DESCRIPTION

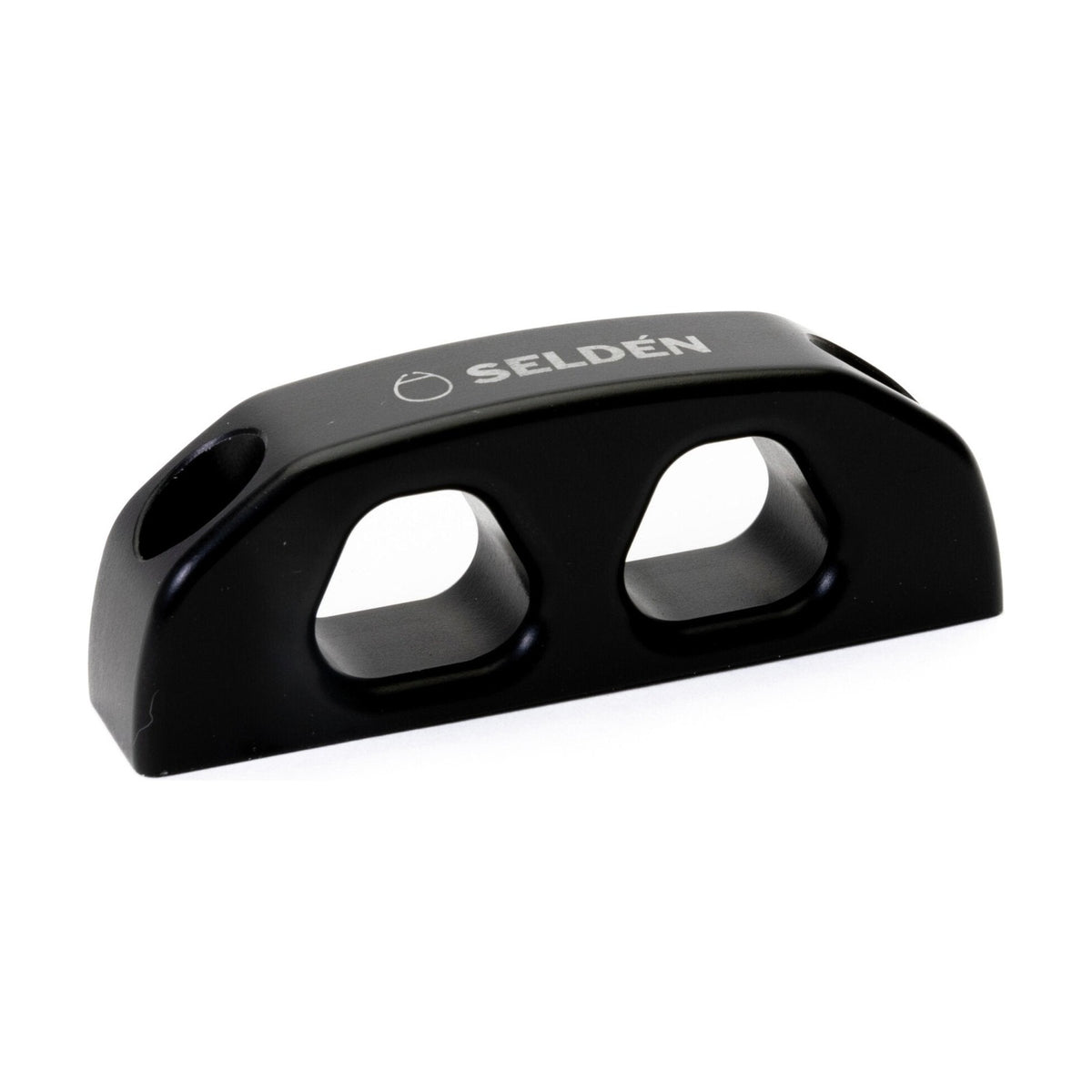

Made of machined and hard anodized aluminium, this lead is ideal to lead two sheets aft to winches in the cockpit.

Well rounded and kind to the lines.

Use M6 screws for the installation, c-c between holes is 58 mm.

Breaking Load: 1400 kg
Safe working Load: 700 kg
Max line size: 12
Length: 75.00
Width: 17.00
Height: 26.00
Fasteners: 2xM6 screws
Hole Spacing c-c: 58 mm

TECHNICAL INFORMATION


DescriptionImperialMetric
Weight1.69 oz.48.00 g.
Safe Working Load1543.23 lb.700.00 kg.
Breaking Load3086.47 lb.1400.00 kg.
