DESCRIPTION
DESCRIPTION

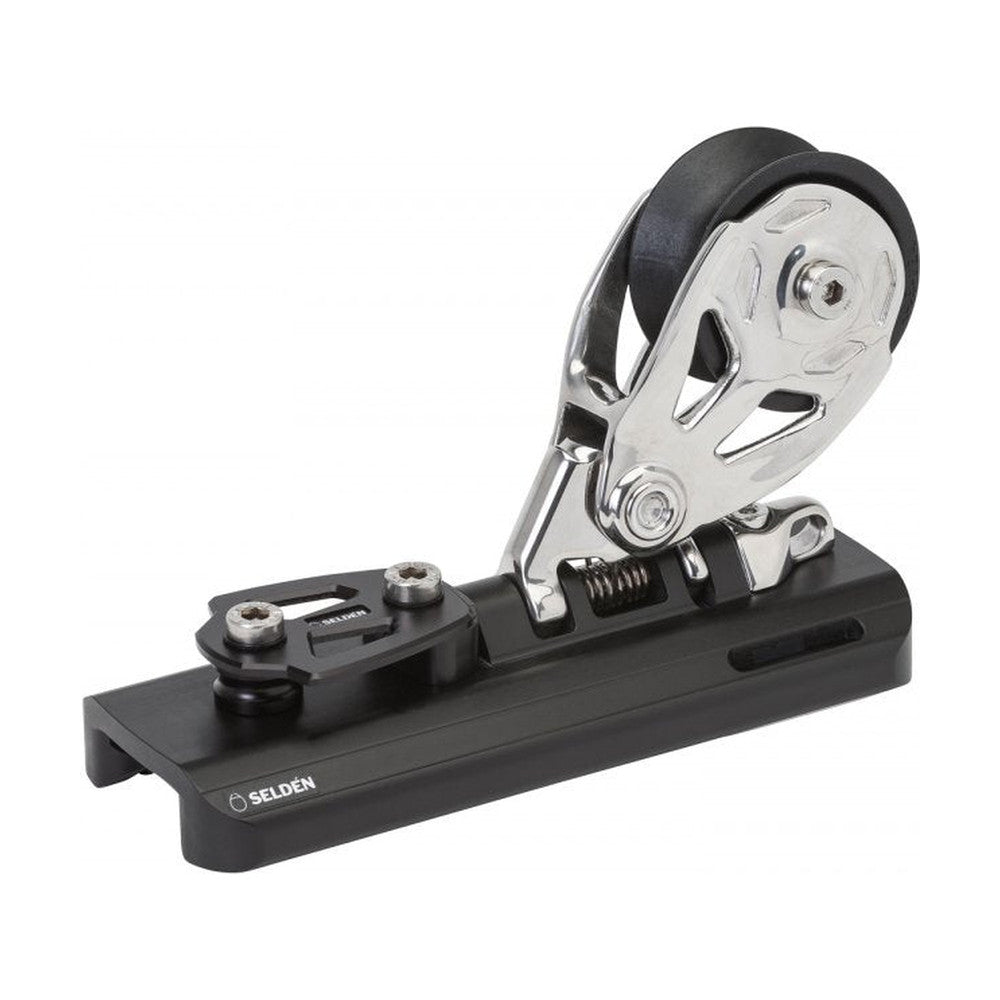

The System 30 Performance Lead Genoa Car is designed with a becket for connection to a car further forward on the track. The car is anodized aluminium with Torlon Ball Bearings and a ø60 mm V-shaped Acetal sheave in a stainless sheave holder supported by a stainless spring stand up.
The set-up simplifies sail changes in racing conditions. Two cars connected on a long track allow the new sheet to be set and the car correctly positioned before sail changes. A cable or line connects the cars. Genoa lead car with becket, 443-350-03, connects to all System 30 Performance genoa cars.
System: 30p
Safe working Load: 1500 kg
Breaking Load: 3000 kg
Pinstop: 0
Length: 190 mm
Width: 75 mm
Min Rv: 5500 mm
Min Rh: 5500 mm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Weight | 3.60 lb. | 1.63 kg. |
| Safe Working Load | 3306.93 lb. | 1500.00 kg. |
| Breaking Load | 6613.86 lb. | 3000.00 kg. |
| Length | 7.48 in. | 190.00 mm. |
| Width | 2.95 in. | 75.00 mm. |
