DESCRIPTION

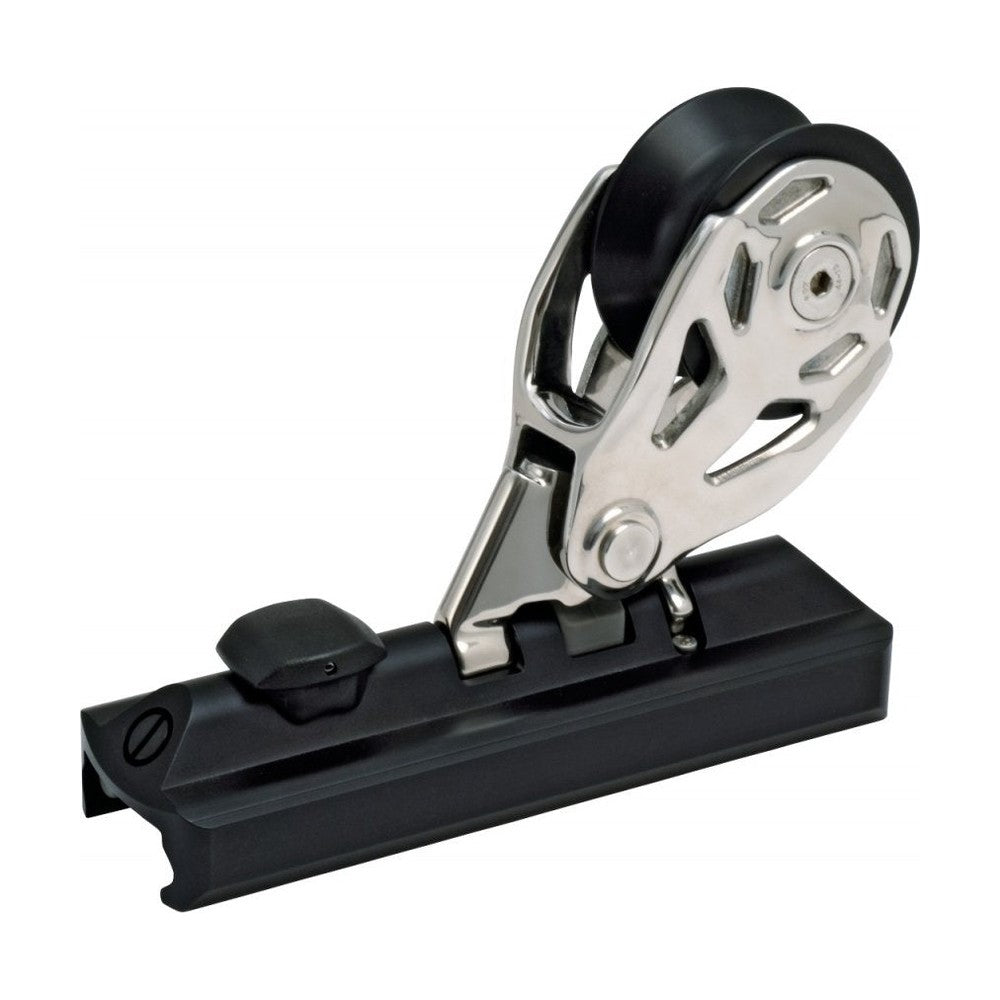

The Genoa Sheet Car 42 is black anodized aluminium with a spring loaded Pin-stop function. The ø80 mm V-shaped composite sheave sits in a stainless sheave holder supported by a rubber stand up.

System: 42
SubType: pinstop
Safe working Load: 2750 kg
Breaking Load: 5500 kg
Pinstop: 1
Purchase: 0 (N:1)
Length: 220 mm
Width: 69 mm

TECHNICAL INFORMATION


DescriptionImperialMetric
Weight4.78 lb.2.17 kg.
Safe Working Load6062.70 lb.2750.00 kg.
Breaking Load12125.41 lb.5500.00 kg.
Length8.66 in.220.00 mm.
Width2.72 in.69.00 mm.
