DESCRIPTION

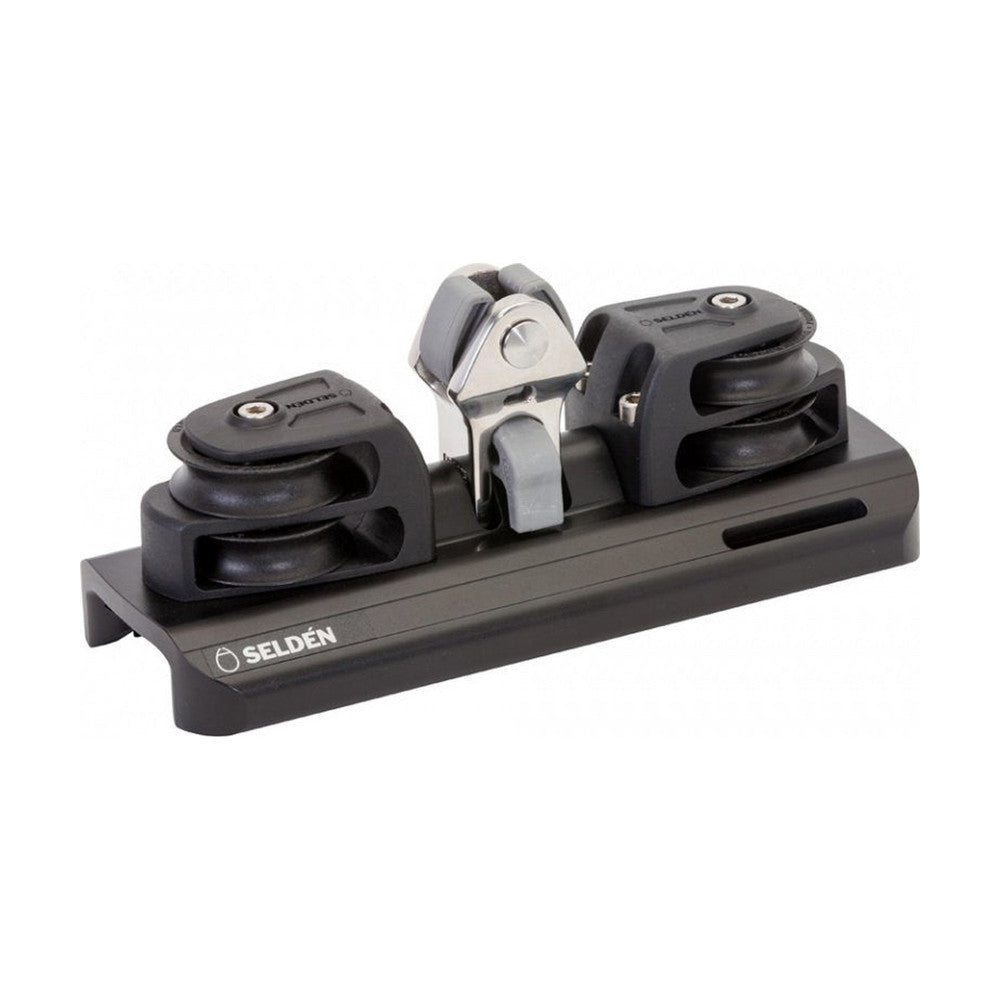

System 42 Main Car features Torlon ball bearings and a stainless toggle with rubber stabiliser for PBB80 and RBB80 blocks. The car is black anodized aluminium and the four ø50 mm plain bearing sheaves allow for 4:1 purchase of the control lines.

System: 42
SubType: toggle
Safe working Load: 2500 kg
Breaking Load: 5000 kg
Purchase: 4
Max control line Ø: 10 mm
Length: 236 mm
Width: 96 mm
Min Rv: 10000 mm
Min Rh: 10000 mm

TECHNICAL INFORMATION


DescriptionImperialMetric
Weight5.67 lb.2.57 kg.
Safe Working Load5511.55 lb.2500.00 kg.
Breaking Load11023.10 lb.5000.00 kg.
Length9.29 in.236.00 mm.
Width3.78 in.96.00 mm.
