Selden Plain Bearing Block - 80 mm High Load (408-101-01R)

SKU: SEL40810101R | Manuf. Code: 408-101-01R

~~List Price: 209.00 USD~~

$169.90 USD

You Save $40 This Week!

Worldwide Shipping Avalailable

SIMPLE returns & exchanges

PRICE MATCH guarantee

Knowledgeable STAFF

Description

These blocks are optimised for wires or Dyneema/Spectra core.

Stainless steel, electro polished cheeks, anodised aluminium sheave and polymer plain bearing bushing.
Outer side plates to increase breaking load — but still optimising the weight. For PBB 60/80/100/130.
Two polyamide washers on pin/ bushing to reduce play between wire terminal and cheeks.

Our Part # SEL40810101R | Selden Part # 408-101-01R

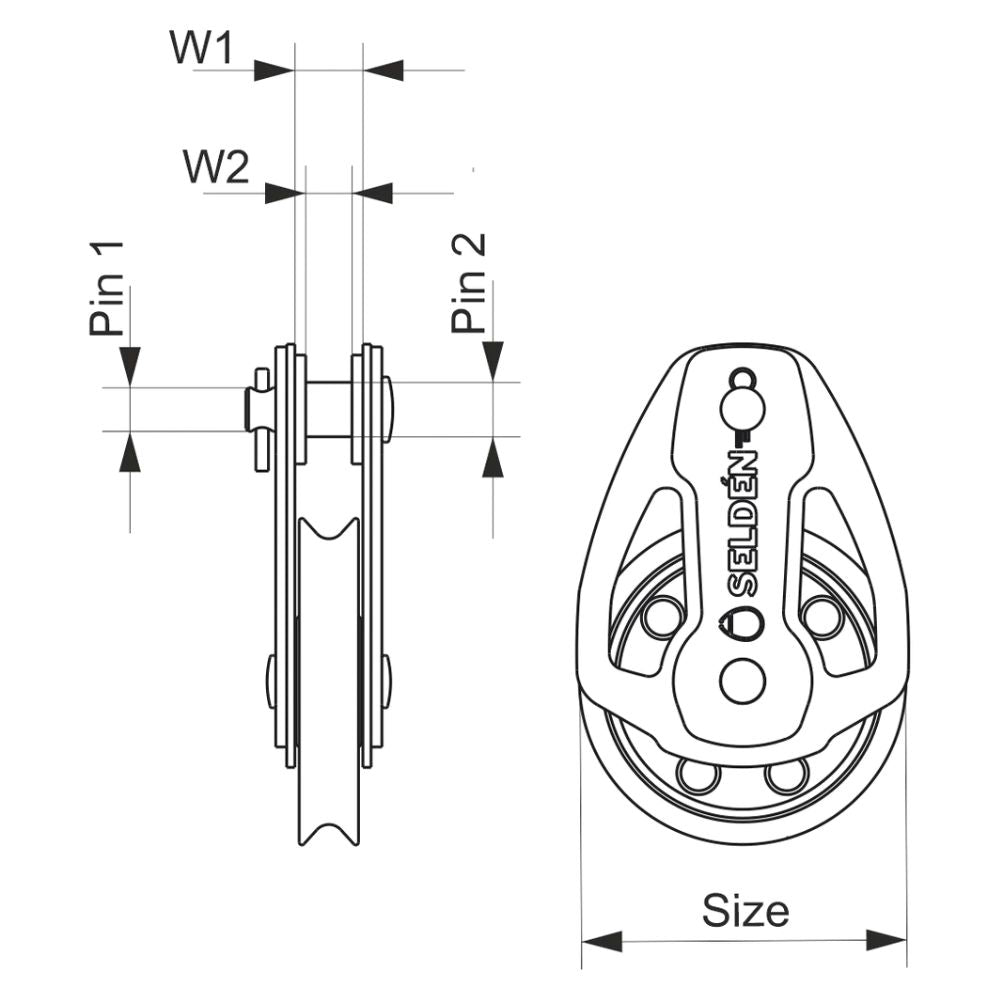

Technical Information

SubType: single
Size: 80
SWL: 2750 kg
W1: 15.50
W2: 10.70
Pin1: 12.70
Breaking Load (kN): 5500 kg
MaxBackstayW: 8 mm
MaxSheaveW: 7 mm
