Selden 100 Plain Bearing Block - Cheek (410-001-15R)
Selden 100 Plain Bearing Block - Cheek (410-001-15R) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Selden 100 Plain Bearing Block - Cheek (410-001-15R)
Description
Description

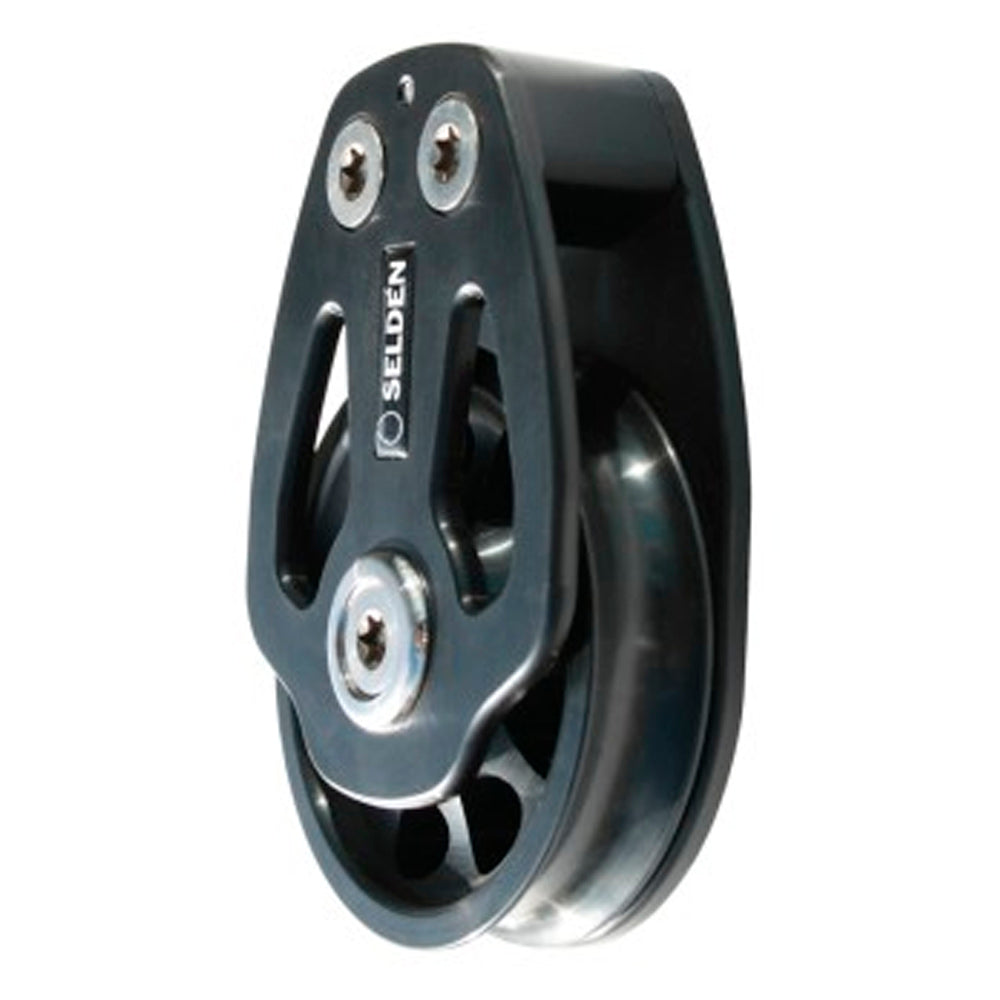

The Selden 100 Plain Bearing Block - Cheek (410-001-15R) is designed for up to 4-ton working load, featuring a plain bearing with polymer bushing and two axial Delrin® thrust bearings for stability. It includes a machined, black anodized aluminium sheave and cheeks, with stainless parts insulated from aluminium to prevent corrosion. Ideal for guiding sheets to a winch. The block is easy to install on deck with 3 x M10 screws and simple to maintain. Perfect for high-performance, high-load applications.
Our Part # SEL41000115R | Mfr. Part # 410-001-15R
Technical Information
Technical Information
Type: Single Cheek
Weight: 744 g
Safe Working Load: 4000 kg
Breaking Load: 8000 kg
Width: 20 mm
Mounting: 3xM10
