Selden Nail Terminal Kit for ø13 mm AT-Cable, CXr25, CX25, CXe25(includes 1 Terminal and 8 Nails)

SKU: SEL301-306-01  |  Manuf. Code: 301-306-01
List Price:  $115.00 USD
$97.95 USD
15% off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

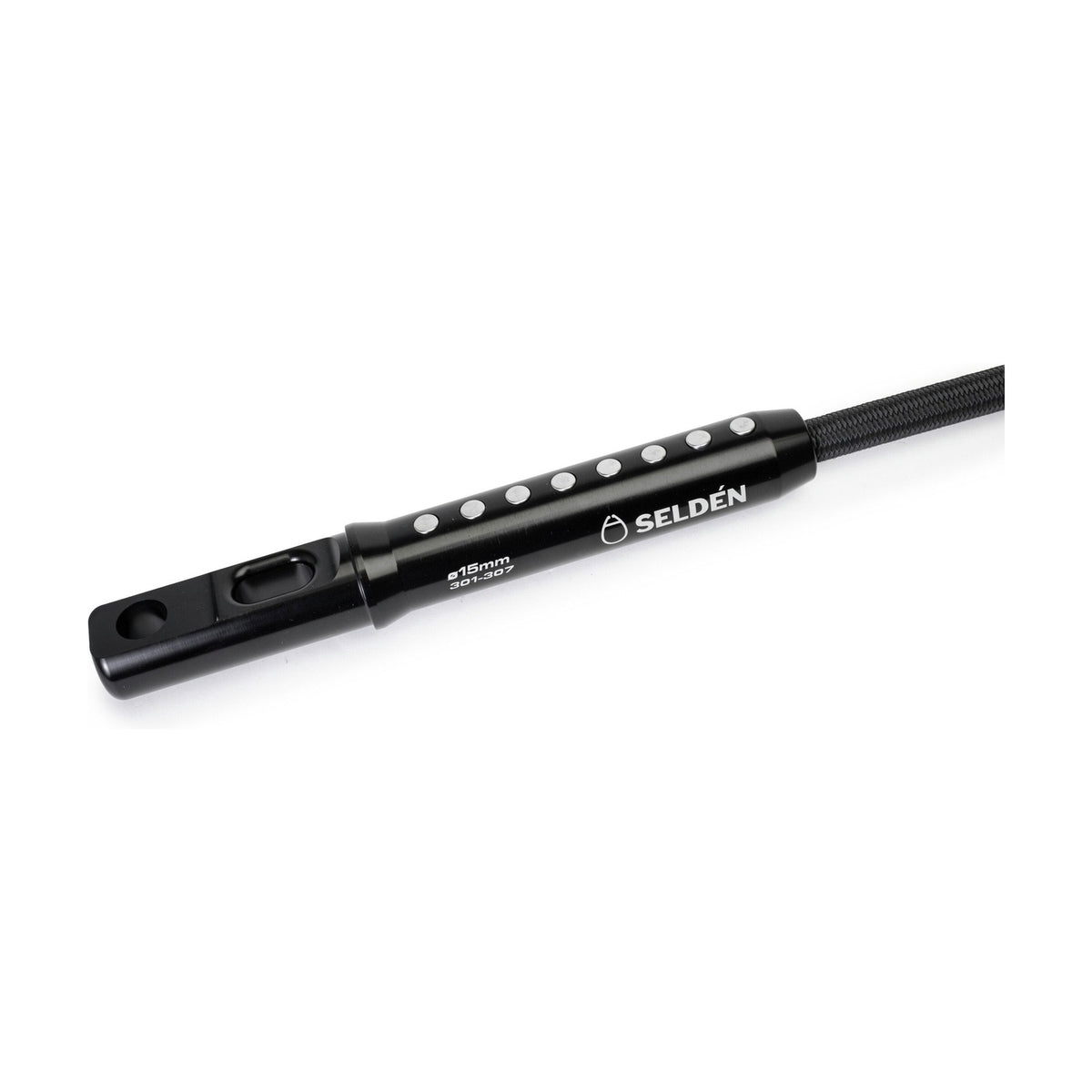

Seldén’s Nail Terminal is a solution for Anti-Torsion cables, developed to enable quick, safe, and reliable assembly of Code 0 furling systems Machined from anodized aluminium, the terminal features a female fitting into which the AT-cable is inserted. Sharp, hardened stainless steel nails are then driven through the terminal and the ATcable—either with a vise or by hammering—securing the assembly in place

FEATURES

  • Thanks to the use of specially designed nails, the Dyneema® fibers in the cable remain undamaged, ensuring that the load-bearing capability and torsional rigidity of the AT-cable is fully preserved.
  • Check out the video and the manual.
  • https://vimeo.com/1145171852?fl=pl&fe=sh.
  • https://support.seldenmast.com/files/1758209260/597-633-E.pdf.
  • D: 26.00 mm L: 184 mm W: 20.00 mm X: 24 mm Y: 15 mm CCL: 64 mm Hole: 16.40 mm SL: 22 mm SW: 11 mm AT Cable: 13 mm SWL: 2500 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
D1.02 in26 mm
L7.24 in184 mm
W0.79 in20 mm
X0.94 in24 mm
Y0.59 in15 mm
CCL2.52 in64 mm
Hole0.65 in16.4 mm
SL0.87 in22 mm
SW0.43 in11 mm
AT Cable0.51 in13 mm
SWL18,439.05 lbf-ft25 kNm
BodyTypeNormalNormal
Weight7.48 oz.212.00 g.
Safe Working Load5511.55 lb.2500.00 kg.
