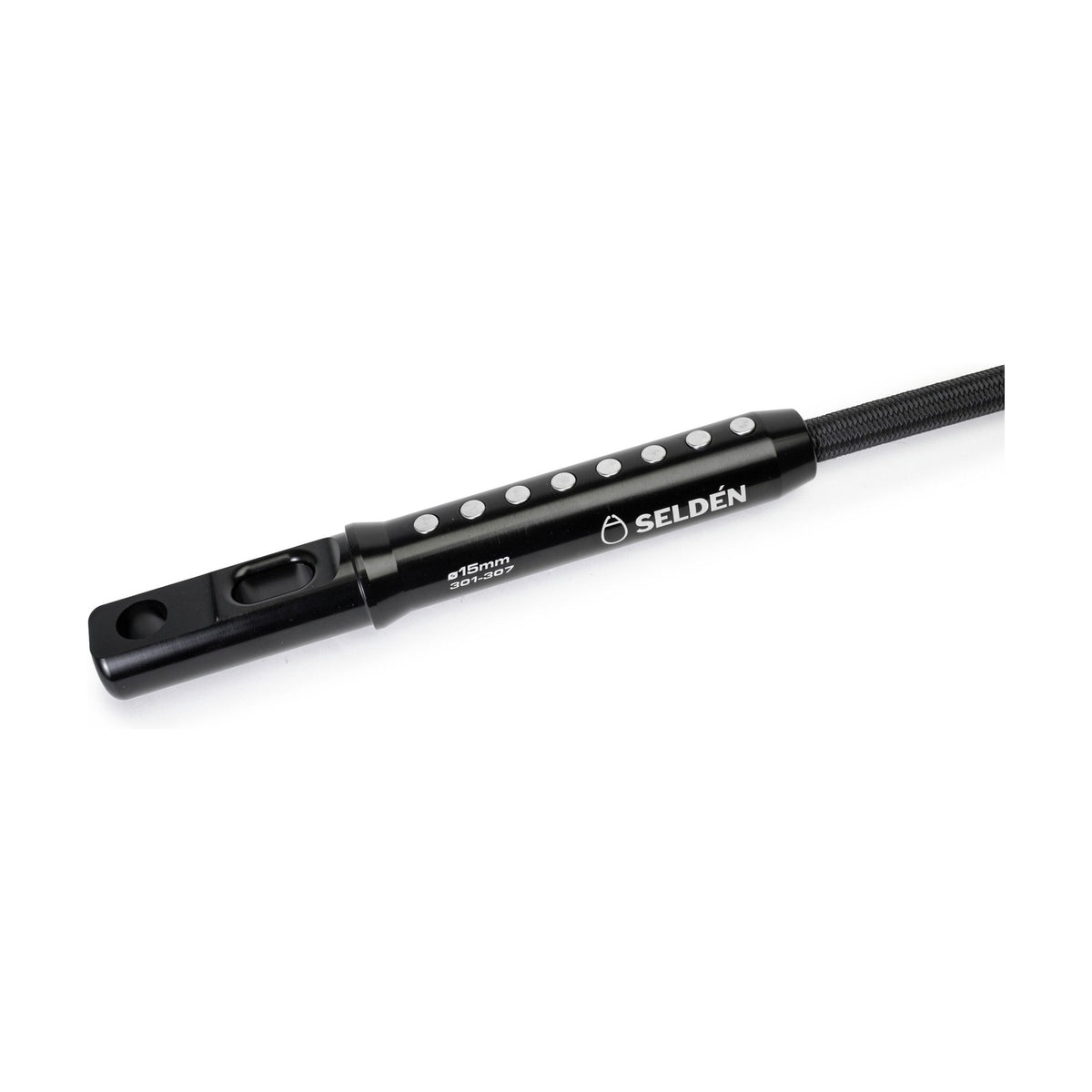

Selden Nail Terminal Kit for ø15 mm AT-Cable, CXr45, CX45, CXe45(includes 1 Terminal and 9 Nails)

SKU: SEL301-307-01  |  Manuf. Code: 301-307-01
List Price:  $150.00 USD
$127.00 USD
15% off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén’s Nail Terminal is a solution for Anti-Torsion cables, developed to enable quick, safe, and reliable assembly of Code 0 furling systems Machined from anodized aluminium, the terminal features a female fitting into which the AT-cable is inserted. Sharp, hardened stainless steel nails are then driven through the terminal and the ATcable—either with a vise or by hammering—securing the assembly in place

FEATURES

  • Thanks to the use of specially designed nails, the Dyneema® fibers in the cable remain undamaged, ensuring that the load-bearing capability and torsional rigidity of the AT-cable is fully preserved.
  • Check out the video and the manual.
  • https://vimeo.com/1145171852?fl=pl&fe=sh.
  • https://support.seldenmast.com/files/1758209260/597-633-E.pdf.
  • D: 30.00 mm L: 235 mm W: 20.50 mm X: 31 mm Y: 17 mm CCL: 76 mm Hole: 12.40 mm SL: 25 mm SW: 13 mm AT Cable: 15 mm SWL: 4500 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
D1.18 in30 mm
L9.25 in235 mm
W0.81 in20.5 mm
X1.22 in31 mm
Y0.67 in17 mm
CCL2.99 in76 mm
Hole0.49 in12.4 mm
SL0.98 in25 mm
SW0.51 in13 mm
AT Cable0.59 in15 mm
SWL33,190.29 lbf-ft45 kNm
BodyTypeNormalNormal
Weight13.51 oz.383.00 g.
Safe Working Load9920.79 lb.4500.00 kg.
