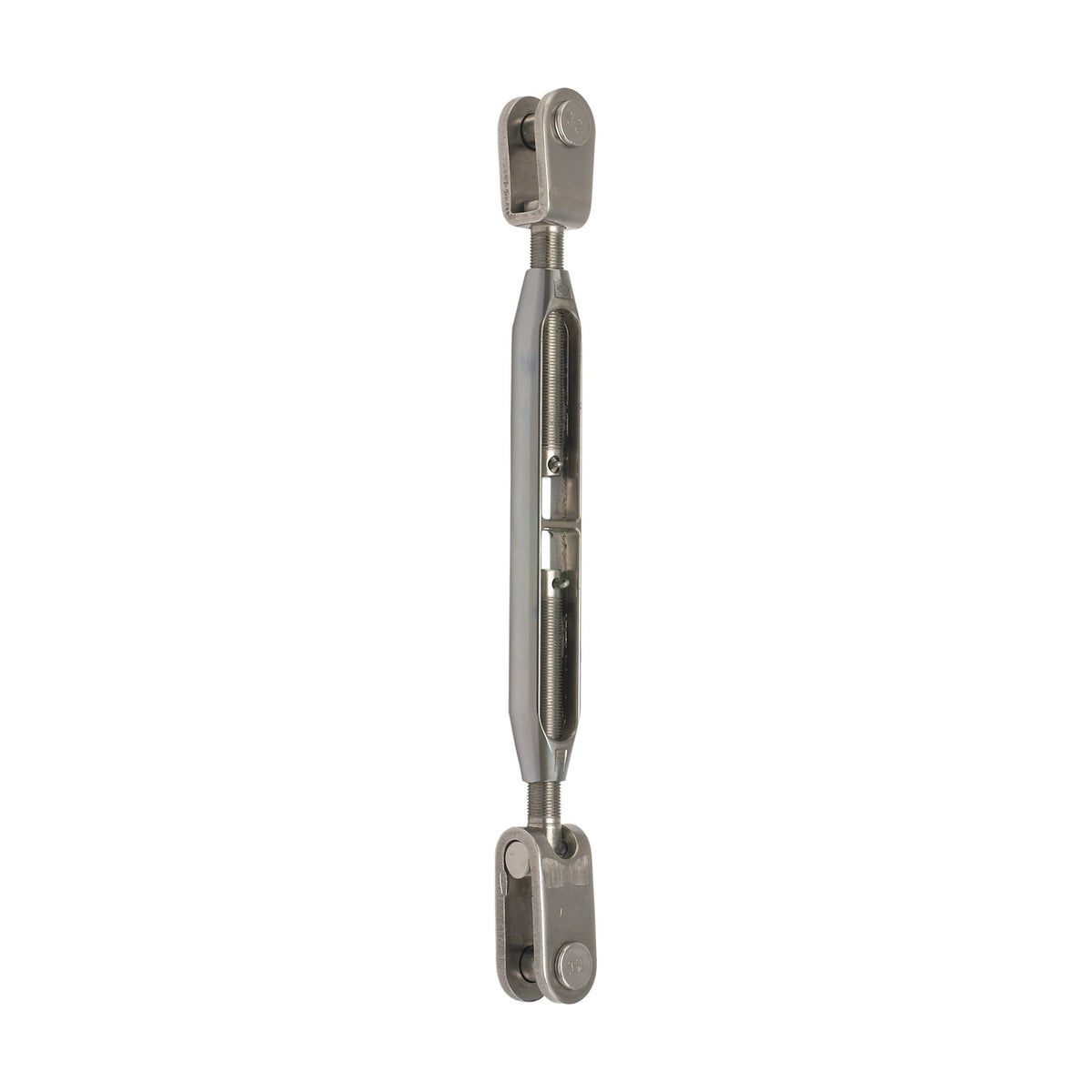

Selden Turnbuckle - Bronze Body, Stainless Terminals, 3/4", Fork/Toggle, ø16 mm Clevis Pin

SKU: SEL174-327-13  |  Manuf. Code: 174-327-13
List Price:  $549.00 USD
$505.00 USD
You save $44 off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Turnbuckle with Fork/Toggle terminals, thread size 3/4", to be combined with ø12 mm wire applications. The combination of a chrome plated aluminium bronze body and high-grade marine stainless steel terminals ensures high durability, corrosion resistance, and optimal performance for tuning your rig according to Seldén's specifications Thread size: 3/4" Clevis pin Ø: 15.80 mm L-MIN: 412 mm L-MAX: 620 mm W: 22.00 mm H: 32.00 mm X: 39 mm W2: 22.00 mm H2: 41.00 mm X2: 41 mm Breaking Load: 12500 kg

FEATURES

  • Thread size: 3/4" Clevis pin Ø: 15.80 mm L-MIN: 412 mm L-MAX: 620 mm W: 22.00 mm H: 32.00 mm X: 39 mm W2: 22.00 mm H2: 41.00 mm X2: 41 mm Breaking Load: 12500 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size3/4"3/4"
Clevis pin Ø0.62 in15.8 mm
L MIN16.22 in412 mm
L MAX24.41 in620 mm
W0.87 in22 mm
H1.26 in32 mm
X1.54 in39 mm
W20.87 in22 mm
H21.61 in41 mm
X21.61 in41 mm
Breaking Load27,557.75 lb12,500 kg
Weight5.05 lb.2.29 kg.
Clevis Pin0.62 in.15.80 mm.
L-MIN16.22 in.412.00 mm.
L-MAX24.41 in.620.00 mm.
