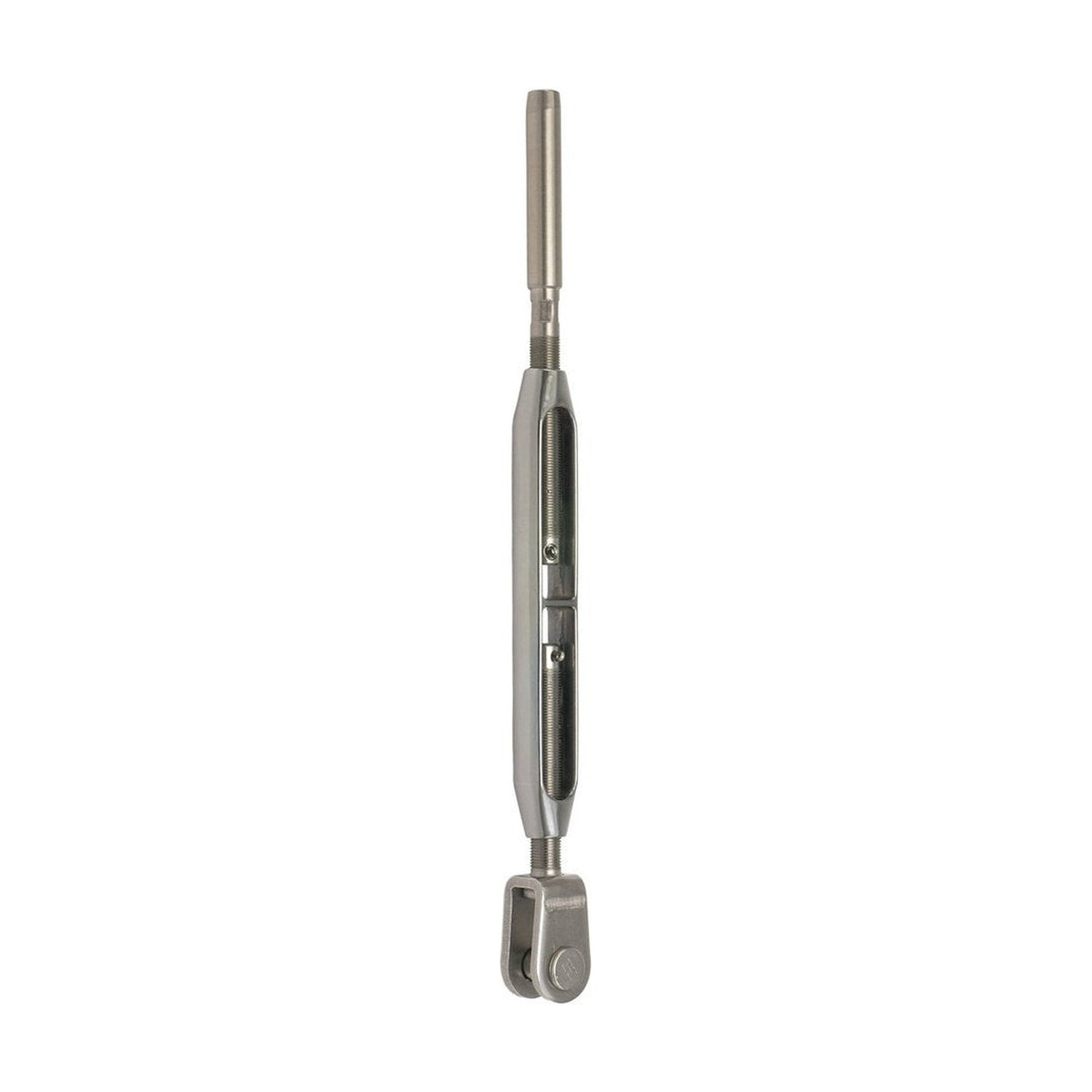

Selden Turnbuckle - Bronze Body, Stainless Terminals, 1/2", ø7 mm Swage Terminal/Fork, ø13 mm Clevis Pin

SKU: SEL174-325-05  |  Manuf. Code: 174-325-05
List Price:  $227.00 USD
$210.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Wire diam: 7 mm Thread size: 1/2" Clevis pin Ø: 13.00 mm L-MIN: 266 mm L-MAX: 414 mm W: 14.50 mm H: 25.00 mm X: 28 mm Breaking Load: 6200 kg

FEATURES

  • Wire diam: 7 mm (0.28 in).
  • Thread size: 1/2".
  • Clevis pin Ø: 13 mm (0.51 in).
  • L MIN: 266 mm (10.47 in).
  • L MAX: 414 mm (16.3 in).
  • W: 14.5 mm (0.57 in).
  • H: 25 mm (0.98 in).
  • X: 28 mm (1.1 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Wire diam0.28 in7 mm
Thread size1/2"1/2"
Clevis pin Ø0.51 in13 mm
L MIN10.47 in266 mm
L MAX16.3 in414 mm
W0.57 in14.5 mm
H0.98 in25 mm
X1.1 in28 mm
Breaking Load13,668.64 lb6,200 kg
Weight1.38 lb.628.00 g.
Clevis Pin0.51 in.13.00 mm.
Wire Diameter0.28 in.7.00 mm.
L-MIN10.47 in.266.00 mm.
L-MAX16.30 in.414.00 mm.
