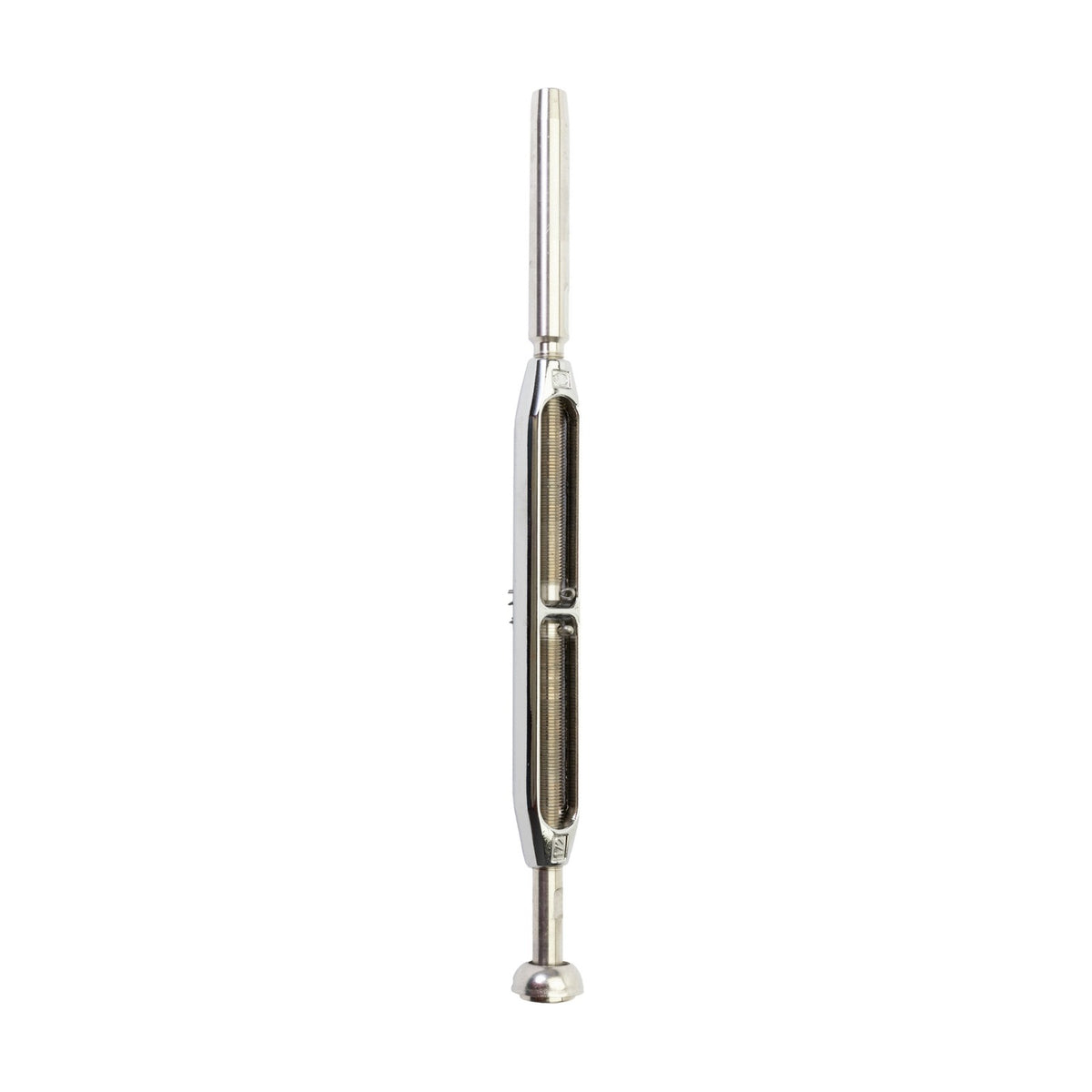

Selden Turnbuckle - Bronze Body, Stainless Terminals, 1/2", ø8 mm Swage Terminal/Fork, ø13 mm Clevis Pin

SKU: SEL174-325-06  |  Manuf. Code: 174-325-06
List Price:  $273.00 USD
$250.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Turnbuckle with swaged stud/Fork terminals, thread size 1/2"", to be combined with ø7 or ø8 mm wire applications. Bronze, like stainless steel, is very strong and highly resistant to corrosion. By making the body of the turnbuckle in chrome plated aluminium bronze and the terminals in high grade marine stainless steel, we have reduced the risk of the thread seizing up under heavy loads. A design feature which allows you to tune your rig as per Seldén's guidelines Wire diam: 8 mm Thread size: 1/2" Clevis pin Ø: 13.00 mm L-MIN: 261 mm L-MAX: 409 mm W: 14.50 mm H: 25.00 mm X: 28 mm Breaking Load: 6200 kg

FEATURES

  • Wire diam: 8 mm Thread size: 1/2" Clevis pin Ø: 13.00 mm L-MIN: 261 mm L-MAX: 409 mm W: 14.50 mm H: 25.00 mm X: 28 mm Breaking Load: 6200 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
Wire diam0.31 in8 mm
Thread size1/2"1/2"
Clevis pin Ø0.51 in13 mm
L MIN10.28 in261 mm
L MAX16.1 in409 mm
W0.57 in14.5 mm
H0.98 in25 mm
X1.1 in28 mm
Breaking Load13,668.64 lb6,200 kg
Weight1.45 lb.657.00 g.
Clevis Pin0.51 in.13.00 mm.
Wire Diameter0.31 in.8.00 mm.
L-MIN10.28 in.261.00 mm.
L-MAX16.10 in.409.00 mm.
