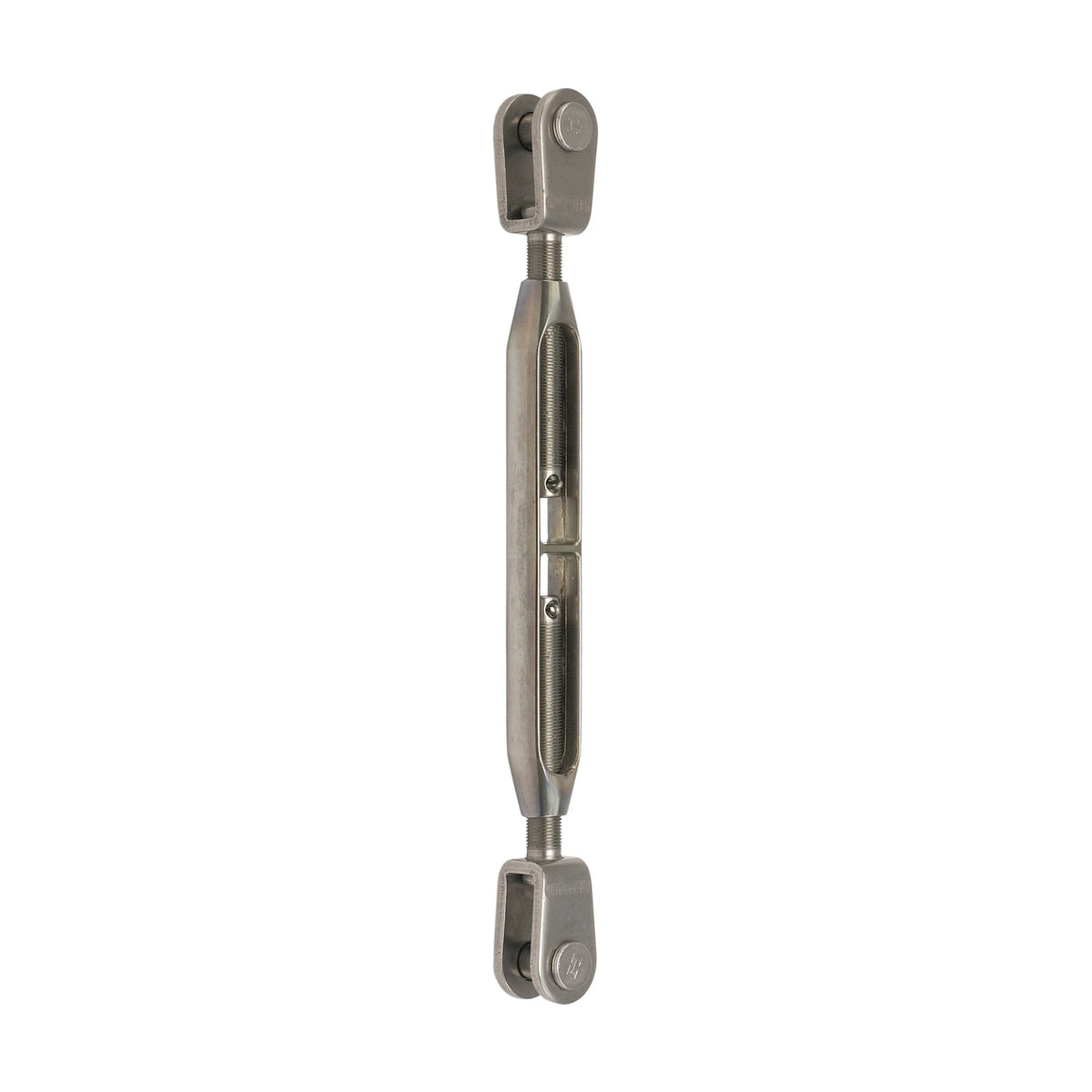

Selden Turnbuckle - Bronze Body, Stainless Terminals, 1/4", Fork/Fork, ø6,5 mm Clevis Pin

SKU: SEL174-321-01  |  Manuf. Code: 174-321-01
List Price:  $103.00 USD
$95.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Turnbuckle with Fork/Fork terminals, thread size 1/4", to be combined with ø3 or ø4 mm wire applications. Bronze, like stainless steel, is very strong and highly resistant to corrosion. By making the body of the turnbuckle in chrome plated aluminium bronze and the terminals in high grade marine stainless steel, we have reduced the risk of the thread seizing up under heavy loads. A design feature which allows you to tune your rig as per Seldén's guidelines Thread size: 1/4" Clevis pin Ø: 6.50 mm L-MIN: 137 mm L-MAX: 208 mm B-MIN: 70 mm B-MAX: 141 mm W: 7.50 mm H: 12.00 mm X: 14 mm Breaking Load: 1550 kg

FEATURES

  • Thread size: 1/4" Clevis pin Ø: 6.50 mm L-MIN: 137 mm L-MAX: 208 mm B-MIN: 70 mm B-MAX: 141 mm W: 7.50 mm H: 12.00 mm X: 14 mm Breaking Load: 1550 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size1/4"1/4"
Clevis pin Ø0.26 in6.5 mm
L MIN5.39 in137 mm
L MAX8.19 in208 mm
B MIN2.76 in70 mm
B MAX5.55 in141 mm
W0.3 in7.5 mm
H0.47 in12 mm
X0.55 in14 mm
Breaking Load3,417.16 lb1,550 kg
Sub-Typebronzebronze
Weight3.21 oz.91.00 g.
Clevis Pin0.26 in.6.50 mm.
L-MIN5.39 in.137.00 mm.
L-MAX8.19 in.208.00 mm.
