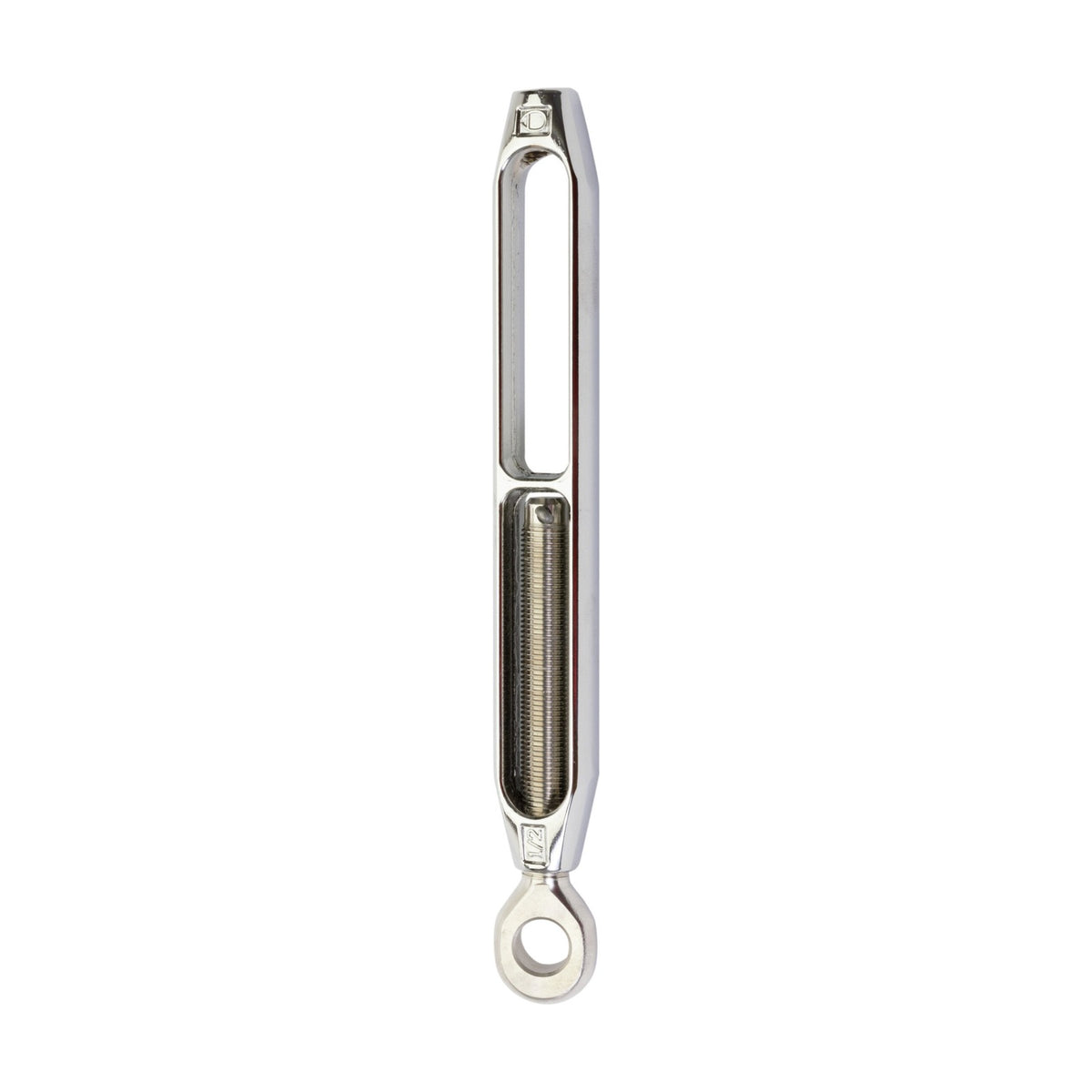

Selden Turnbuckle - Bronze Body, Stainless Terminals, 5/8", ø8 mm Swage Terminal/Fork, ø15,8 mm Clevis Pin

SKU: SEL174-326-05  |  Manuf. Code: 174-326-05
List Price:  $279.00 USD
$260.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Wire diam: 8 mm Thread size: 5/8" Clevis pin Ø: 15.80 mm L-MIN: 303 mm L-MAX: 477 mm W: 18.00 mm H: 31.50 mm X: 34 mm Breaking Load: 9500 kg

FEATURES

  • Wire diam: 8 mm (0.31 in).
  • Thread size: 5/8".
  • Clevis pin Ø: 15.8 mm (0.62 in).
  • L MIN: 303 mm (11.93 in).
  • L MAX: 477 mm (18.78 in).
  • W: 18 mm (0.71 in).
  • H: 31.5 mm (1.24 in).
  • X: 34 mm (1.34 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Wire diam0.31 in8 mm
Thread size5/8"5/8"
Clevis pin Ø0.62 in15.8 mm
L MIN11.93 in303 mm
L MAX18.78 in477 mm
W0.71 in18 mm
H1.24 in31.5 mm
X1.34 in34 mm
Breaking Load20,943.89 lb9,500 kg
Weight2.44 lb.1.11 kg.
Clevis Pin0.62 in.15.80 mm.
Wire Diameter0.31 in.8.00 mm.
L-MIN11.93 in.303.00 mm.
L-MAX18.78 in.477.00 mm.
