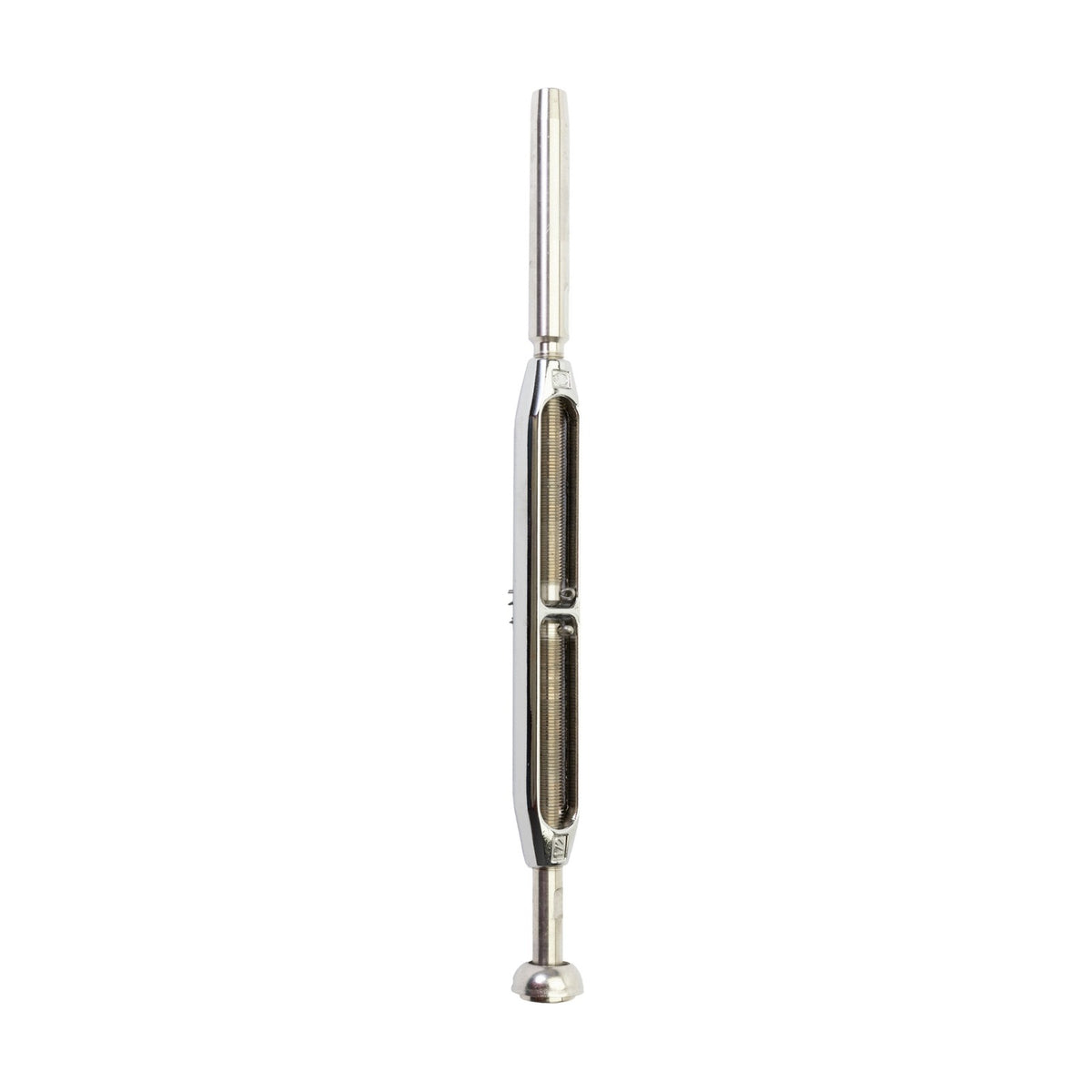

Selden Turnbuckle - 7/8", ø12 mm Swage Terminal/Fork, ø19 mm Clevis Pin

SKU: SEL174-328-05  |  Manuf. Code: 174-328-05
List Price:  $958.00 USD
$890.00 USD
You save $68 off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Turnbuckle with Swage Terminal/Fork terminals, thread size 7/8", to be combined with ø12 mm wire applications. This turnbuckle is made with a chrome plated aluminium bronze body and marine-grade stainless steel terminals, providing superior resistance to corrosion and thread seizing, ensuring reliable and precise rig tuning in accordance with Seldén's guidelines Wire diam: 12 mm Thread size: 7/8" Clevis pin Ø: 19.00 mm L-MIN: 431 mm L-MAX: 673 mm W: 22.00 mm H: 46.00 mm X: 50 mm Breaking Load: 18000 kg

FEATURES

  • Wire diam: 12 mm Thread size: 7/8" Clevis pin Ø: 19.00 mm L-MIN: 431 mm L-MAX: 673 mm W: 22.00 mm H: 46.00 mm X: 50 mm Breaking Load: 18000 kg.

TECHNICAL INFORMATION

DescriptionImperialMetric
Wire diam0.47 in12 mm
Thread size7/8"7/8"
Clevis pin Ø0.75 in19 mm
L MIN16.97 in431 mm
L MAX26.5 in673 mm
W0.87 in22 mm
H1.81 in46 mm
X1.97 in50 mm
Breaking Load39,683.16 lb18,000 kg
Weight6.47 lb.2.93 kg.
Clevis Pin0.75 in.19.00 mm.
Wire Diameter0.47 in.12.00 mm.
L-MIN16.97 in.431.00 mm.
L-MAX26.50 in.673.00 mm.
