Selden RIGGING SCREW(STB) 1 1/4", OPEN/TGL PIN29

SKU: SEL174-970-73  |  Manuf. Code: 174-970-73
List Price:  $2,693.00 USD
$2,490.00 USD
You save $203 off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

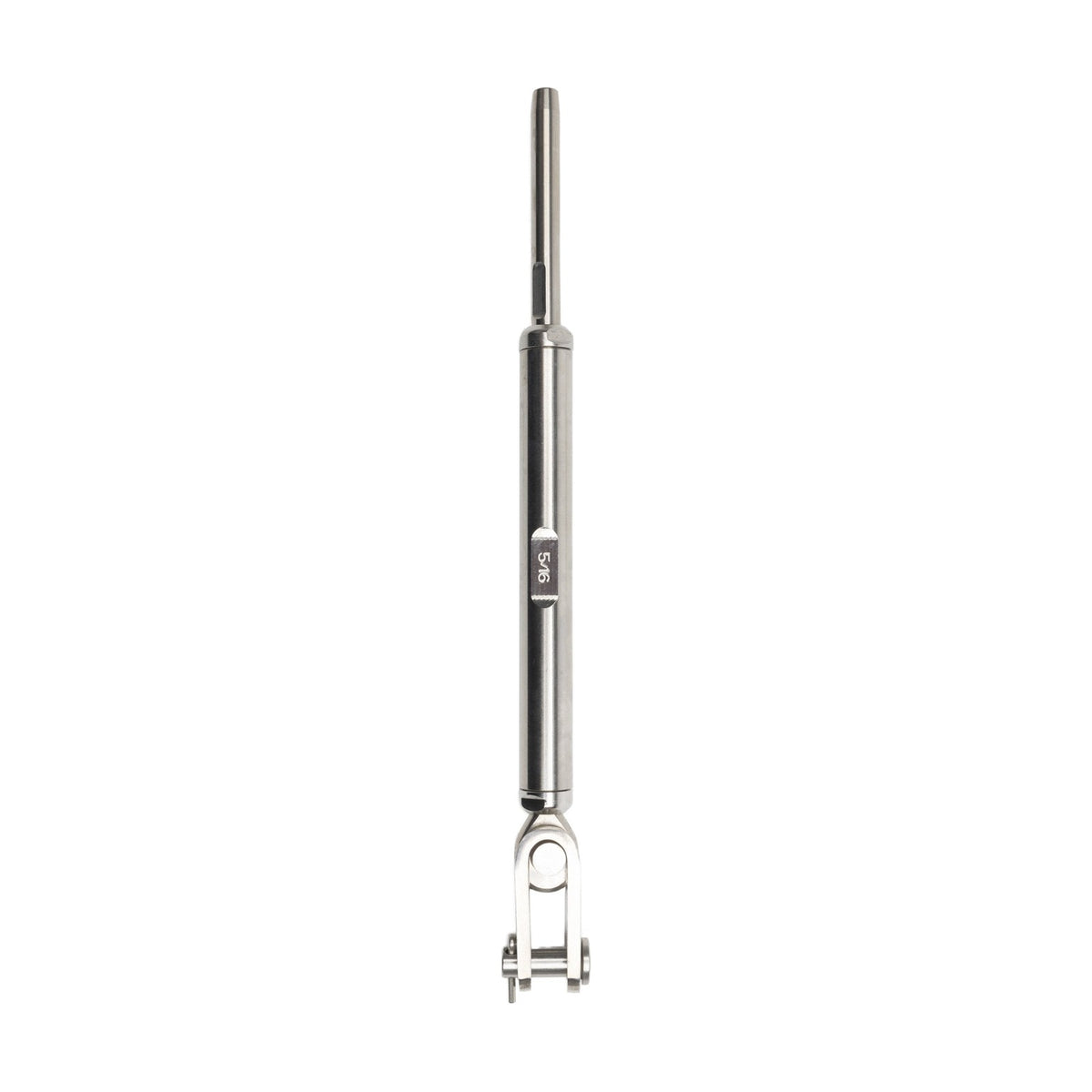

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes. This is the largest size in the StB range.

This is the 1 1/4 in size, open at one end with a toggle for a 29 mm pin at the other.

Seldén reference: RIGGING SCREW(STB) 1 1/4", OPEN/TGL PIN29.

Our Part # SEL174-970-73 | Mfr. Part # 174-970-73

FEATURES

  • BodyType: STB.
  • Thread size: 1 1/4".
  • LR: 460 mm (18.11 in).
  • Clevis pin ø: 29 mm (1.14 in).
  • W: 31 mm (1.22 in).
  • H: 70 mm (2.76 in).
  • X: 74 mm (2.91 in).
  • Breaking Load: 32,000 kg (70,547.84 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size1 1/4"1 1/4"
LR18.11 in460 mm
Clevis pin ø1.14 in29 mm
W1.22 in31 mm
H2.76 in70 mm
X2.91 in74 mm
Breaking Load70,547.84 lb32,000 kg
Weight19.36 lb.8.78 kg.
Clevis Pin1.14 in.29.00 mm.
