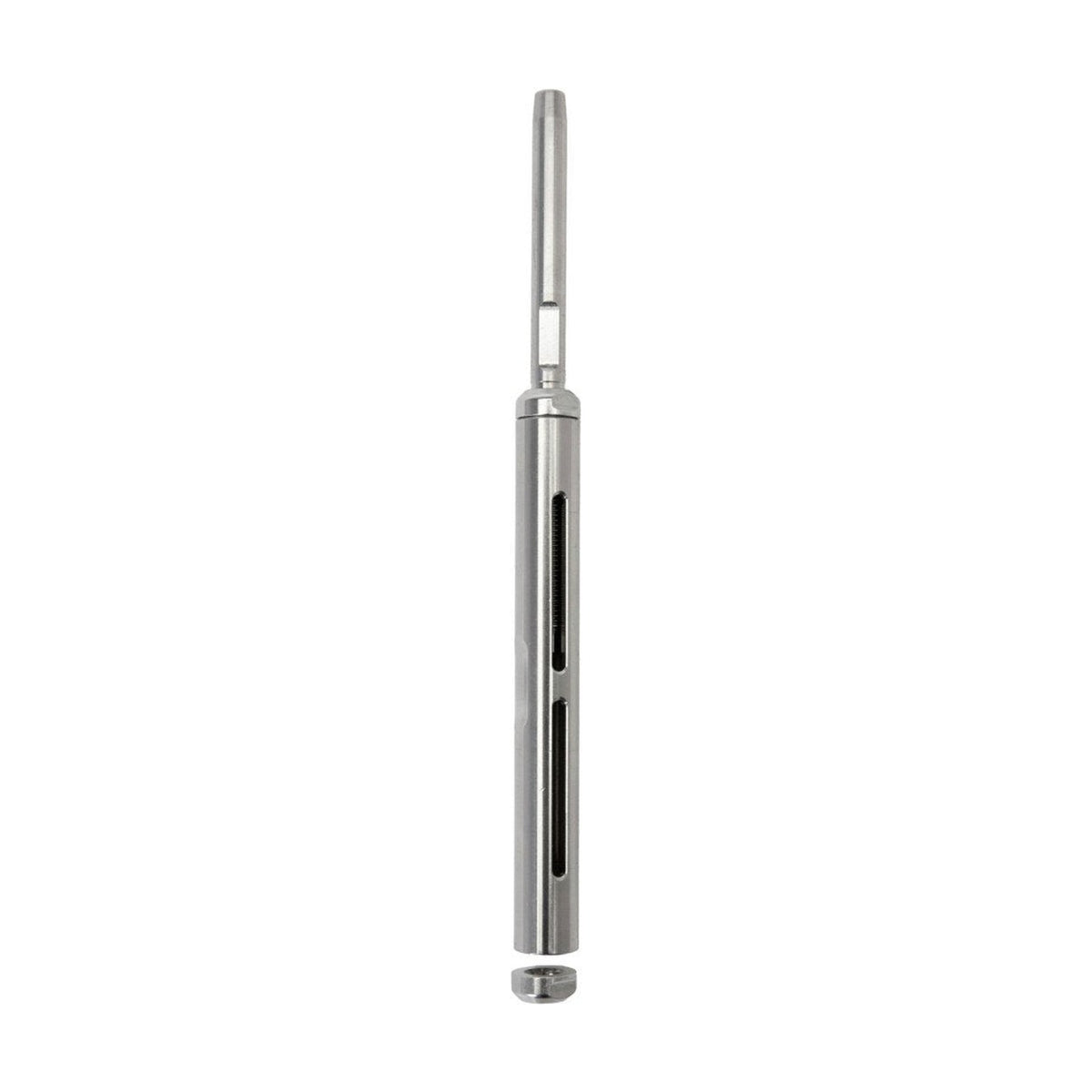

Selden RIGGING SCREW(STB) 1/2 -FRK/ R14 PIN13

SKU: SEL174-964-52  |  Manuf. Code: 174-964-52
List Price:  $155.00 USD
$143.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 1/2 in size, with a fork for a 13 mm pin at one end and an R14 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 1/2 -FRK/ R14 PIN13.

Our Part # SEL174-964-52 | Mfr. Part # 174-964-52

FEATURES

  • Thread size: 1/2".
  • R: 14 mm (0.55 in).
  • Clevis pin Ø: 13 mm (0.51 in).
  • L MIN: 297 mm (11.69 in).
  • L MAX: 424 mm (16.69 in).
  • W: 14.5 mm (0.57 in).
  • H: 25 mm (0.98 in).
  • X: 28 mm (1.1 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size1/2"1/2"
R0.55 in14 mm
Clevis pin Ø0.51 in13 mm
L MIN11.69 in297 mm
L MAX16.69 in424 mm
W0.57 in14.5 mm
H0.98 in25 mm
X1.1 in28 mm
Breaking Load13,668.64 lb6,200 kg
Weight1.42 lb.646.00 g.
Clevis Pin0.51 in.13.00 mm.
L-MIN11.69 in.297.00 mm.
L-MAX16.69 in.424.00 mm.
