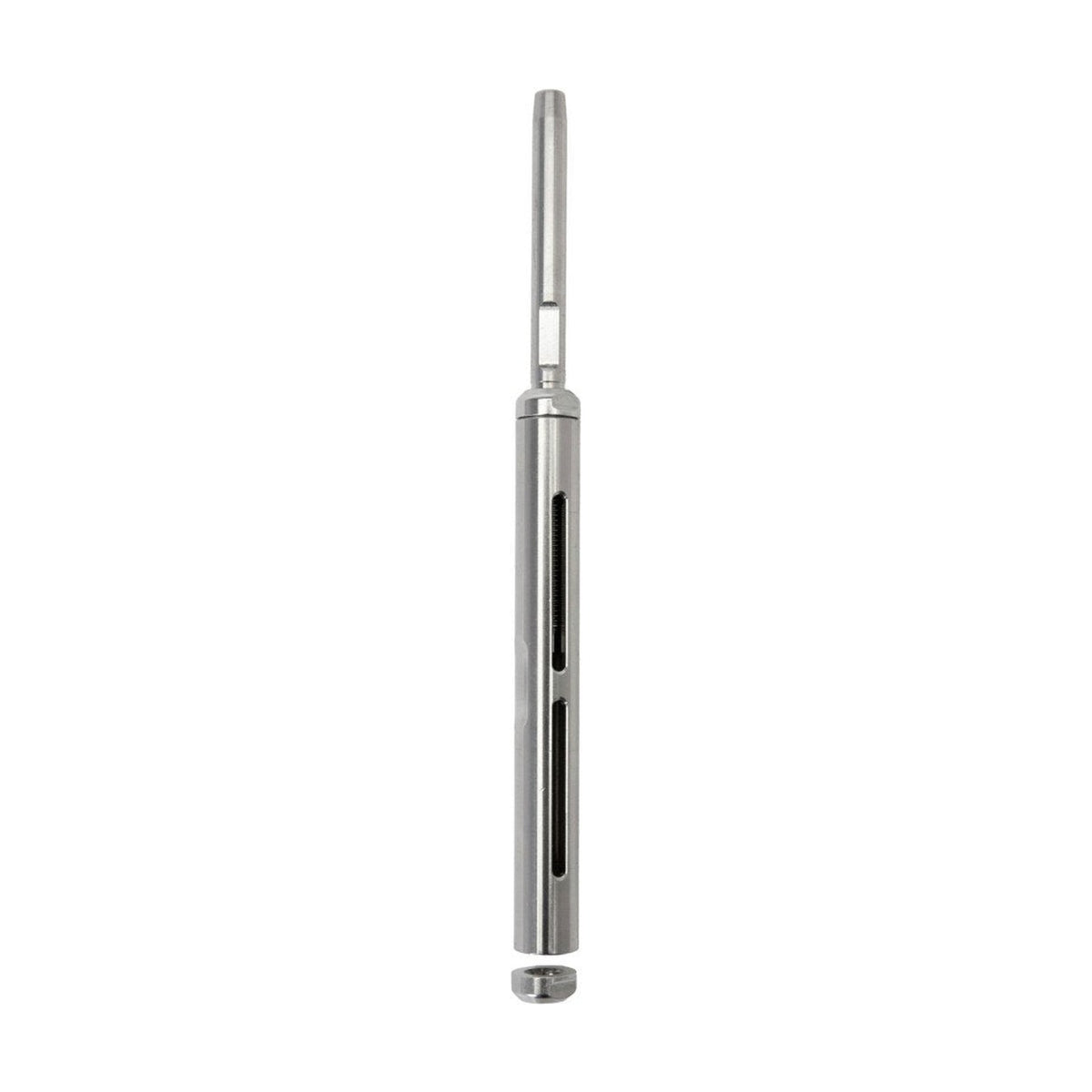

Selden RIGGING SCREW(STB) 1/2, OPEN/ R14

SKU: SEL174-964-77  |  Manuf. Code: 174-964-77
List Price:  $130.00 USD
$120.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 1/2 in size, open at one end with an R14 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 1/2, OPEN/ R14.

Our Part # SEL174-964-77 | Mfr. Part # 174-964-77

FEATURES

  • BodyType: STB.
  • Thread size: 1/2".
  • M MIN: 153 mm (6.02 in).
  • M MAX: 218 mm (8.58 in).
  • LR: 195 mm (7.68 in).
  • T: 144 mm (5.67 in).
  • Stemball size: 14 R.
  • Breaking Load: 6,200 kg (13,668.64 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size1/2"1/2"
M MIN6.02 in153 mm
M MAX8.58 in218 mm
LR7.68 in195 mm
T5.67 in144 mm
Stemball size14 R14 R
Breaking Load13,668.64 lb6,200 kg
Weight15.27 oz.433.00 g.
