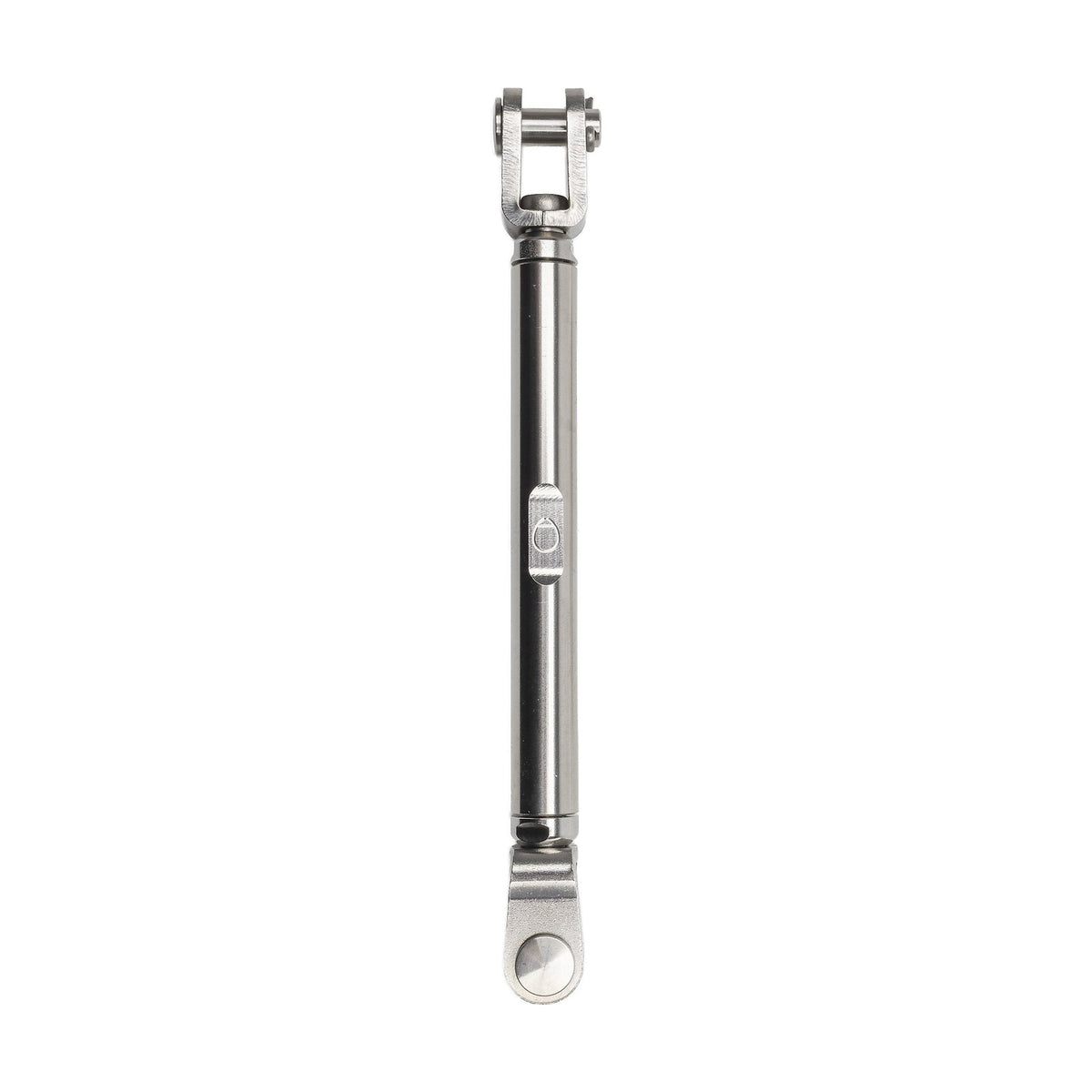

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 1/4" | 1/4" |
| Clevis pin Ø | 0.26 in | 6.5 mm |
| L MIN | 5.67 in | 144 mm |
| L MAX | 8.07 in | 205 mm |
| B MIN | 3.03 in | 77 mm |
| B MAX | 5.43 in | 138 mm |
| W | 0.3 in | 7.5 mm |
| H | 0.47 in | 12 mm |
| X | 0.55 in | 14 mm |
| Breaking Load | 3,417.16 lb | 1,550 kg |
| Sub-Type | STB | STB |
| Weight | 4.23 oz. | 120.00 g. |
| Clevis Pin | 0.26 in. | 6.50 mm. |
| L-MIN | 5.67 in. | 144.00 mm. |
| L-MAX | 8.07 in. | 205.00 mm. |
