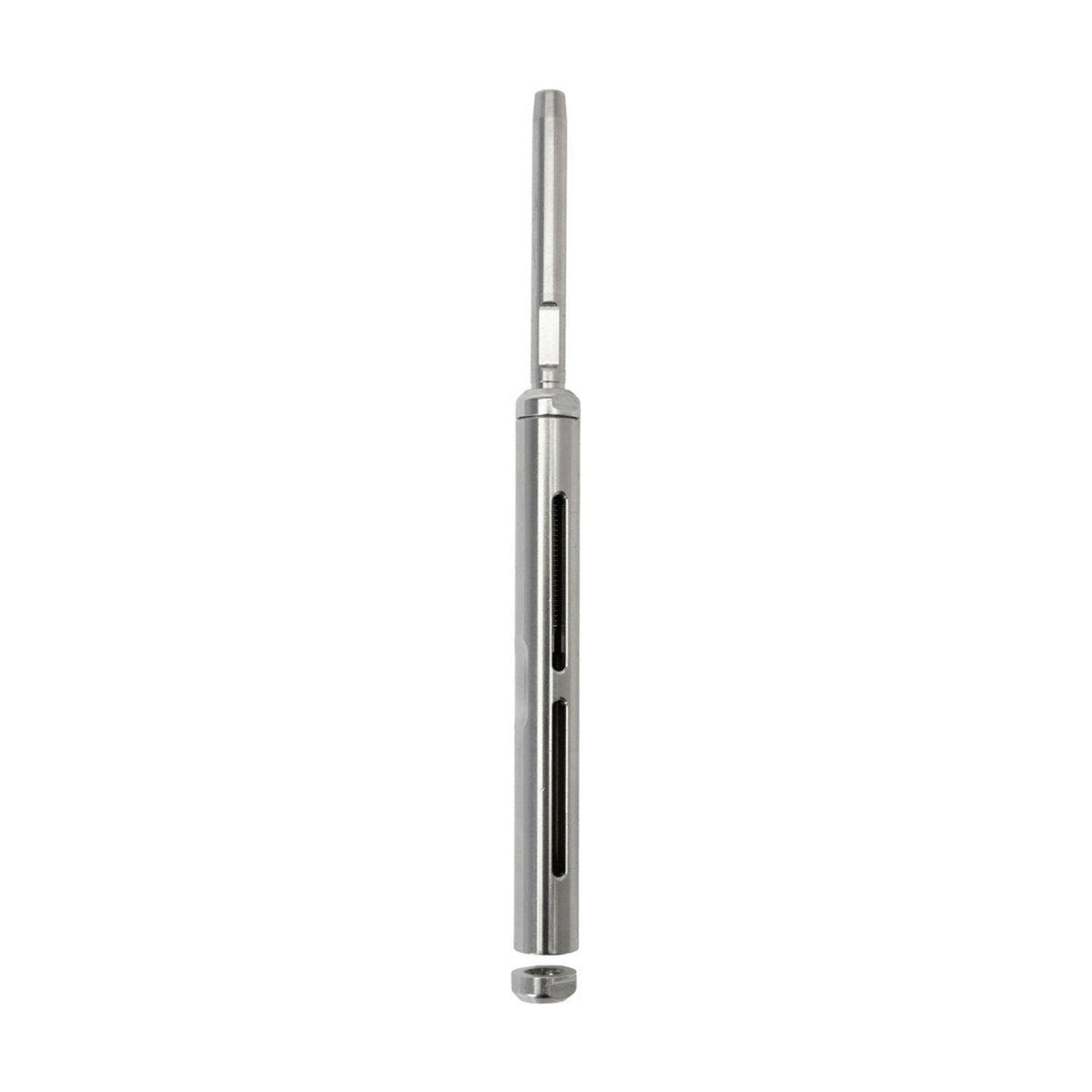

Selden RIGGING SCREW(STB) 1/4, OPEN/ R9
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.
This is the 1/4 in size, open at one end with an R9 stemball socket at the other.
Seldén reference: RIGGING SCREW(STB) 1/4, OPEN/ R9.
Our Part # SEL174-960-76 | Mfr. Part # 174-960-76
FEATURES
FEATURES
- BodyType: STB.
- Thread size: 1/4".
- M MIN: 92 mm (3.62 in).
- M MAX: 123 mm (4.84 in).
- LR: 97 mm (3.82 in).
- T: 87 mm (3.43 in).
- Stemball size: 9 R.
- Breaking Load: 1,550 kg (3,417.16 lb).
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| BodyType | STB | STB |
| Thread size | 1/4" | 1/4" |
| M MIN | 3.62 in | 92 mm |
| M MAX | 4.84 in | 123 mm |
| LR | 3.82 in | 97 mm |
| T | 3.43 in | 87 mm |
| Stemball size | 9 R | 9 R |
| Breaking Load | 3,417.16 lb | 1,550 kg |
| Weight | 2.89 oz. | 82.00 g. |
