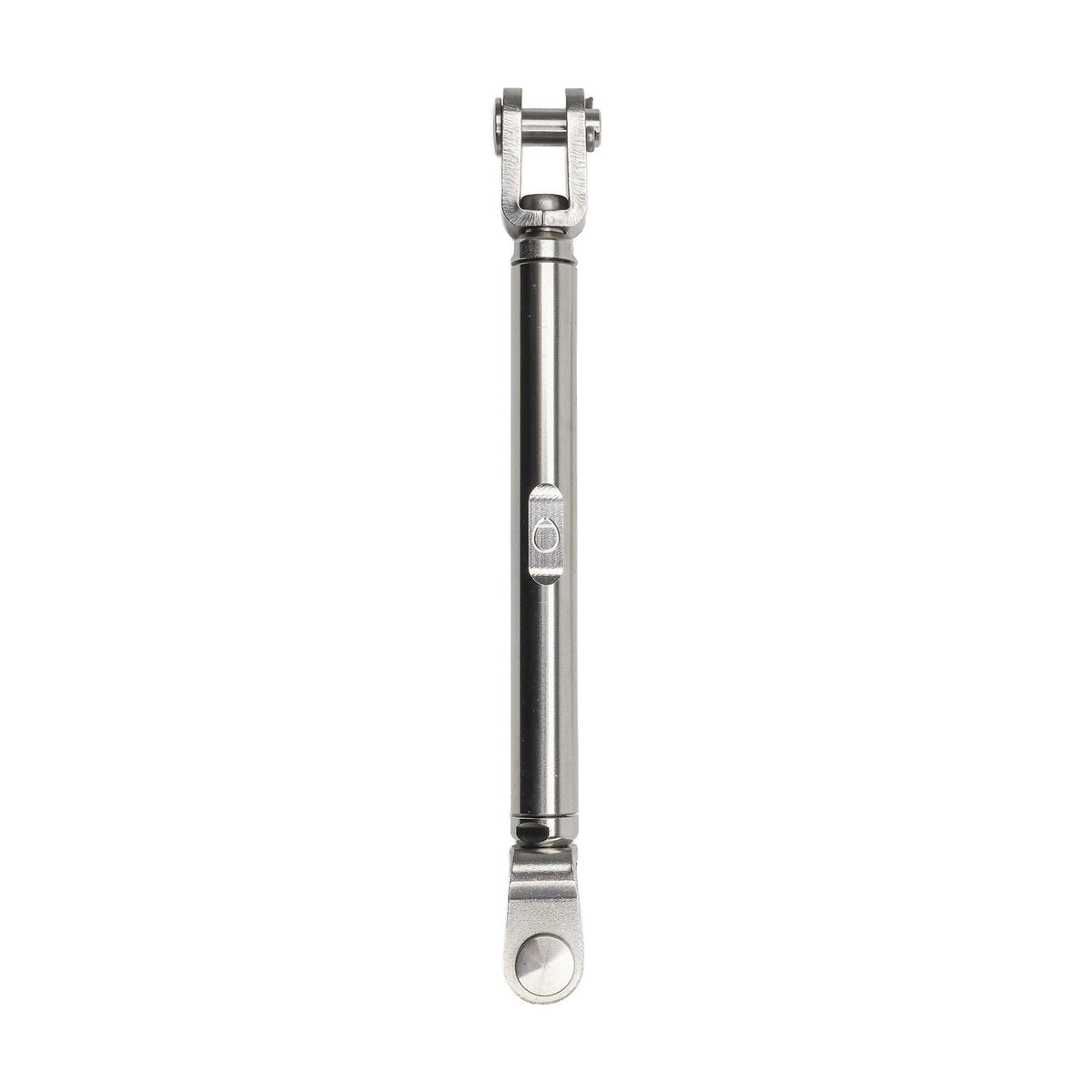

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 1" | 1" |
| Clevis pin Ø | 0.87 in | 22 mm |
| L MIN | 25.04 in | 636 mm |
| L MAX | 35.75 in | 908 mm |
| B MIN | 13.39 in | 340 mm |
| B MAX | 24.09 in | 612 mm |
| W | 1 in | 25.5 mm |
| H | 1.97 in | 50 mm |
| X | 2.28 in | 58 mm |
| Breaking Load | 51,874.71 lb | 23,530 kg |
| Sub-Type | STB | STB |
| Weight | 15.37 lb. | 6.97 kg. |
| Clevis Pin | 0.87 in. | 22.00 mm. |
| L-MIN | 25.04 in. | 636.00 mm. |
| L-MAX | 35.75 in. | 908.00 mm. |
