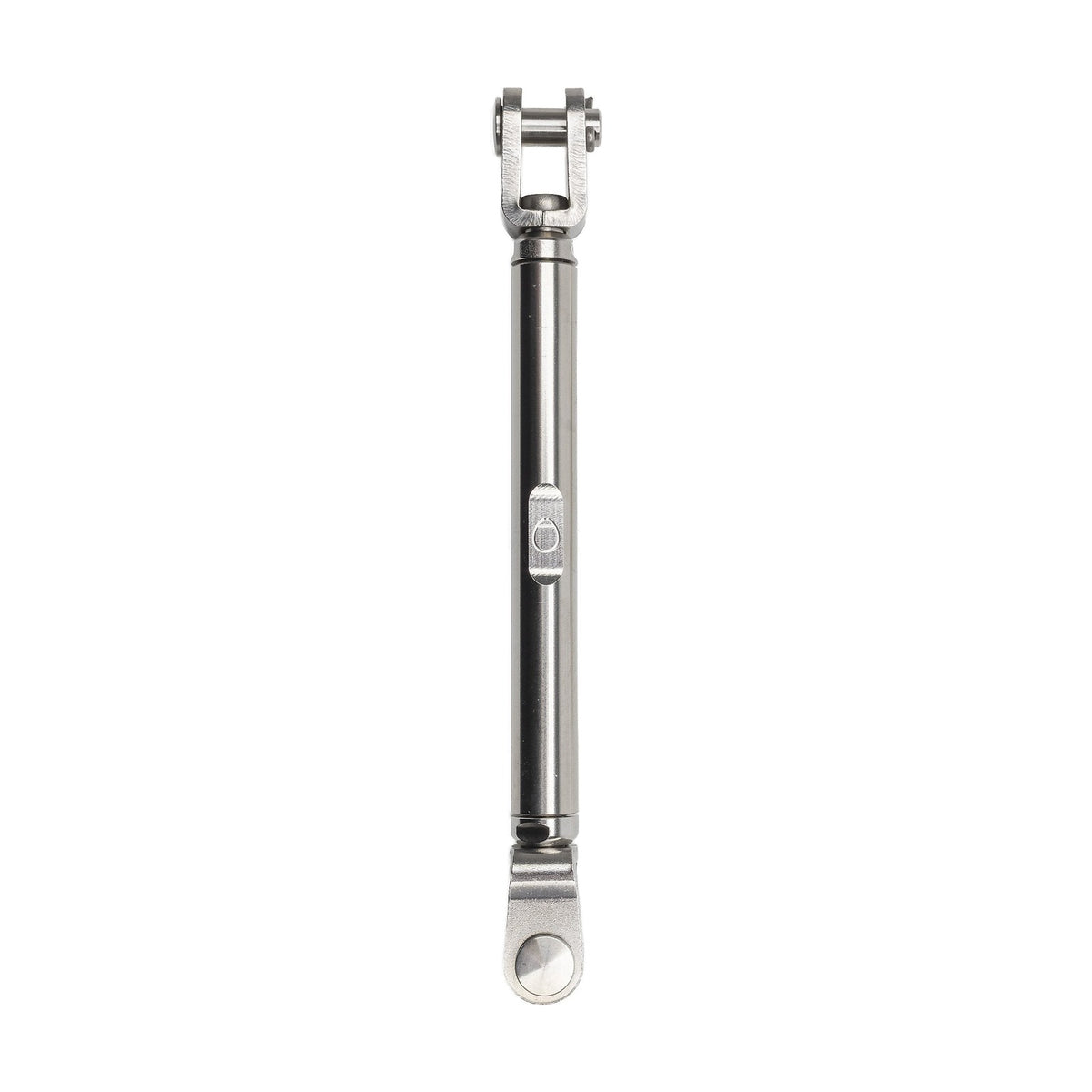

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 3/4" | 3/4" |
| Clevis pin Ø | 0.75 in | 19 mm |
| L MIN | 15.79 in | 401 mm |
| L MAX | 6.73 in | 171 mm |
| B MIN | 8.62 in | 219 mm |
| B MAX | 15.35 in | 390 mm |
| W | 0.87 in | 22 mm |
| H | 1.25 in | 31.8 mm |
| X | 1.54 in | 39 mm |
| Breaking Load | 32,341.78 lb | 14,670 kg |
| Sub-Type | STB | STB |
| Weight | 5.50 lb. | 2.50 kg. |
| Clevis Pin | 0.75 in. | 19.00 mm. |
| L-MIN | 15.79 in. | 401.00 mm. |
| L-MAX | 6.73 in. | 171.00 mm. |
