Selden RIGGING SCREW(STB) 3/4-FRK/TGL PINS 19

SKU: SEL174-966-45  |  Manuf. Code: 174-966-45
List Price:  $511.00 USD
$470.00 USD
You save $41 off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

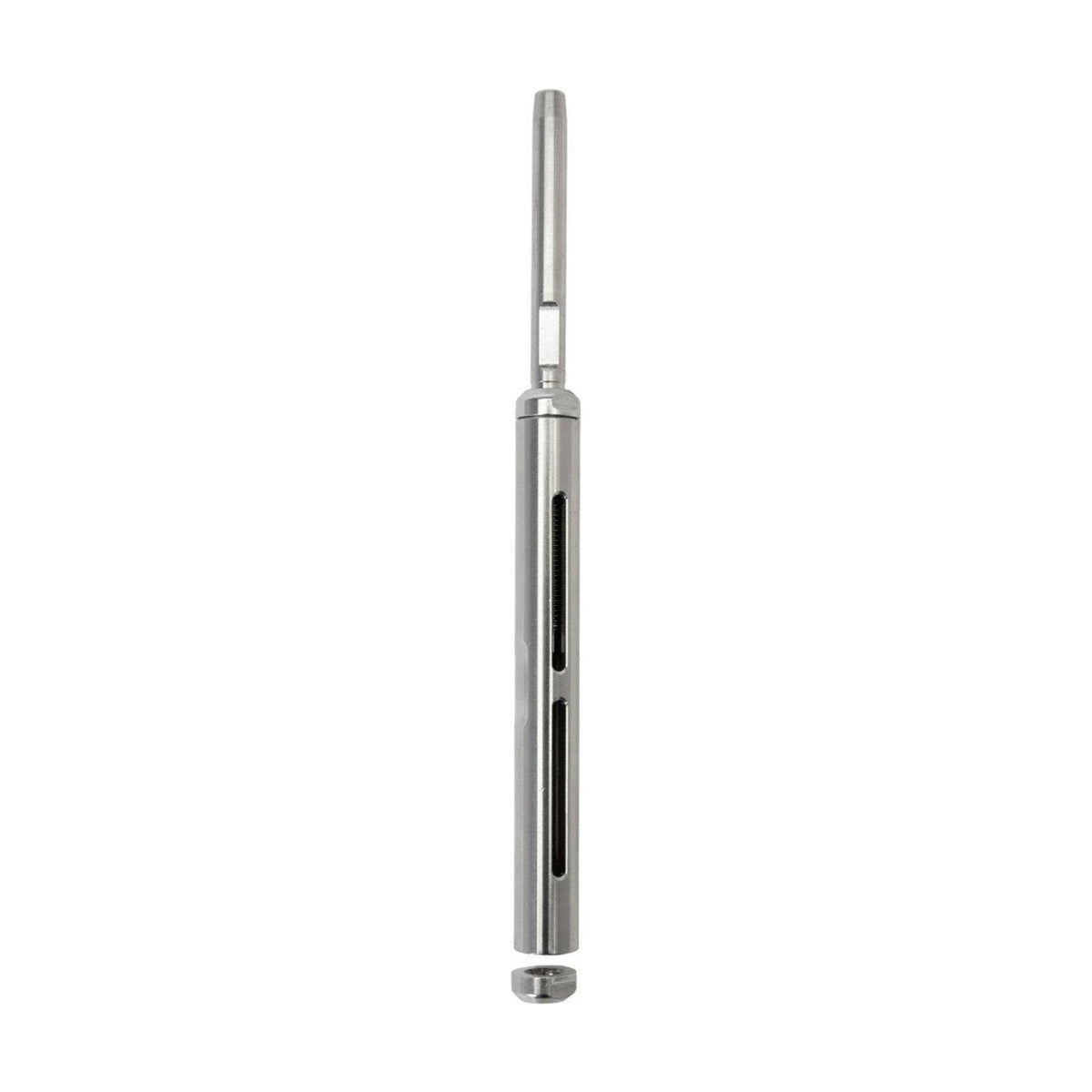

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 3/4 in size, with a fork at one end and a toggle at the other, both for 19 mm pins.

Seldén reference: RIGGING SCREW(STB) 3/4-FRK/TGL PINS 19.

Our Part # SEL174-966-45 | Mfr. Part # 174-966-45

FEATURES

  • Thread size: 3/4".
  • Clevis pin Ø: 19 mm (0.75 in).
  • L MIN: 442 mm (17.4 in).
  • L MAX: 614 mm (24.17 in).
  • W: 22 mm (0.87 in).
  • H: 31.8 mm (1.25 in).
  • X: 39 mm (1.54 in).
  • W2: 22 mm (0.87 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size3/4"3/4"
Clevis pin Ø0.75 in19 mm
L MIN17.4 in442 mm
L MAX24.17 in614 mm
W0.87 in22 mm
H1.25 in31.8 mm
X1.54 in39 mm
W20.87 in22 mm
H21.63 in41.3 mm
X21.54 in39 mm
Breaking Load32,341.78 lb14,670 kg
Weight6.08 lb.2.76 kg.
Clevis Pin0.75 in.19.00 mm.
L-MIN17.40 in.442.00 mm.
L-MAX24.17 in.614.00 mm.
