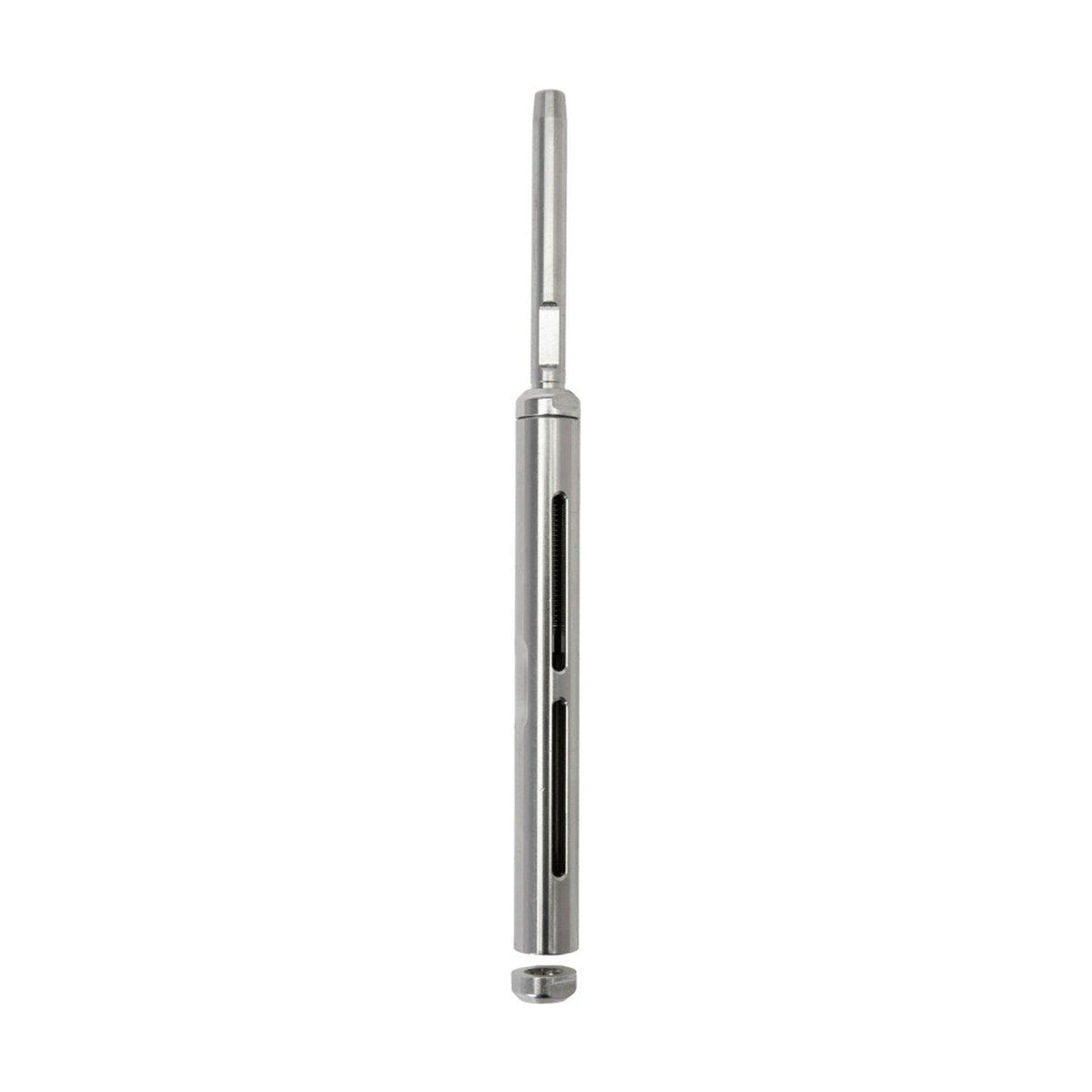

Selden RIGGING SCREW(STB) 3/4, OPEN/FRK PIN16

SKU: SEL174-966-70  |  Manuf. Code: 174-966-70
List Price:  $337.00 USD
$310.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 3/4 in size, open at one end with a fork for a 16 mm pin at the other.

Seldén reference: RIGGING SCREW(STB) 3/4, OPEN/FRK PIN16.

Our Part # SEL174-966-70 | Mfr. Part # 174-966-70

FEATURES

  • BodyType: STB.
  • Thread size: 3/4".
  • M MIN: 200 mm (7.87 in).
  • M MAX: 286 mm (11.26 in).
  • LR: 275 mm (10.83 in).
  • T: 182 mm (7.17 in).
  • W: 22 mm (0.87 in).
  • H: 32 mm (1.26 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size3/4"3/4"
M MIN7.87 in200 mm
M MAX11.26 in286 mm
LR10.83 in275 mm
T7.17 in182 mm
W0.87 in22 mm
H1.26 in32 mm
X1.54 in39 mm
Pin diam0.63 in16 mm
Breaking Load21,340.72 lb9,680 kg
Weight4.00 lb.1.81 kg.
