Selden RIGGING SCREW(STB) 3/8 -FRK/ R14 PIN9.5

SKU: SEL174-962-52  |  Manuf. Code: 174-962-52
List Price:  $110.00 USD
$101.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

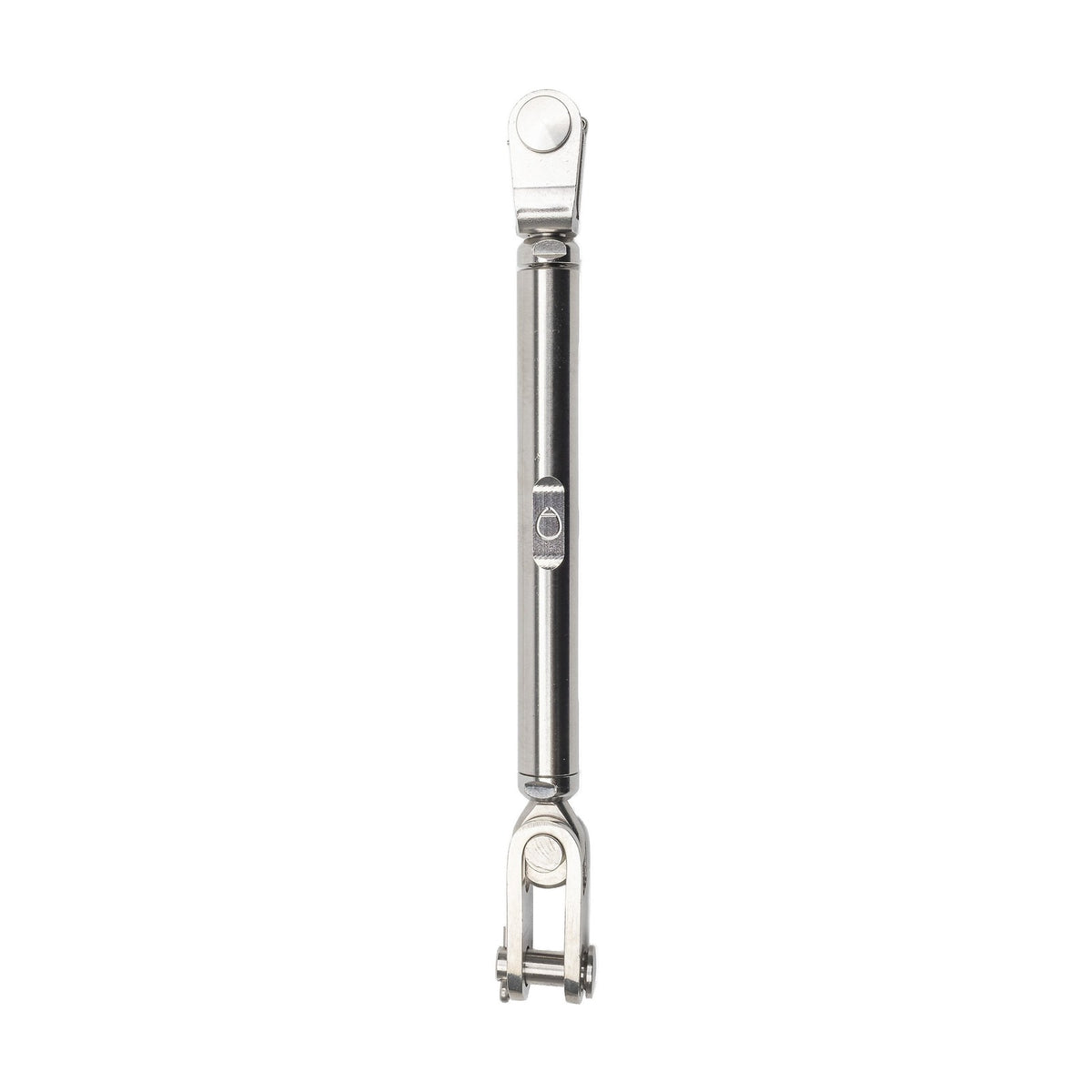

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 3/8 in size, with a fork for a 9.5 mm pin at one end and an R14 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 3/8 -FRK/ R14 PIN9.5.

Our Part # SEL174-962-52 | Mfr. Part # 174-962-52

FEATURES

  • Thread size: 3/8".
  • R: 14 mm (0.55 in).
  • Clevis pin Ø: 9.5 mm (0.37 in).
  • L MIN: 221 mm (8.7 in).
  • L MAX: 305 mm (12.01 in).
  • W: 10.5 mm (0.41 in).
  • H: 18 mm (0.71 in).
  • X: 20 mm (0.79 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size3/8"3/8"
R0.55 in14 mm
Clevis pin Ø0.37 in9.5 mm
L MIN8.7 in221 mm
L MAX12.01 in305 mm
W0.41 in10.5 mm
H0.71 in18 mm
X0.79 in20 mm
Breaking Load7,605.94 lb3,450 kg
Weight10.79 oz.306.00 g.
Clevis Pin0.37 in.9.50 mm.
L-MIN8.70 in.221.00 mm.
L-MAX12.01 in.305.00 mm.
