Selden RIGGING SCREW(STB) 3/8, OPEN/FRK PIN 9.5
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

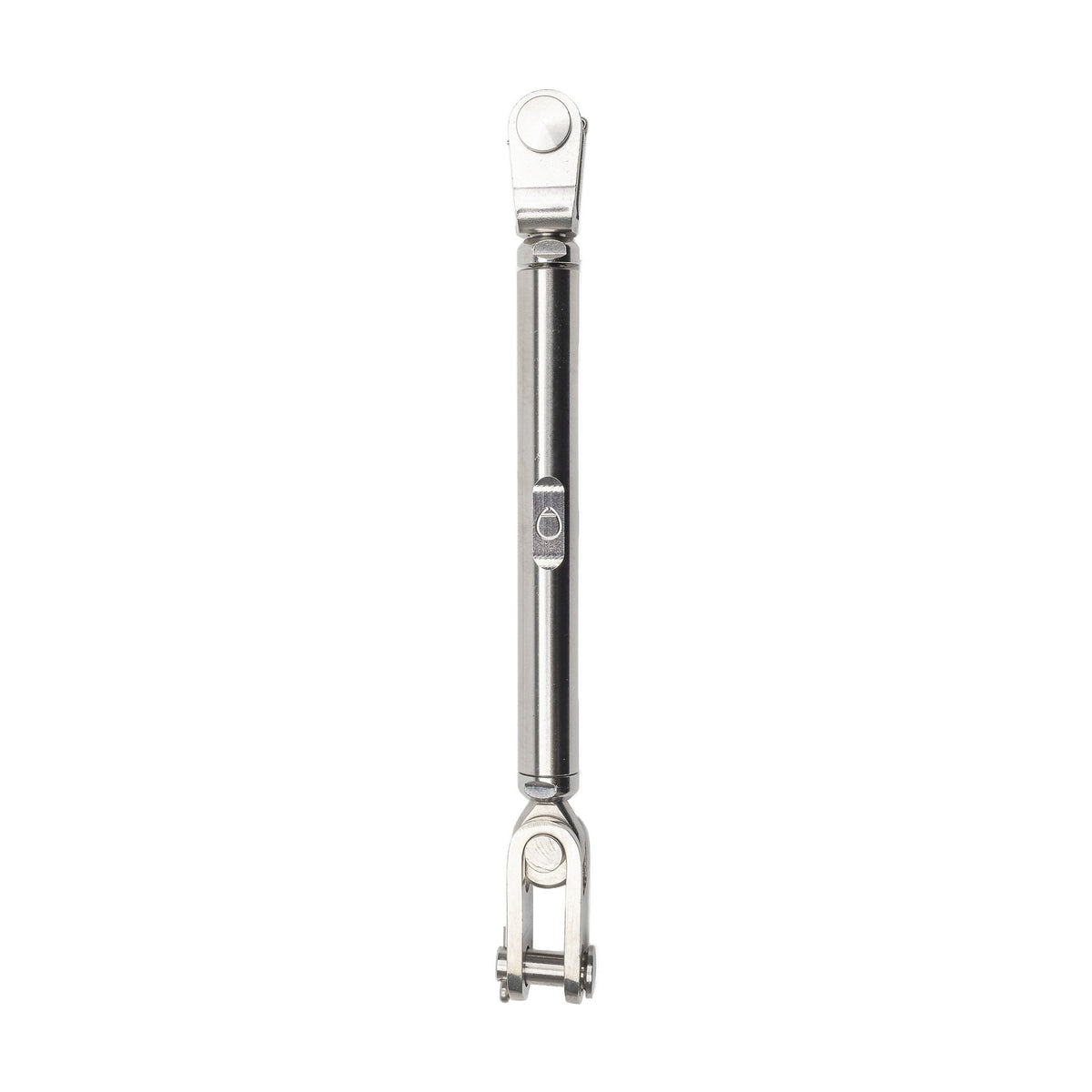

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.
This is the 3/8 in size, open at one end with a fork for a 9.5 mm pin at the other.
Seldén reference: RIGGING SCREW(STB) 3/8, OPEN/FRK PIN 9.5.
Our Part # SEL174-962-70 | Mfr. Part # 174-962-70
FEATURES
FEATURES
- BodyType: STB.
- Thread size: 3/8".
- M MIN: 103 mm (4.06 in).
- M MAX: 145 mm (5.71 in).
- LR: 140 mm (5.51 in).
- T: 94 mm (3.7 in).
- W: 10.5 mm (0.41 in).
- H: 18 mm (0.71 in).
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| BodyType | STB | STB |
| Thread size | 3/8" | 3/8" |
| M MIN | 4.06 in | 103 mm |
| M MAX | 5.71 in | 145 mm |
| LR | 5.51 in | 140 mm |
| T | 3.7 in | 94 mm |
| W | 0.41 in | 10.5 mm |
| H | 0.71 in | 18 mm |
| X | 0.79 in | 20 mm |
| Pin diam | 0.37 in | 9.5 mm |
| Breaking Load | 7,605.94 lb | 3,450 kg |
| Weight | 9.17 oz. | 260.00 g. |
