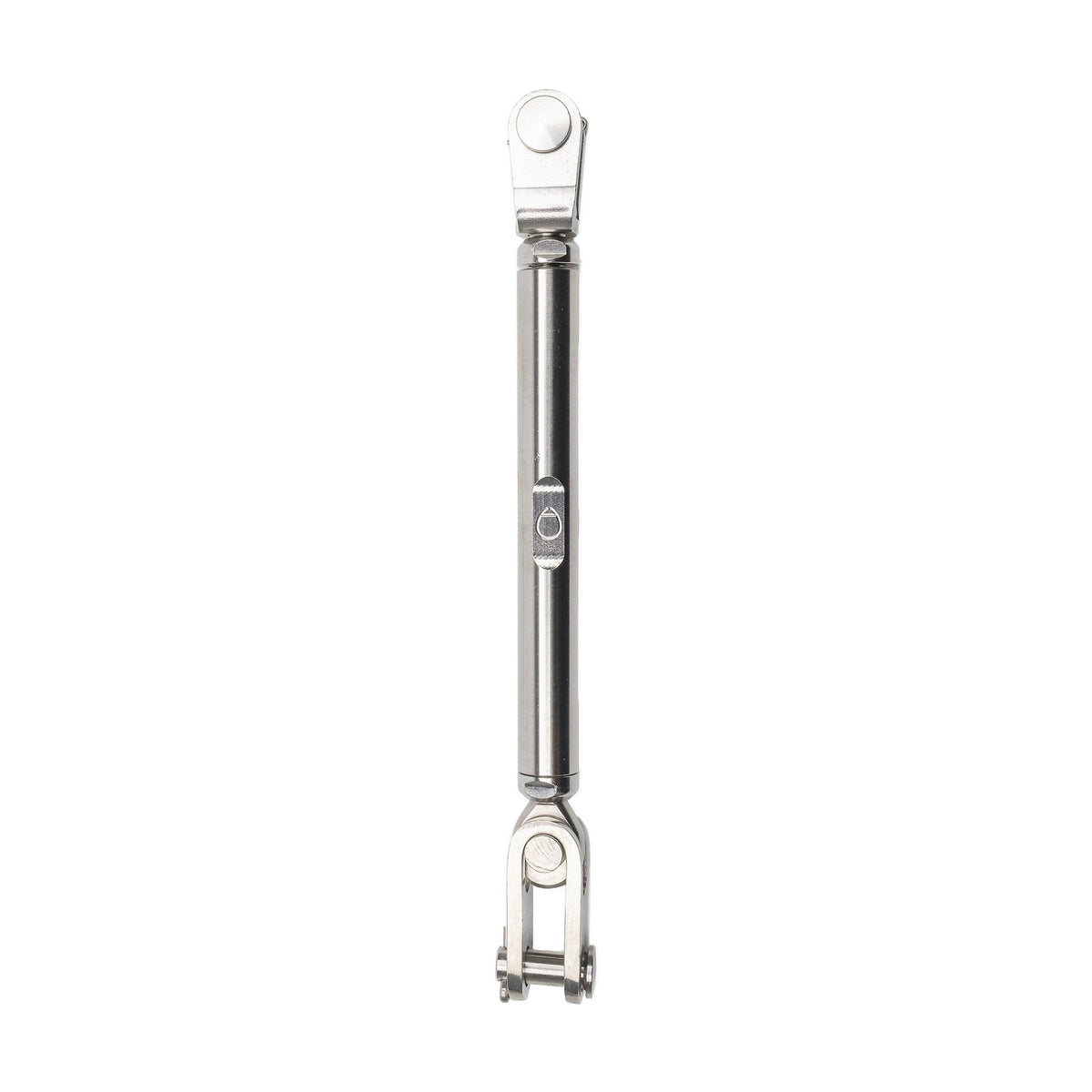

Selden RIGGING SCREW(STB) 3/8, OPEN/ R14
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.
This is the 3/8 in size, open at one end with an R14 stemball socket at the other.
Seldén reference: RIGGING SCREW(STB) 3/8, OPEN/ R14.
Our Part # SEL174-962-77 | Mfr. Part # 174-962-77
FEATURES
FEATURES
- BodyType: STB.
- Thread size: 3/8".
- M MIN: 119 mm (4.69 in).
- M MAX: 160 mm (6.3 in).
- LR: 140 mm (5.51 in).
- T: 109 mm (4.29 in).
- Stemball size: 14 R.
- Breaking Load: 3,450 kg (7,605.94 lb).
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| BodyType | STB | STB |
| Thread size | 3/8" | 3/8" |
| M MIN | 4.69 in | 119 mm |
| M MAX | 6.3 in | 160 mm |
| LR | 5.51 in | 140 mm |
| T | 4.29 in | 109 mm |
| Stemball size | 14 R | 14 R |
| Breaking Load | 7,605.94 lb | 3,450 kg |
| Weight | 7.69 oz. | 218.00 g. |
