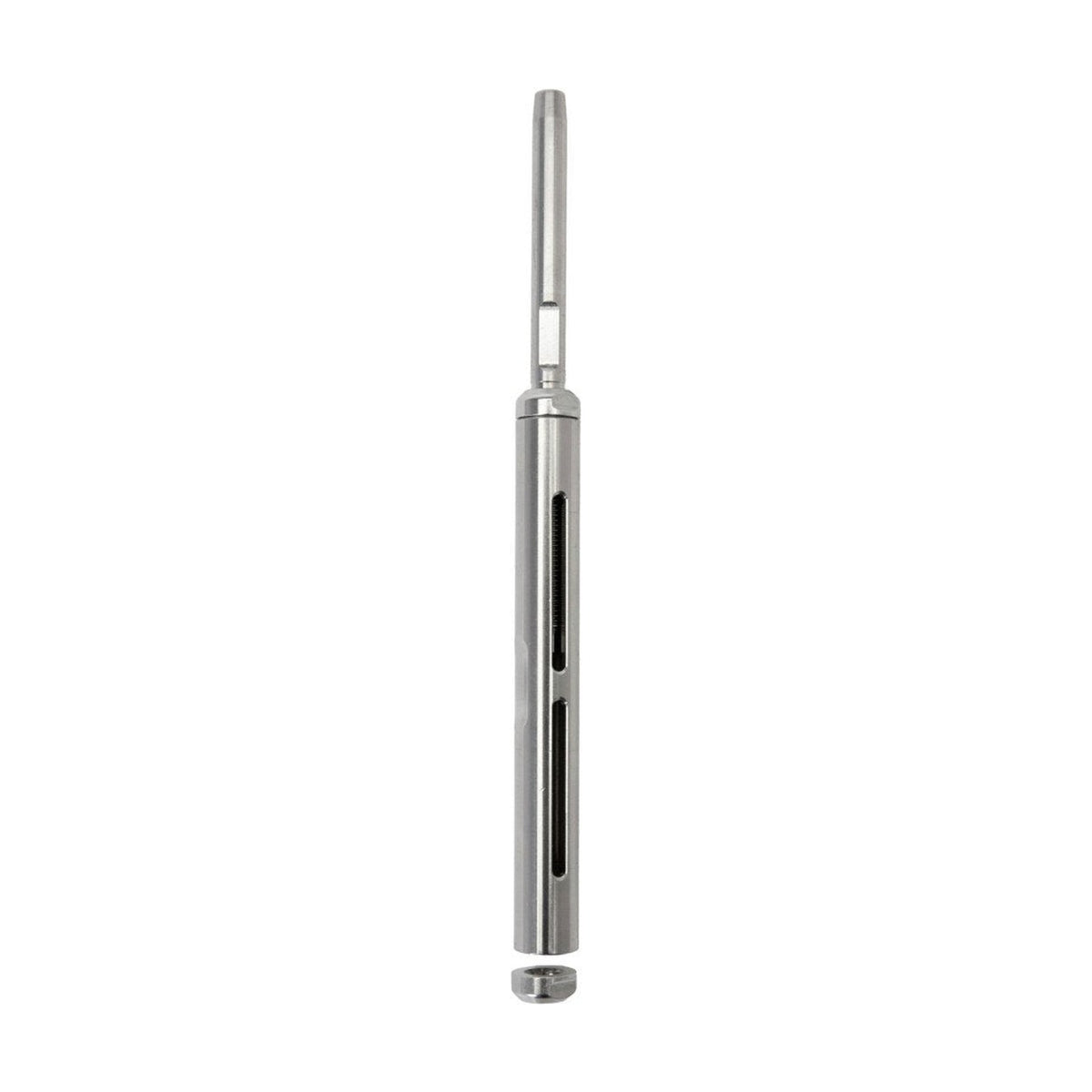

Selden RIGGING SCREW(STB) 5/16 -FRK/ R14 PIN8

SKU: SEL174-961-54  |  Manuf. Code: 174-961-54
List Price:  $88.00 USD
$81.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 5/16 in size, with a fork for an 8 mm pin at one end and an R14 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 5/16 -FRK/ R14 PIN8.

Our Part # SEL174-961-54 | Mfr. Part # 174-961-54

FEATURES

  • Thread size: 5/16".
  • R: 14 mm (0.55 in).
  • Clevis pin Ø: 8 mm (0.31 in).
  • L MIN: 190 mm (7.48 in).
  • L MAX: 256 mm (10.08 in).
  • W: 9 mm (0.35 in).
  • H: 15 mm (0.59 in).
  • X: 16 mm (0.63 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
Thread size5/16"5/16"
R0.55 in14 mm
Clevis pin Ø0.31 in8 mm
L MIN7.48 in190 mm
L MAX10.08 in256 mm
W0.35 in9 mm
H0.59 in15 mm
X0.63 in16 mm
Breaking Load5,401.32 lb2,450 kg
Weight7.20 oz.204.00 g.
Clevis Pin0.31 in.8.00 mm.
L-MIN7.48 in.190.00 mm.
L-MAX10.08 in.256.00 mm.
