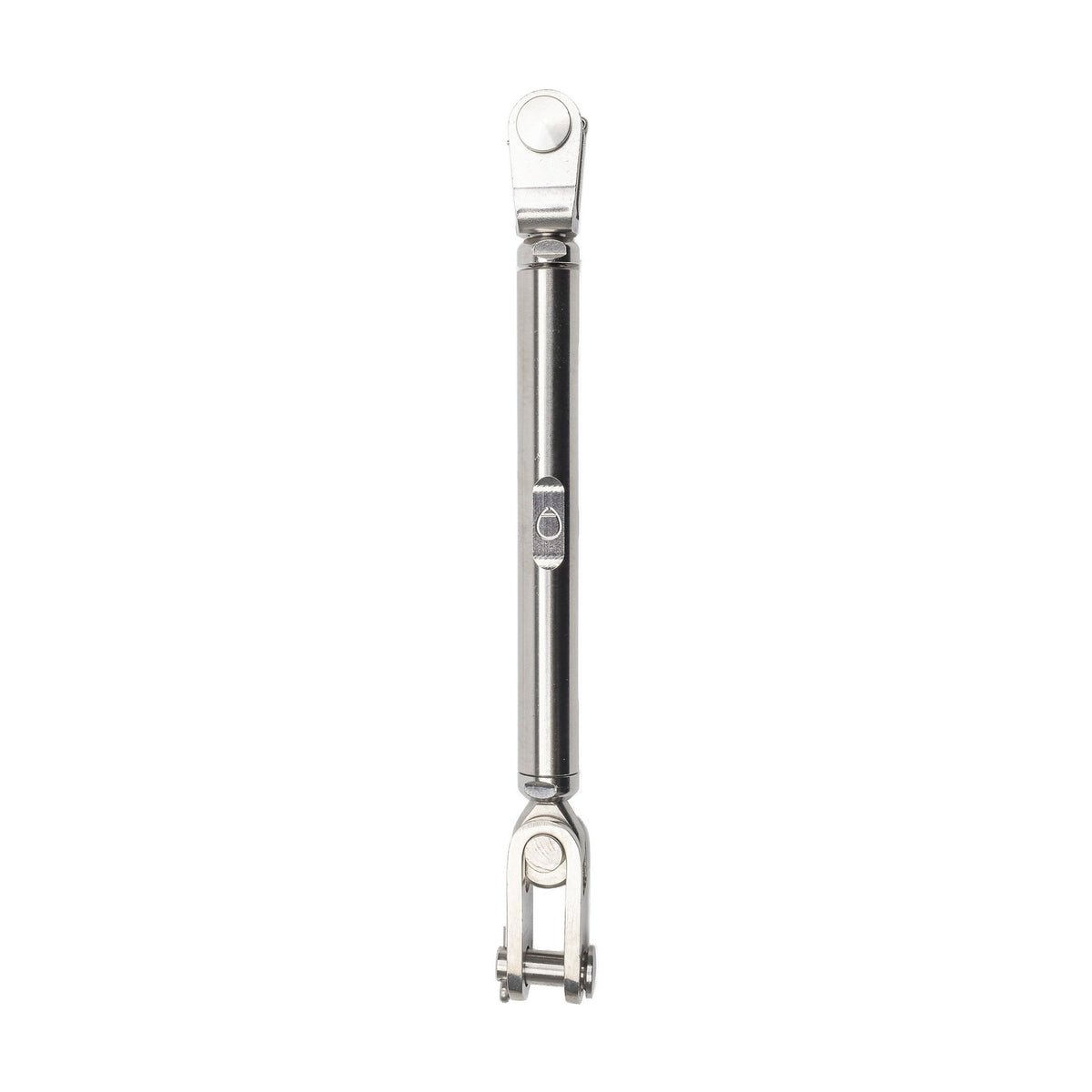

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 5/16" | 5/16" |
| Clevis pin Ø | 0.31 in | 8 mm |
| L MIN | 7.32 in | 186 mm |
| L MAX | 9.92 in | 252 mm |
| W | 0.35 in | 9 mm |
| H | 0.59 in | 15 mm |
| X | 0.63 in | 16 mm |
| W2 | 0.35 in | 9 mm |
| H2 | 0.71 in | 18 mm |
| X2 | 0.63 in | 16 mm |
| Breaking Load | 5,401.32 lb | 2,450 kg |
| Weight | 7.69 oz. | 218.00 g. |
| Clevis Pin | 0.31 in. | 8.00 mm. |
| L-MIN | 7.32 in. | 186.00 mm. |
| L-MAX | 9.92 in. | 252.00 mm. |
