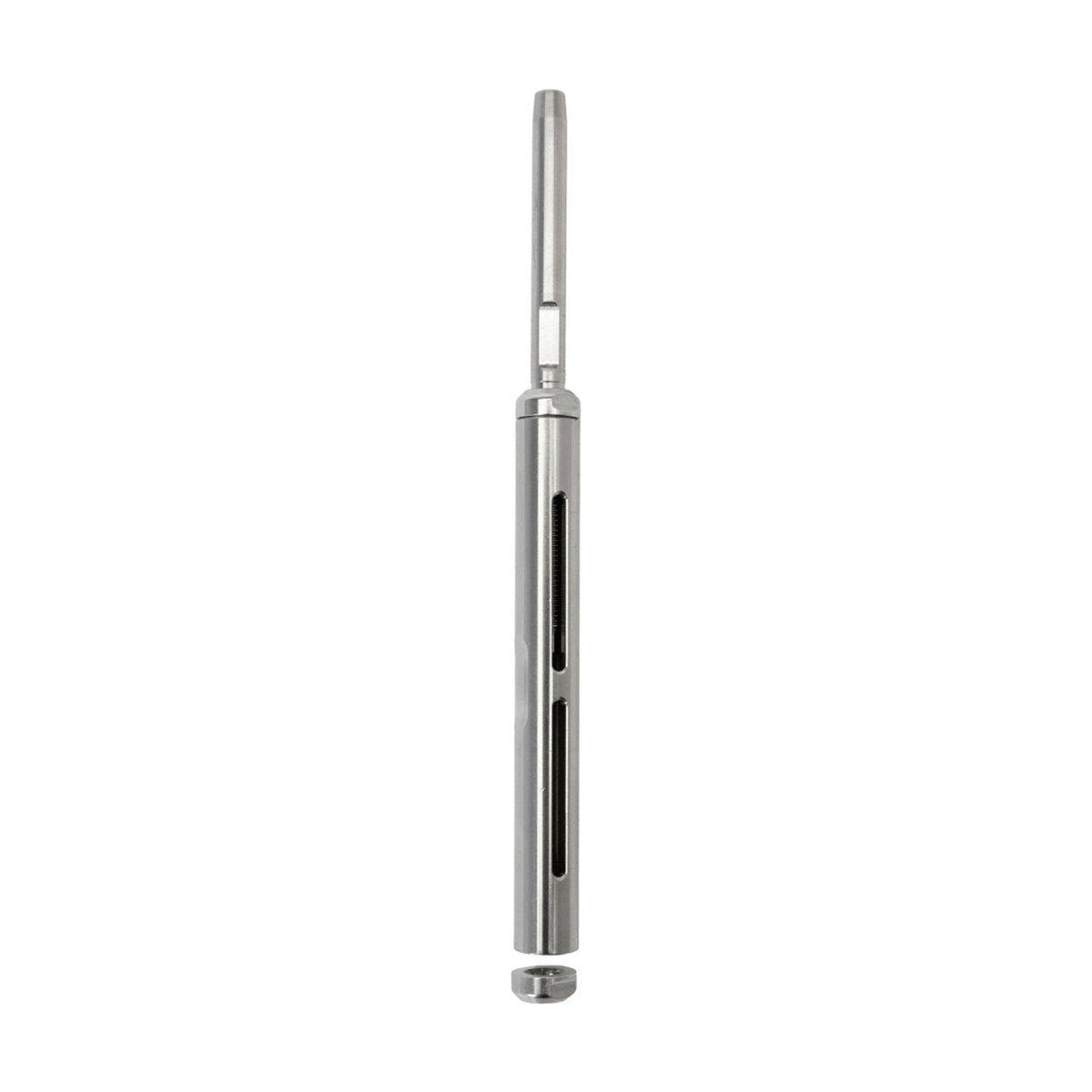

Selden RIGGING SCREW(STB) 5/16, OPEN/FRK PIN8
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.
This is the 5/16 in size, open at one end with a fork for an 8 mm pin at the other.
Seldén reference: RIGGING SCREW(STB) 5/16, OPEN/FRK PIN8.
Our Part # SEL174-961-70 | Mfr. Part # 174-961-70
FEATURES
FEATURES
- BodyType: STB.
- Thread size: 5/16".
- M MIN: 85 mm (3.35 in).
- M MAX: 118 mm (4.65 in).
- LR: 112 mm (4.41 in).
- T: 78 mm (3.07 in).
- W: 9 mm (0.35 in).
- H: 15 mm (0.59 in).
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| BodyType | STB | STB |
| Thread size | 5/16" | 5/16" |
| M MIN | 3.35 in | 85 mm |
| M MAX | 4.65 in | 118 mm |
| LR | 4.41 in | 112 mm |
| T | 3.07 in | 78 mm |
| W | 0.35 in | 9 mm |
| H | 0.59 in | 15 mm |
| X | 0.63 in | 16 mm |
| Pin diam | 0.31 in | 8 mm |
| Breaking Load | 5,401.32 lb | 2,450 kg |
| Weight | 5.22 oz. | 148.00 g. |
