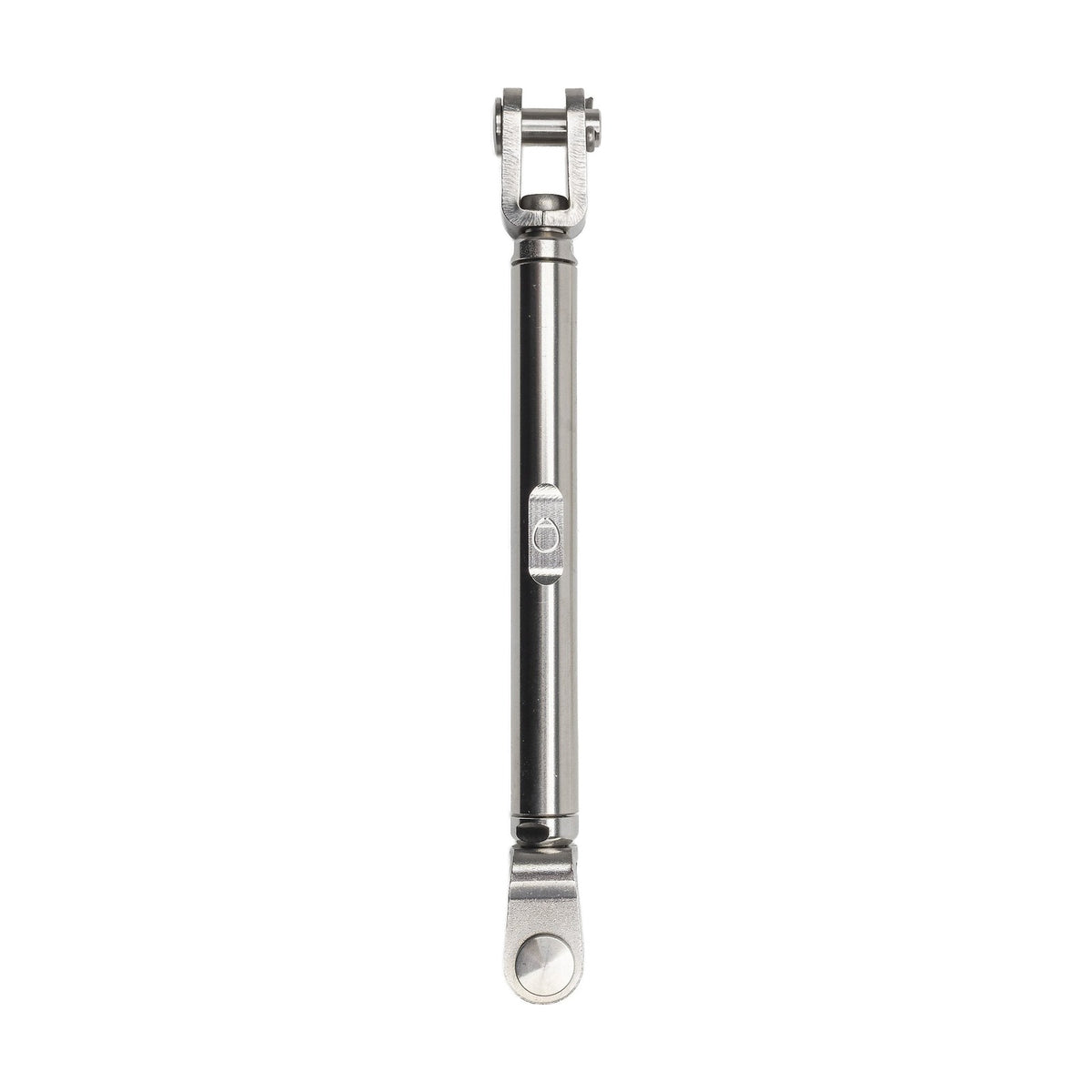

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 5/8" | 5/8" |
| Clevis pin Ø | 0.62 in | 15.7 mm |
| L MIN | 13.43 in | 341 mm |
| L MAX | 19.17 in | 487 mm |
| B MIN | 7.28 in | 185 mm |
| B MAX | 12.99 in | 330 mm |
| W | 0.71 in | 18 mm |
| H | 1.24 in | 31.5 mm |
| X | 1.34 in | 34 mm |
| Breaking Load | 21,340.72 lb | 9,680 kg |
| Sub-Type | STB | STB |
| Weight | 2.99 lb. | 1.35 kg. |
| Clevis Pin | 0.62 in. | 15.70 mm. |
| L-MIN | 13.43 in. | 341.00 mm. |
| L-MAX | 19.17 in. | 487.00 mm. |
