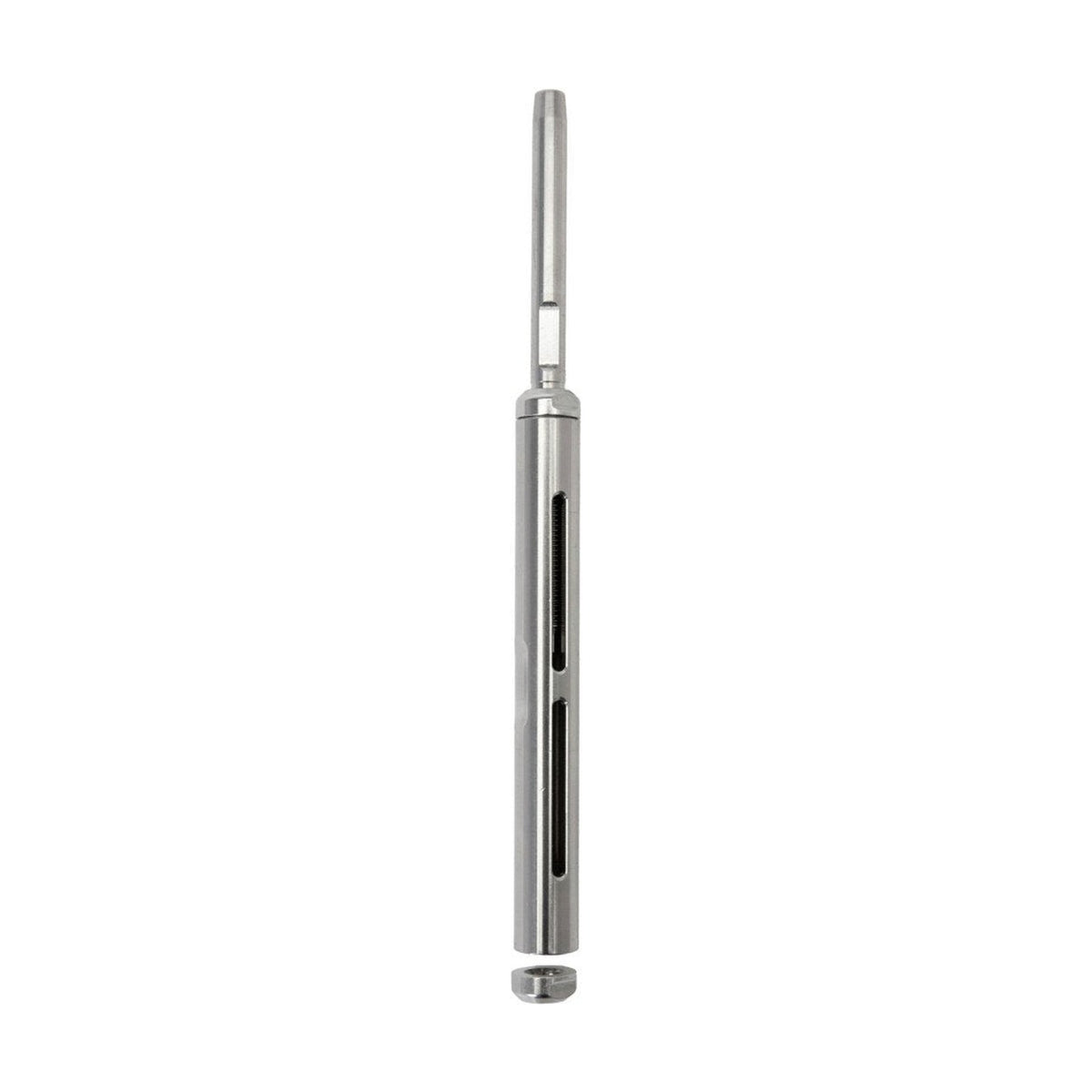

Selden RIGGING SCREW(STB) 5/8, OPEN/FRK PIN16

SKU: SEL174-965-70  |  Manuf. Code: 174-965-70
List Price:  $222.00 USD
$205.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 5/8 in size, open at one end with a fork for a 16 mm pin at the other.

Seldén reference: RIGGING SCREW(STB) 5/8, OPEN/FRK PIN16.

Our Part # SEL174-965-70 | Mfr. Part # 174-965-70

FEATURES

  • BodyType: STB.
  • Thread size: 5/8".
  • M MIN: 171 mm (6.73 in).
  • M MAX: 243 mm (9.57 in).
  • LR: 230 mm (9.06 in).
  • T: 156 mm (6.14 in).
  • W: 18 mm (0.71 in).
  • H: 31.5 mm (1.24 in).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size5/8"5/8"
M MIN6.73 in171 mm
M MAX9.57 in243 mm
LR9.06 in230 mm
T6.14 in156 mm
W0.71 in18 mm
H1.24 in31.5 mm
X1.34 in34 mm
Pin diam0.63 in16 mm
Breaking Load21,340.72 lb9,680 kg
Weight2.12 lb.960.00 g.
