Selden RIGGING SCREW(STB) 5/8, OPEN/ R14

SKU: SEL174-965-76  |  Manuf. Code: 174-965-76
List Price:  $222.00 USD
$205.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

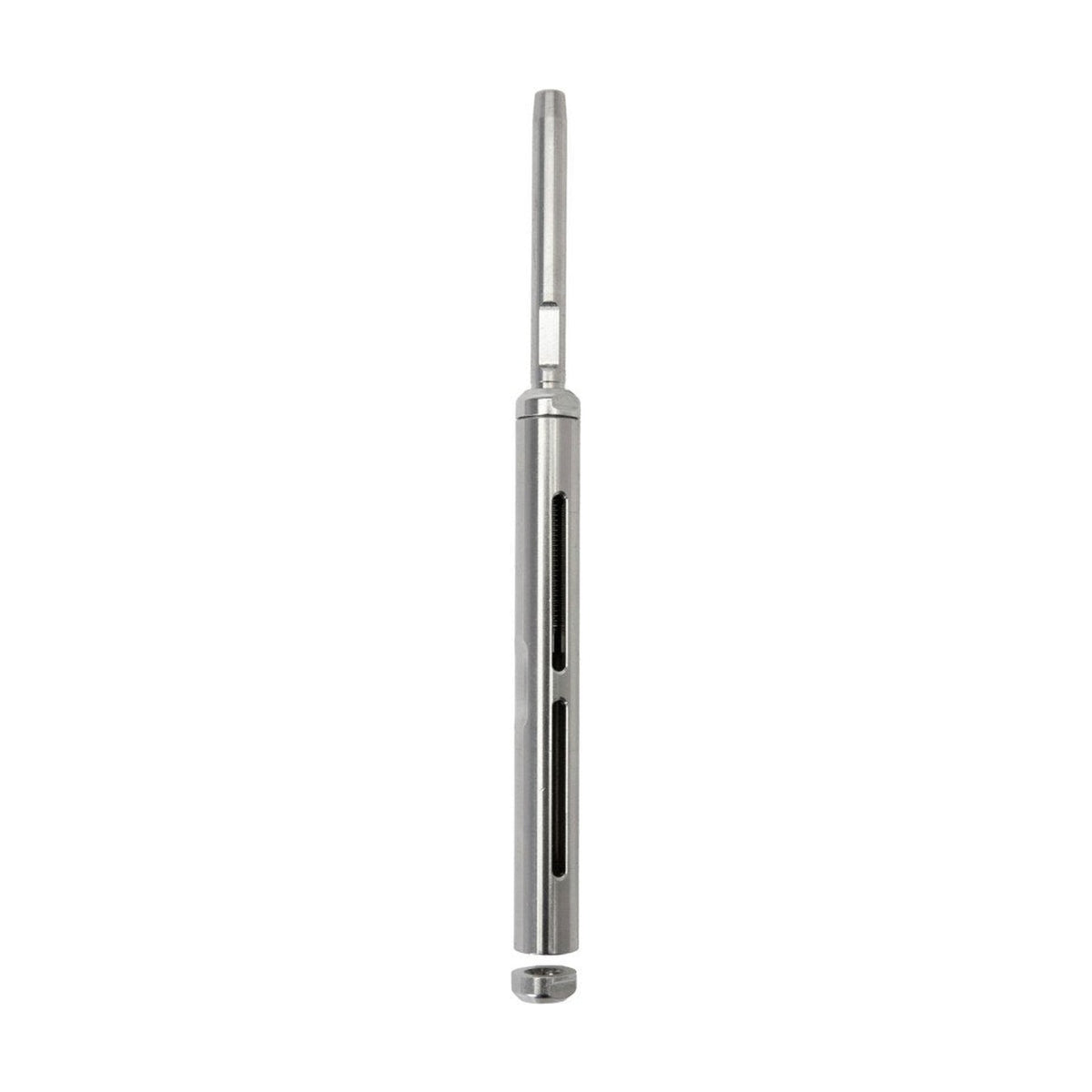

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 5/8 in size, open at one end with an R14 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 5/8, OPEN/ R14.

Our Part # SEL174-965-76 | Mfr. Part # 174-965-76

FEATURES

  • BodyType: STB.
  • Thread size: 5/8".
  • M MIN: 177 mm (6.97 in).
  • M MAX: 252 mm (9.92 in).
  • LR: 230 mm (9.06 in).
  • T: 165 mm (6.5 in).
  • Stemball size: 14 R.
  • Breaking Load: 9,680 kg (21,340.72 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size5/8"5/8"
M MIN6.97 in177 mm
M MAX9.92 in252 mm
LR9.06 in230 mm
T6.5 in165 mm
Stemball size14 R14 R
Breaking Load21,340.72 lb9,680 kg
Weight1.71 lb.775.00 g.
