Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

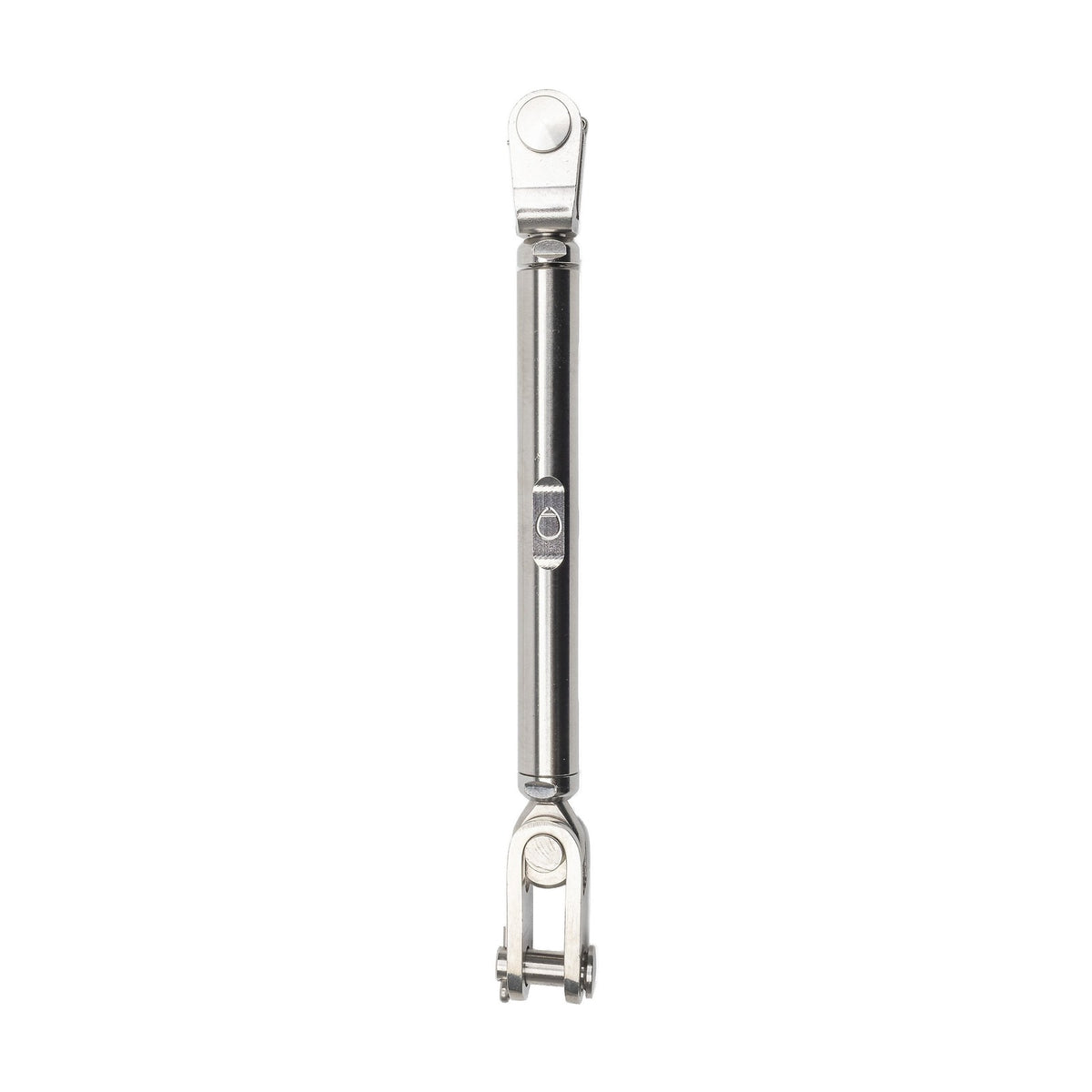

Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 7/16" | 7/16" |
| Clevis pin Ø | 0.43 in | 11 mm |
| L MIN | 10.63 in | 270 mm |
| L MAX | 14.72 in | 374 mm |
| W | 0.51 in | 13 mm |
| H | 0.83 in | 21 mm |
| X | 0.98 in | 25 mm |
| W2 | 0.49 in | 12.5 mm |
| H2 | 0.91 in | 23 mm |
| X2 | 0.98 in | 25 mm |
| Breaking Load | 11,111.28 lb | 5,040 kg |
| Weight | 1.26 lb. | 573.00 g. |
| Clevis Pin | 0.43 in. | 11.00 mm. |
| L-MIN | 10.63 in. | 270.00 mm. |
| L-MAX | 14.72 in. | 374.00 mm. |
