Selden RIGGING SCREW(STB) 7/16, OPEN/ R11

SKU: SEL174-963-76  |  Manuf. Code: 174-963-76
List Price:  $113.00 USD
$104.95 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

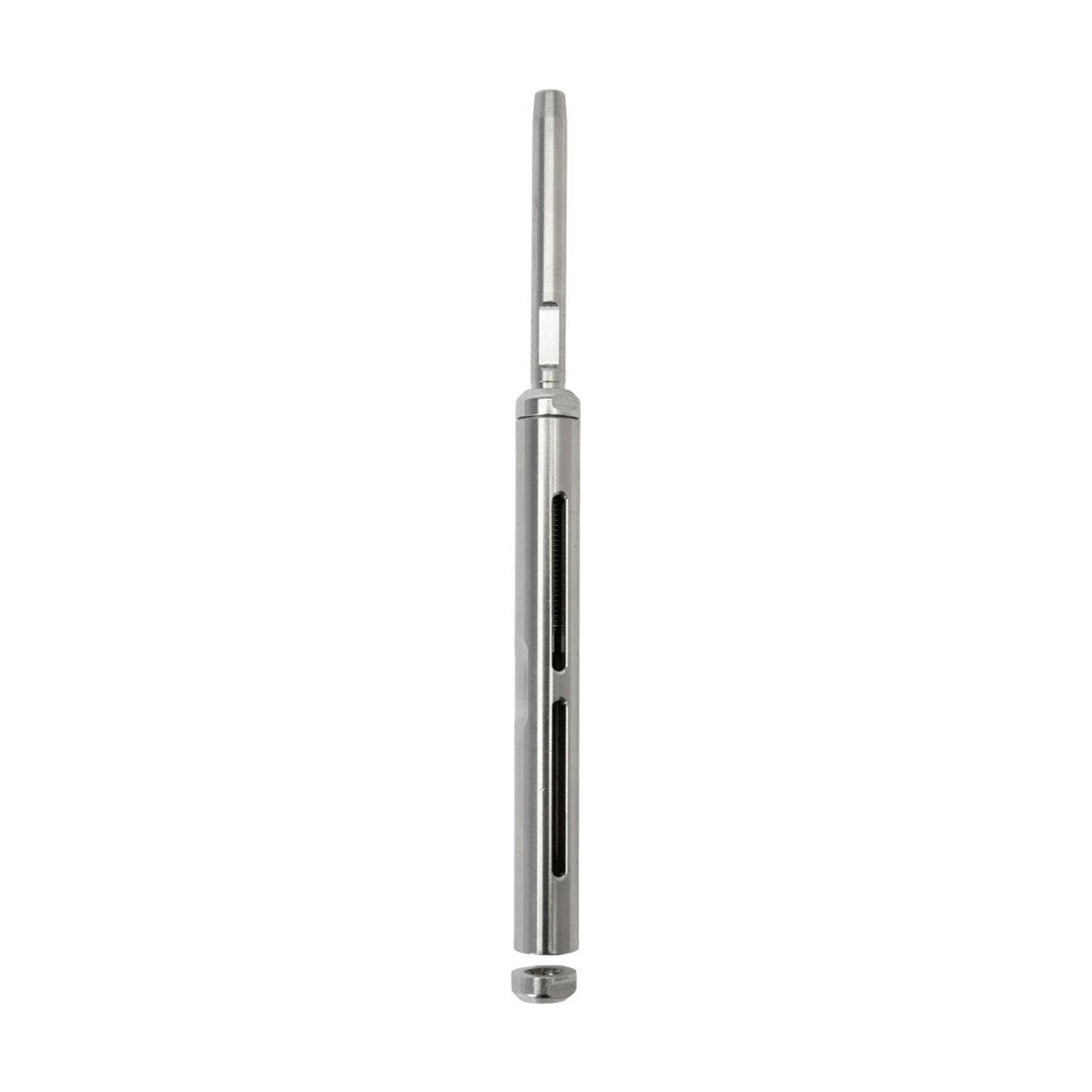

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 7/16 in size, open at one end with an R11 stemball socket at the other.

Seldén reference: RIGGING SCREW(STB) 7/16, OPEN/ R11.

Our Part # SEL174-963-76 | Mfr. Part # 174-963-76

FEATURES

  • BodyType: STB.
  • Thread size: 7/16".
  • M MIN: 139 mm (5.47 in).
  • M MAX: 193 mm (7.6 in).
  • LR: 170 mm (6.69 in).
  • T: 129 mm (5.08 in).
  • Stemball size: 11 R.
  • Breaking Load: 5,040 kg (11,111.28 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size7/16"7/16"
M MIN5.47 in139 mm
M MAX7.6 in193 mm
LR6.69 in170 mm
T5.08 in129 mm
Stemball size11 R11 R
Breaking Load11,111.28 lb5,040 kg
Weight11.01 oz.312.00 g.
