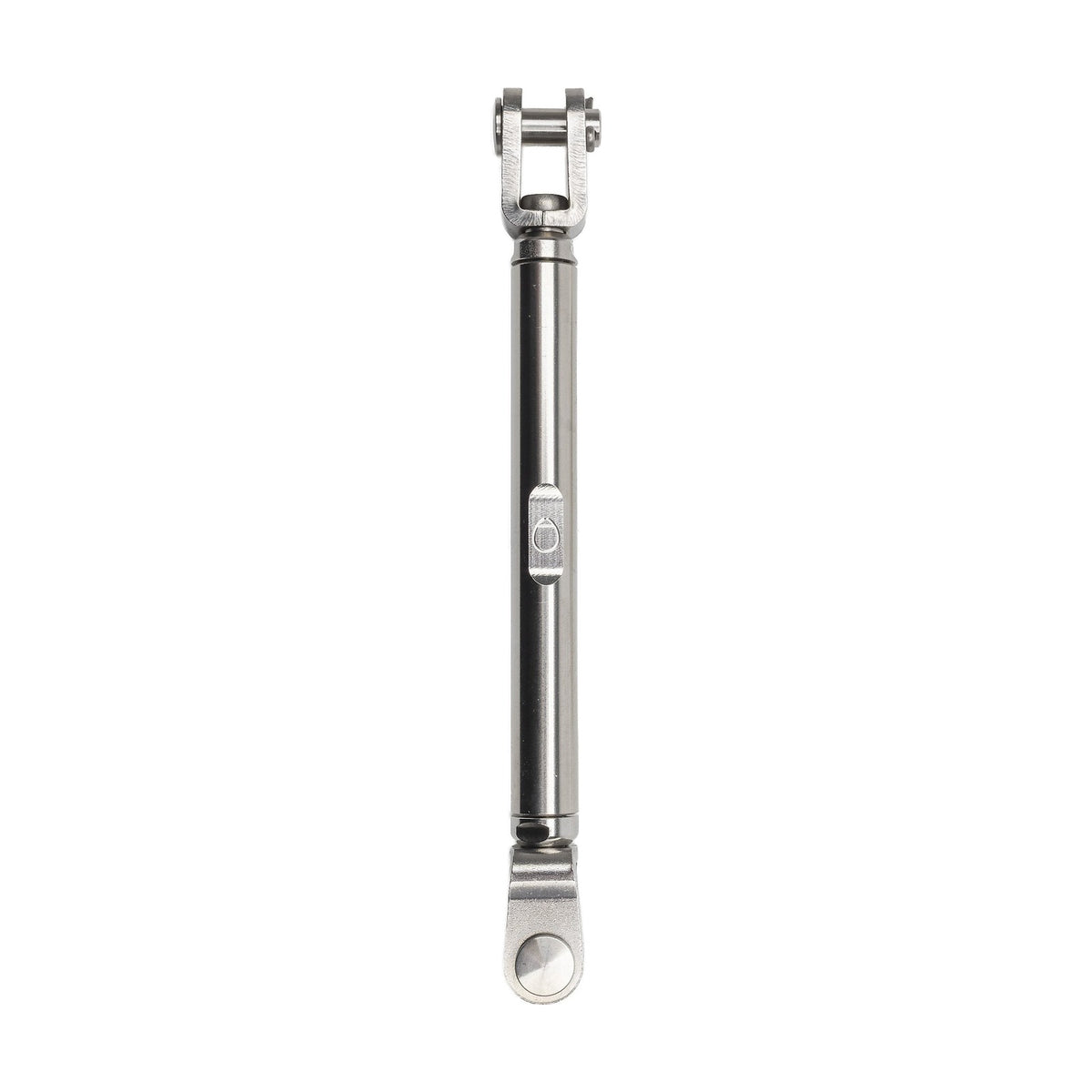

Selden Turnbuckle - StB - Stainless Body with Bronze Thread, Stainl...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Stainless & Bronze With its elegant and functional design, this turnbuckle is the natural choice for both new builds and rigging upgrades
FEATURES
FEATURES
- The body and terminals are made of acid-resistant stainless steel AISI 316, ensuring maximum durability in marine environments.
- A bronze thread insert reduces friction, providing smooth adjustment and long service life.
- The round body features a distinctive wrench grip for a firm hold with an adjustable spanner.
- Locking is handled with polished, rounded locknuts – a stylish and user-friendly solution that also protects sails and ropes from chafe.
- A slot on one side allows for easy measurement of the distance between terminals studs.
- Hint - when you are satisfied with your tuning, make a note of these distances to simplify next stepping of your mast.
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Description | Imperial | Metric |
|---|---|---|
| Thread size | 7/8" | 7/8" |
| Clevis pin Ø | 0.75 in | 19 mm |
| L MIN | 18.54 in | 471 mm |
| L MAX | 26.85 in | 682 mm |
| B MIN | 14.13 in | 359 mm |
| B MAX | 18.27 in | 464 mm |
| W | 0.87 in | 22 mm |
| H | 1.81 in | 46 mm |
| X | 1.97 in | 50 mm |
| Breaking Load | 41,468.9 lb | 18,810 kg |
| Sub-Type | STB | STB |
| Weight | 7.79 lb. | 3.53 kg. |
| Clevis Pin | 0.75 in. | 19.00 mm. |
| L-MIN | 18.54 in. | 471.00 mm. |
| L-MAX | 26.85 in. | 682.00 mm. |
