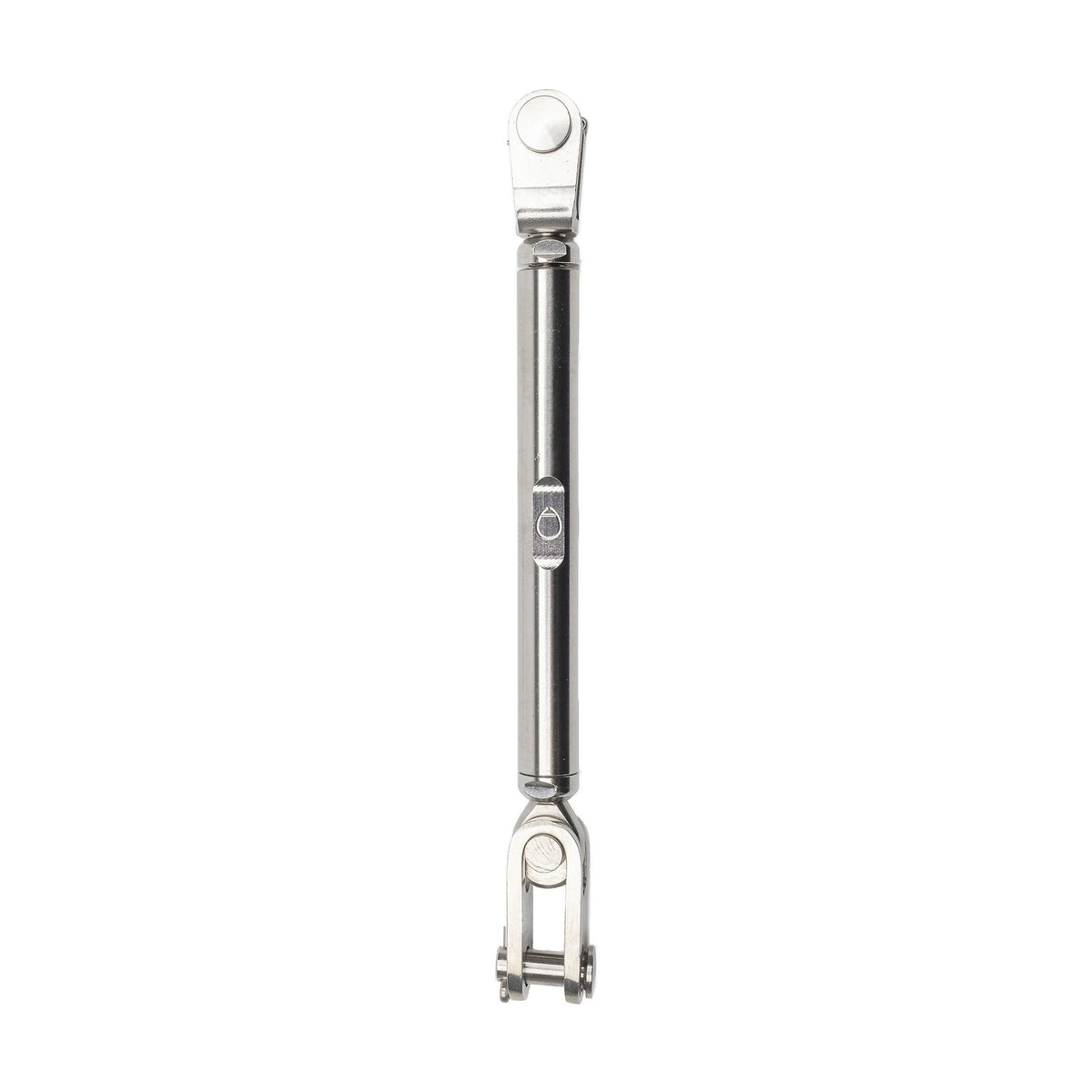

Selden RIGGING SCREW(STB) 7/8", OPEN/TGL PIN19

SKU: SEL174-967-73  |  Manuf. Code: 174-967-73
List Price:  $792.00 USD
$730.00 USD
You save $62 off List Price.
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 7/8 in size, open at one end with a toggle for a 19 mm pin at the other.

Seldén reference: RIGGING SCREW(STB) 7/8", OPEN/TGL PIN19.

Our Part # SEL174-967-73 | Mfr. Part # 174-967-73

FEATURES

  • BodyType: STB.
  • Thread size: 7/8".
  • LR: 320 mm (12.6 in).
  • Clevis pin ø: 19 mm (0.75 in).
  • W: 23 mm (0.91 in).
  • H: 54.5 mm (2.15 in).
  • X: 47 mm (1.85 in).
  • Breaking Load: 18,810 kg (41,468.9 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size7/8"7/8"
LR12.6 in320 mm
Clevis pin ø0.75 in19 mm
W0.91 in23 mm
H2.15 in54.5 mm
X1.85 in47 mm
Breaking Load41,468.9 lb18,810 kg
Weight6.41 lb.2.91 kg.
Clevis Pin0.75 in.19.00 mm.
