DESCRIPTION

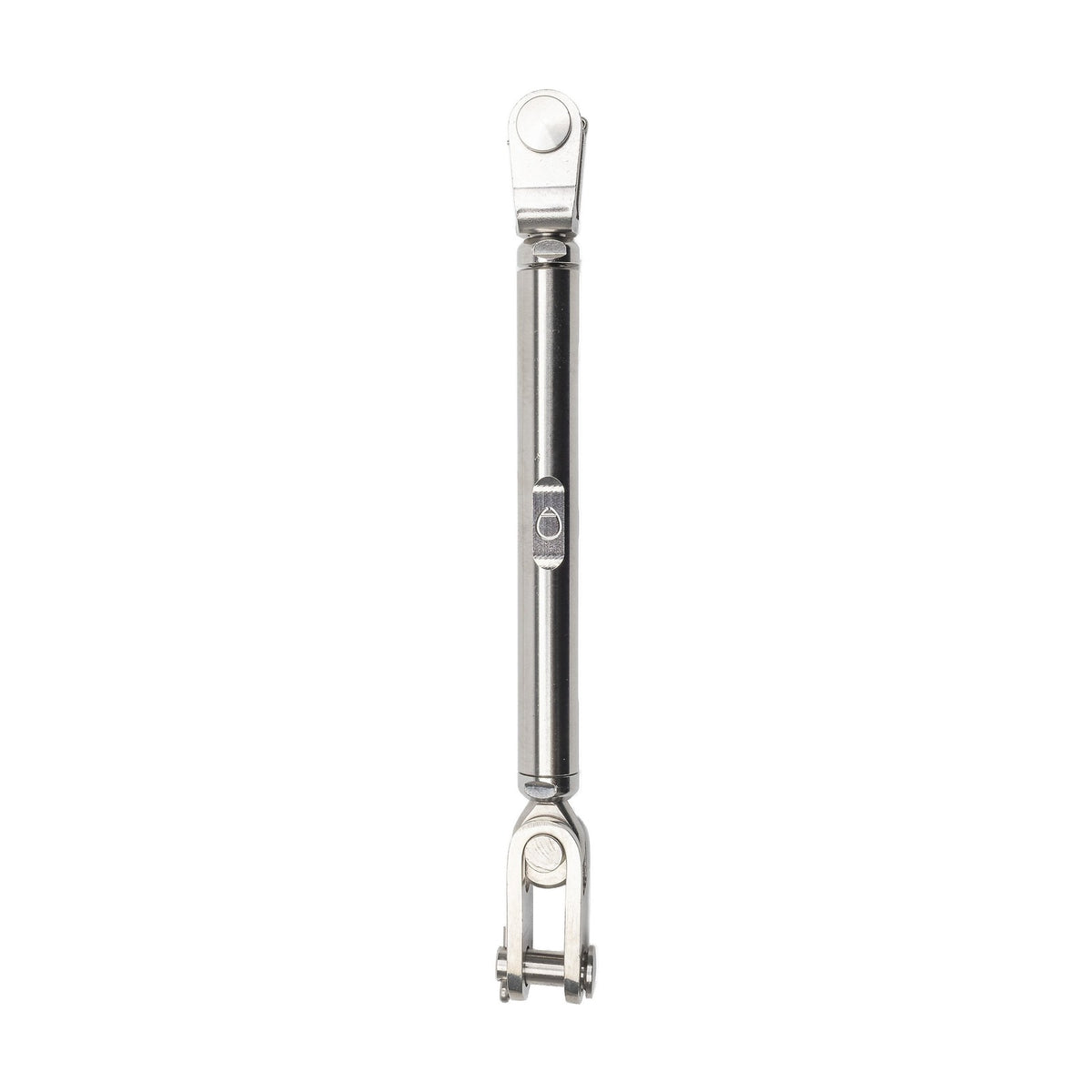

Seldén's StB rigging screw tensions and tunes standing rigging. Body and terminals are AISI 316 acid-resistant stainless steel, with a bronze thread insert for smooth adjustment and long service life. The round body takes an adjustable spanner and carries a measurement slot to check terminal distance, and the polished rounded locknuts will not chafe sails or ropes.

This is the 7/8 in size, open at one end with a toggle for a 22 mm pin at the other.

Seldén reference: RIGGING SCREW(STB) 7/8", OPEN/TGL PIN22.

Our Part # SEL174-967-74 | Mfr. Part # 174-967-74

FEATURES

  • BodyType: STB.
  • Thread size: 7/8".
  • LR: 320 mm (12.6 in).
  • Clevis pin ø: 22 mm (0.87 in).
  • W: 23 mm (0.91 in).
  • H: 54.5 mm (2.15 in).
  • X: 47 mm (1.85 in).
  • Breaking Load: 18,810 kg (41,468.9 lb).

TECHNICAL INFORMATION

DescriptionImperialMetric
BodyTypeSTBSTB
Thread size7/8"7/8"
LR12.6 in320 mm
Clevis pin ø0.87 in22 mm
W0.91 in23 mm
H2.15 in54.5 mm
X1.85 in47 mm
Breaking Load41,468.9 lb18,810 kg
Weight6.46 lb.2.93 kg.
Clevis Pin0.87 in.22.00 mm.
