Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain

SKU: shk-5230  |  Manuf. Code: 5230
$689.00 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

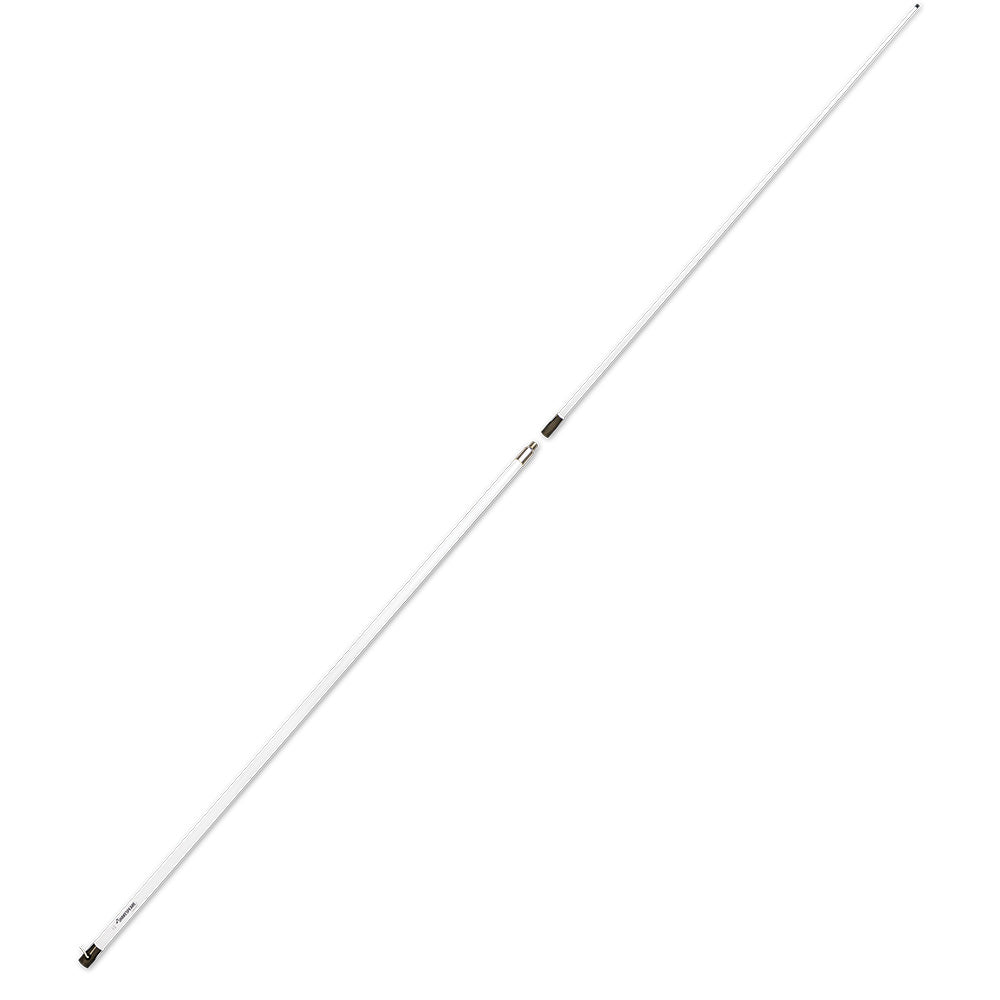

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

  • 5/8 wave over 1/2 wave dipole
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" -
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 8 dB
  • Max Input (Watts): 200 watts
  • DC Ground: YES
  • Height (feet): 14
  • Polarization: Vertical

Our Part # SHK-5230 | Mfr. Part # 5230

FEATURES

  • 5/8 wave over 1/2 wave dipole
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" -
  • Shakespeare Limited Warranty: 5 years

TECHNICAL INFORMATION

SpecificationValue
ManufacturerShakespeare
Manufacturer part number5230
Antenna BandVHF
ColorWhite
ConstructionFiberglass
Ferrule TypeStainless Steel
Length (Inches)168"
Suggested mountShakespeare Style 409-R or 410-R Mounting Kit
Two sectionsBase 94", Tip 74" -
Shakespeare Limited Warranty5 years
FrequencyVHF Marine Band
Bandwidth3 MHz within 2.0:1 VSWR
SWRNominally 1.5:1 at 156.8 MHz
Impedance50 ohms
Gain8 dB
Max Input (Watts)200 watts
DC GroundYES
Height (feet)14
PolarizationVertical
Supplier material detailStainless steel ferrule with standard 1"-14 thread
Supplier application or construction detailIncludes 20 feet of RG-8/X cable and a PL-259 connector
Size or rating stated in product name14'
Product-name configuration8dB Gain
