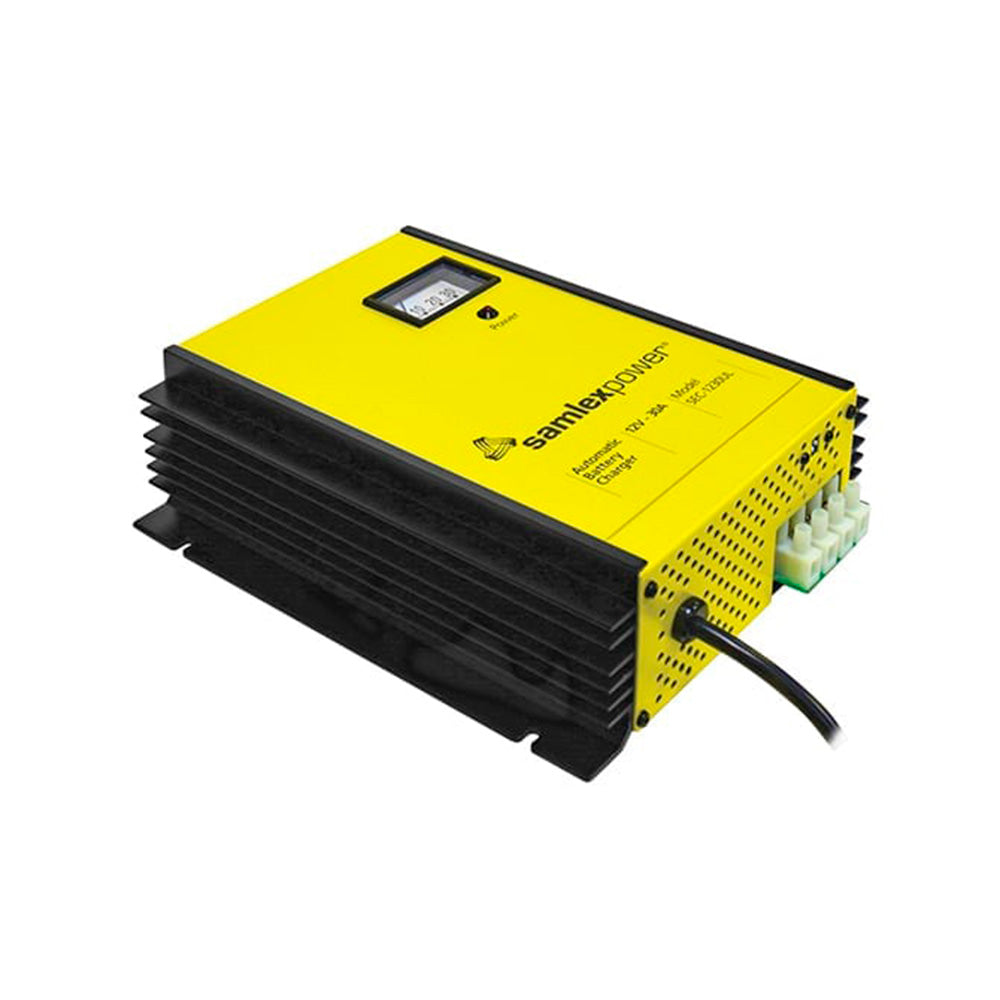

Samlex Chargers - Battery Charger with Dip Switch & Lugs 3 Bank - 12V - 30 Amp (SEC-1230UL)
Samlex Chargers - Battery Charger with Dip Switch & Lugs 3 Bank - 12V - 30 Amp (SEC-1230UL) is backordered and will ship as soon as it is back in stock.
Worldwide Shipping Avalailable
Knowledgeable STAFF
Samlex Chargers - Battery Charger with Dip Switch & Lugs 3 Bank...
Description
Description
This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 VAC, 50/60 Hz (default) or 230 VAC, 50/60 Hz (internal jumper setting) AC source. User selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries. The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up to 3 separate battery banks.
Our Part # SMX-SEC-1230UL | Samlex America Part # SEC-1230UL
Features
Features
- High efficiency.
- Commercial Grade.
- Lightweight.
- Quiet operation.
- Industry Proven Design trusted by professionals for over 30 years.
- User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries.
- 120 VAC, 50/60 HZ (default) or 230 VAC, 50/60 Hz (internal jumper setting).
- Voltage meter display - Ammeter and LED power status.
- For all types of Lead Acid batteries.
- Charge with a battery load or stand alone.
- Use as a power supply or DC UPS.
- UPC: Universal Protection Circuit - short circuit, overload, reverse battery polarity.
- Charge 3 banks of batteries at once - no isolator necessary.
Technical Information
Technical Information
| Description | Imperial | Metric |
|---|---|---|
| Input | 120 VAC, 50/60 Hz (default) or 230 VAC 50/60 Hz (internal jumper setting) | |
| Output | 12 VDC | |
| Amps | 30 A | |
| Weight | 6.40 lb.. | 2.90 kg.. |
| Dimensions | 11.00 x 8.40 x 3.30 in.. | 28.00 x 21.40 x 8.30 cm. |
