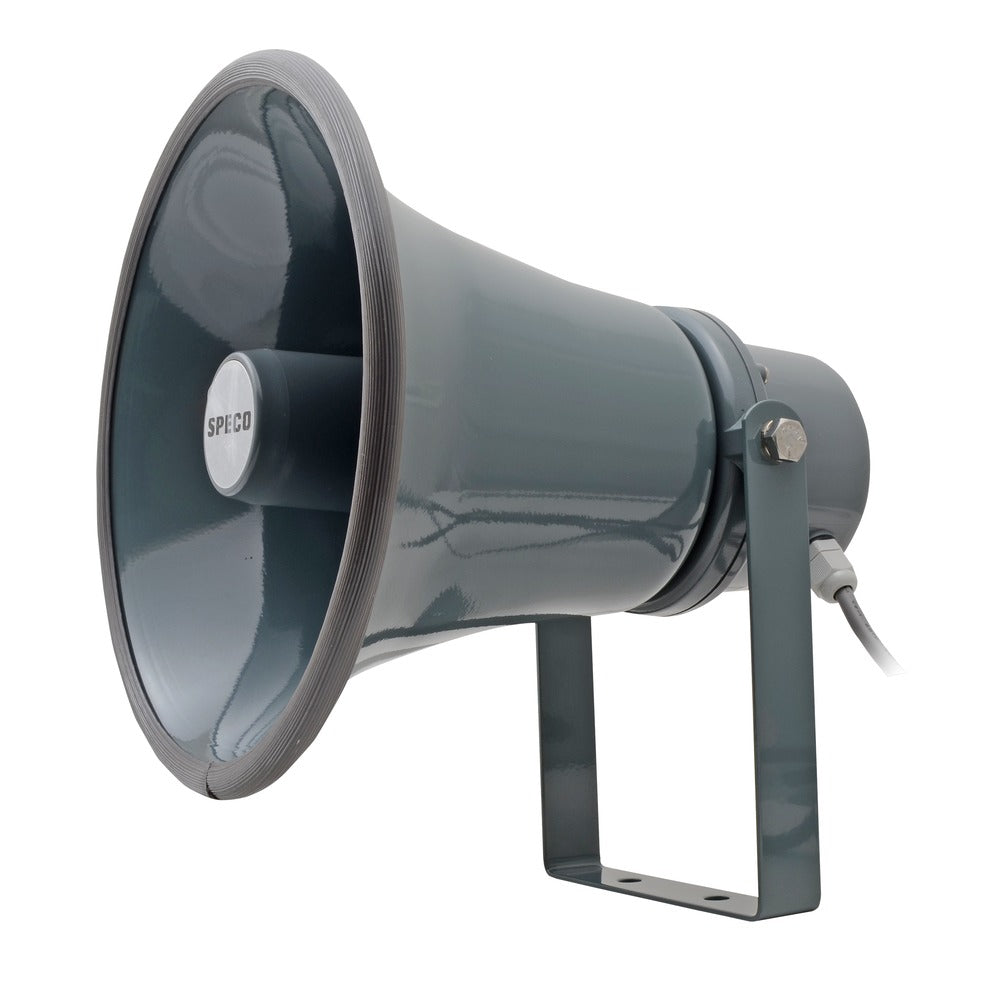

8.5" Weatherproof PA Speaker with Transformer
Features:
- Weather-resistant, aluminum construction
- Includes mounting bracket
- Rubber bell protector
- Selectable 70/25V transformer dial
- 2-year warranty
Specifications:
- RMS Power: 15W
- Max. Power: 30W
- Transformer Type: 70/25V
- Transformer Power Taps: 70V: 15W, 10W, 5W, 3W, 1W
- 25V: 15W, 10W, 3.7W, 1.9W, 1.3W, 0.6W, 0.4W, 0.1W
- Termination Type: Wire
- Sensitivity (1W/1M) 105dB
- Maximum SPL (Pmax/1m) 117dB
- Driver Impedance: 8 Ohms
- Magnet 4.9 oz. ferrite
- Frequency Response Range 450Hz - 15kHz
- Dispersion@100Hz 75' conical
- Speaker Dimensions: 8.5" (Dia.) x 9" (D)
- Weight: 3.2 lbs.
- Material: Aluminum
- Color: Grey
Mfr. Part # SPC15T
FEATURES
FEATURES
- Weather-resistant, aluminum construction
- Includes mounting bracket
- Rubber bell protector
- Selectable 70/25V transformer dial
- 2-year warranty
- RMS Power: 15W
- Max. Power: 30W
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Speco Tech |
| Manufacturer part number | SPC15T |
| Impedance | 8 OHM |
| Power - Output (Watts) | 15w |
| Shape | Round |
| RMS Power | 15W |
| Max. Power | 30W |
| Transformer Type | 70/25V |
| Transformer Power Taps | 70V: 15W, 10W, 5W, 3W, 1W |
| Termination Type | Wire |
| Driver Impedance | 8 Ohms |
| Speaker Dimensions | 8.5" (Dia.) x 9" (D) |
| Weight | 3.2 lbs. |
| Material | Aluminum |
| Color | Grey |
| Supplier dimension detail | 8.5" Weatherproof PA Speaker with Transformer |
| Supplier technical detail | 8.5" Weatherproof PA Speaker with Transformer |
| Supplier technical detail | Weather-resistant, aluminum construction |
| Supplier application or construction detail | Includes mounting bracket |
| Supplier technical detail | Includes mounting bracket |
| Supplier technical detail | Selectable 70/25V transformer dial |
| Supplier technical detail | Transformer Type: 70/25V |
| Supplier technical detail | Transformer Power Taps: 70V: 15W, 10W, 5W, 3W, 1W |
| Supplier technical detail | 25V: 15W, 10W, 3.7W, 1.9W, 1.3W, 0.6W, 0.4W, 0.1W |
| Supplier technical detail | Sensitivity (1W/1M) 105dB |
| Supplier technical detail | Speaker Dimensions: 8.5" (Dia.) x 9" (D) |
| Supplier technical detail | Material: Aluminum |
| Size or rating stated in product name | 8.5" |
