Scanstrut Roam Series 125V 30A AC Power Inlet
DESCRIPTION
DESCRIPTION

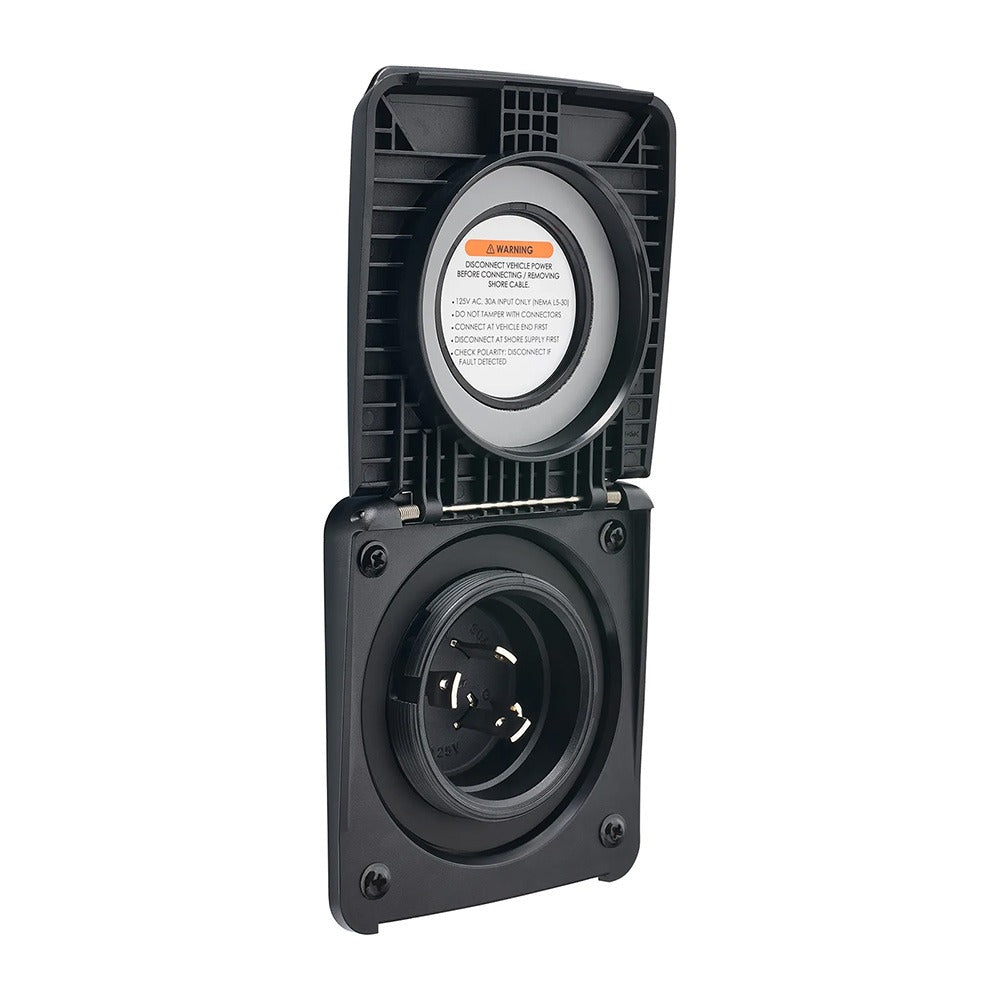

Roam Series 125V 30A AC Power Inlet
The Roam Series 125V 30A AC Power Inlet provides a secure, weatherproof connection to campsite or shore power wherever your adventures take you. Built for demanding outdoor environments, it features an IP68/IP69K waterproof rating to protect against dust, rain, washdowns, and harsh conditions. Compatible with Marinco, Hubbell, and Mennekes connectors, it works with most shore power cables on the market.
A fully sprung lid provides a dependable waterproof seal while allowing quick and easy connection. Engineered with Scanstrut marine-grade expertise, the inlet is rigorously tested for UV resistance and waterproof performance (IP68/IP69K) and finished with marine-grade 316 stainless steel hardware for exceptional durability.
Installation is simple thanks to a rear cover that can be rotated into three positions, allowing the cable to exit at a fixed 90° angle, downward, left, or right, with integrated strain relief. Compatible with both flat and round cables, its slim 77 mm installation depth offers greater flexibility, particularly where space is limited.
The Roam Series brings a clean, consistent look across your exterior sockets, including gas, water, power, and more, delivering the perfect finishing touch to your adventure-ready build.
Features:
- Slimline, shallow-profile design for tight spaces
- Three-position rear cover for flexible cable routing
- Compatible with flat and round cables
- Integrated strain relief bracket
- Compatible with NEMA L5-30 locking connectors
- Built-in wire strip gauge for accurate wire preparation
- Compatible with Marinco, Hubbell, and Mennekes connectors
- Compatible with standard lock rings and most popular quick-lock rings
- Compatible with standard US campground power systems
- Marine-grade 316 stainless steel hardware
- Nickel-plated brass terminals
- Waterproof rating: IP68/IP69K (front with lid closed); IP44 when connected
- Includes mounting foam gasket
- Fully sprung lid with 90° hold-open feature
Electrical:
- Connection Type: NEMA L5-30P
- Compatible Connection: NEMA L5-30R
- Voltage Rating: 125V AC
- Current Rating: 30A
- Frequency Range: 60Hz
- Connection Pins: Nickel-Plated Brass Screw Terminals
- Suitable Cable Size: 10AWG Flexible Stranded Triplex Type Only
- Waterproof Rating: IP68, IP69K Front only when lid closed
- Certification: UL, ROHS
Mfr. Part # SC-R-P2
FEATURES
FEATURES
- Slimline, shallow-profile design for tight spaces
- Three-position rear cover for flexible cable routing
- Compatible with flat and round cables
- Integrated strain relief bracket
- Compatible with NEMA L5-30 locking connectors
- Built-in wire strip gauge for accurate wire preparation
- Compatible with Marinco, Hubbell, and Mennekes connectors
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Scanstrut |
| Manufacturer part number | SC-R-P2 |
| Waterproof rating | IP68/IP69K (front with lid closed); IP44 when connected |
| Connection Type | NEMA L5-30P |
| Compatible Connection | NEMA L5-30R |
| Voltage Rating | 125V AC |
| Current Rating | 30A |
| Frequency Range | 60Hz |
| Connection Pins | Nickel-Plated Brass Screw Terminals |
| Suitable Cable Size | 10AWG Flexible Stranded Triplex Type Only |
| Waterproof Rating | IP68, IP69K Front only when lid closed |
| Certification | UL, ROHS |
| Supplier technical detail | Roam Series 125V 30A AC Power Inlet |
| Supplier technical detail | The Roam Series 125V 30A AC Power Inlet provides a secure, weatherproof connection to campsite or shore power wherever your adventures take you. |
| Supplier technical detail | Compatible with Marinco, Hubbell, and Mennekes connectors, it works with most shore power cables on the market. |
| Supplier technical detail | Engineered with Scanstrut marine-grade expertise, the inlet is rigorously tested for UV resistance and waterproof performance (IP68/IP69K) and finished with marine-grade 316 stainless steel hardware for exceptional durability. |
| Supplier technical detail | Compatible with both flat and round cables, its slim 77 mm installation depth offers greater flexibility, particularly where space is limited. |
| Supplier application or construction detail | Compatible with flat and round cables |
| Supplier technical detail | Compatible with flat and round cables |
| Supplier application or construction detail | Compatible with NEMA L5-30 locking connectors |
| Supplier technical detail | Compatible with NEMA L5-30 locking connectors |
| Supplier application or construction detail | Compatible with Marinco, Hubbell, and Mennekes connectors |
| Supplier technical detail | Compatible with Marinco, Hubbell, and Mennekes connectors |
| Supplier application or construction detail | Compatible with standard lock rings and most popular quick-lock rings |
| Supplier technical detail | Compatible with standard lock rings and most popular quick-lock rings |
| Supplier application or construction detail | Compatible with standard US campground power systems |
| Supplier technical detail | Compatible with standard US campground power systems |
| Supplier material detail | Marine-grade 316 stainless steel hardware |
| Supplier technical detail | Marine-grade 316 stainless steel hardware |
| Supplier application or construction detail | Includes mounting foam gasket |
| Supplier technical detail | Includes mounting foam gasket |
| Supplier technical detail | Compatible Connection: NEMA L5-30R |
| Supplier technical detail | Voltage Rating: 125V AC |
| Supplier technical detail | Current Rating: 30A |
| Supplier technical detail | Suitable Cable Size: 10AWG Flexible Stranded Triplex Type Only |
